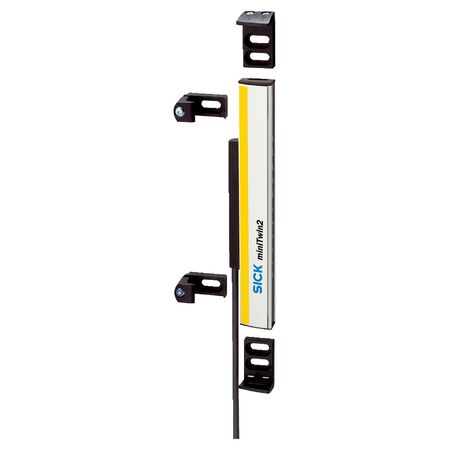

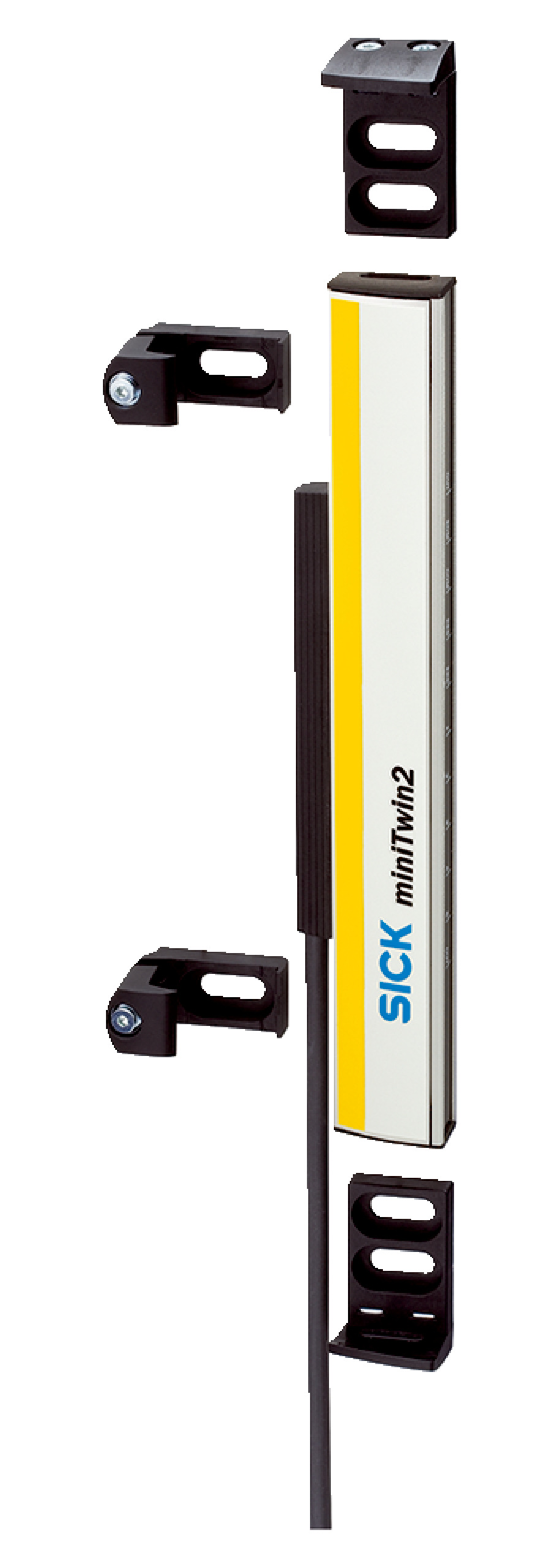

Safety Light Curtain Twin-Stick | 14 mm Resolution | 8 m Scanning Range | IP65 Rated | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial safety, featuring a 14 mm resolution and a scanning range of up to 8 m. Ideal for protecting personnel in hazardous areas, this system can operate standalone or in cascades with 2-3 devices. With a response time of ≤ 17 ms and optical synchronization, it ensures reliable safety in manufacturing and production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: Standalone or cascade with 2-3 devices
- Mounting system type: C-fix or L-fix bracket
- Resolution: 14 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 1,140 mm
- Response time: ≤ 17 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- Output signal: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Protection class: III (EN 61140)
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 1140mm x 32mm x 15mm
- Weight: 0.4 kg
Key Features
- Twin-Stick system part for flexible safety solutions
- MiniTwin2 usable as standalone or in 2- or 3-device cascades
- Mounting options with C-fix or L-fix brackets
- Resolution of 14 mm with scanning range up to 8 m
- Protective field height of 1,140 mm
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient electronics
- Durable aluminum alloy housing reduces material waste
- Long service life reduces replacement frequency
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C2MT-11414BBC03FE0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
