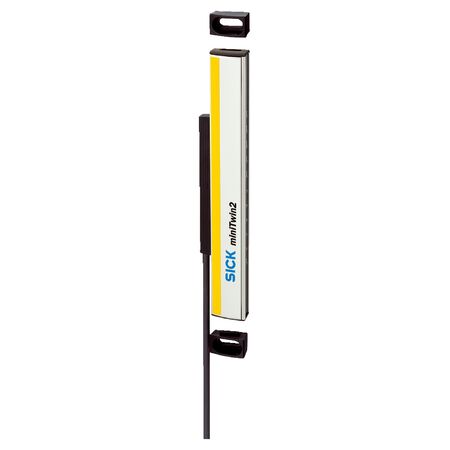

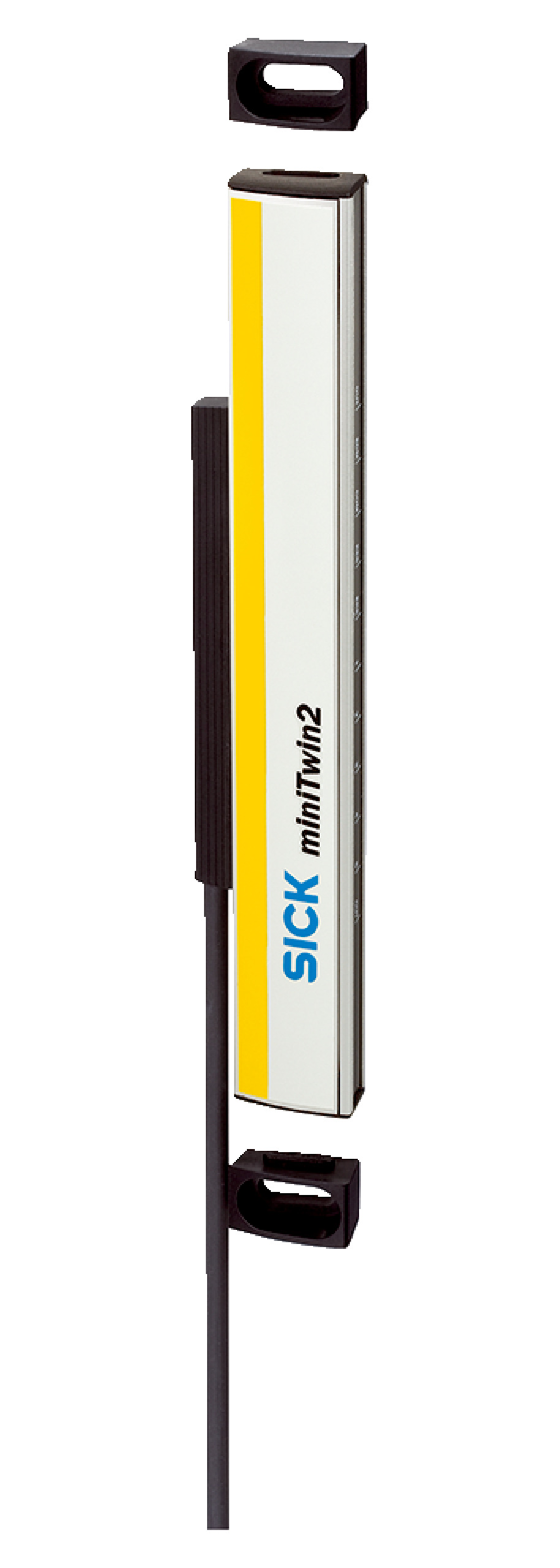

Safety Light Curtain Twin-Stick | 14 mm Resolution | 960 mm Protective Field Height | IP65 Rated | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial automation safety, featuring a 14 mm resolution and a protective field height of 960 mm. With a scanning range of up to 8 m and a fast response time of ≤ 17 ms, it ensures reliable machine safeguarding and access protection in manufacturing environments. Built for durability with an IP65 rated enclosure, this safety device is perfect for enhancing workplace safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Protective field height: 960 mm
- Scanning range typical: 0 m to 8 m
- Response time: ≤ 17 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8 (EN ISO 13849)
- Mission time: 20 years
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 340 g
- Dimensions (H x L x W): 960mm x 32mm x 15mm
- Weight: 0.34 kg
Key Features
- Twin-Stick system part for miniTwin2 standalone use
- O-fix bracket mounting system
- 14 mm resolution with 960 mm protective field height
- Scanning range typical 0 m to 8 m
- Response time ≤ 17 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection with 700 mm cable
- LED display elements for status indication
- Protection class III
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- Operating temperature range -20 °C to +55 °C
- IP65 rated enclosure for dust and water protection
- Shock resistance 15 g / 6 ms and vibration resistance 5-150 Hz
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial automation safety
- Machine safeguarding
- Access protection in manufacturing environments
- MiniTwin2 standalone safety device applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum alloy housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C2MT-09614BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
