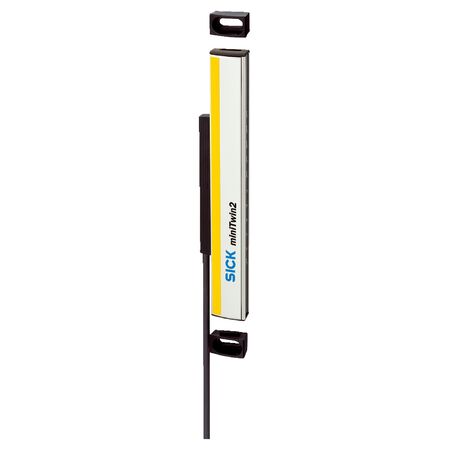

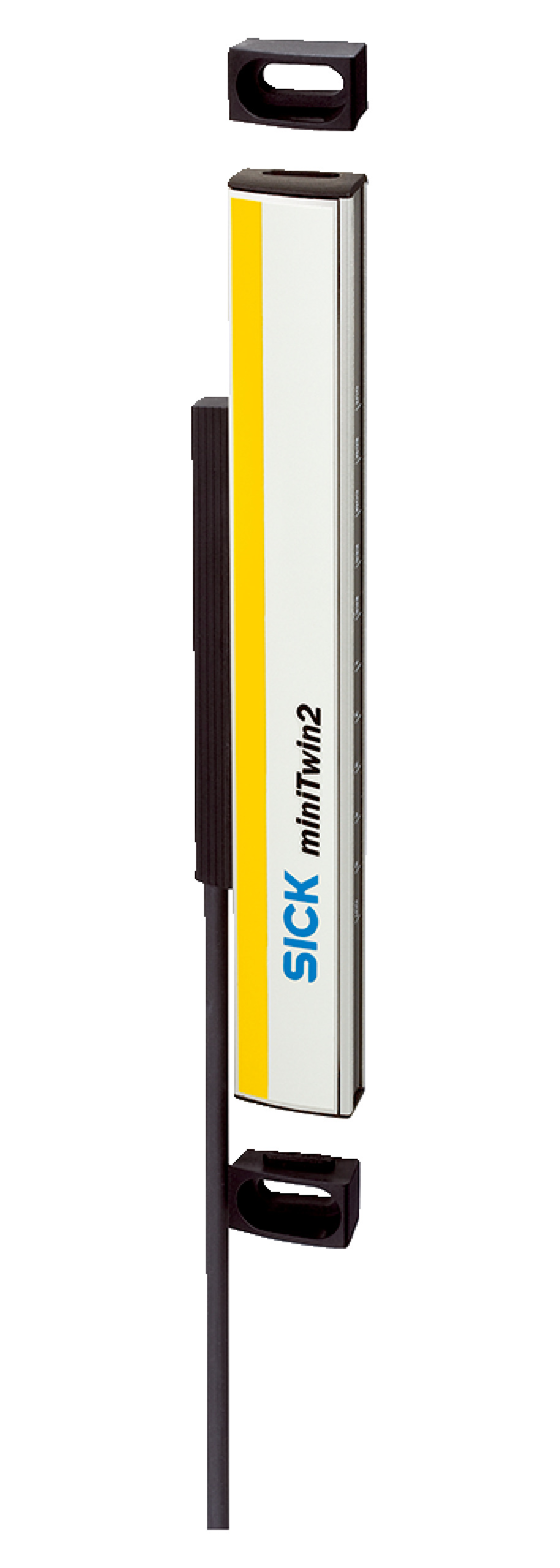

Safety Light Curtain Twin-Stick | 24 mm Resolution | 660 mm Protective Field Height | Optical Synchronization | by SICK
The Safety Light Curtain Twin-Stick is designed for industrial safety applications, featuring a 24 mm resolution and a protective field height of 660 mm. With a scanning range of up to 8 m and a rapid response time of ≤ 13 ms, it ensures reliable presence detection and machine safeguarding. Built for durability with an IP65 rating, this safety device is perfect for automation systems and access control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 24 mm
- Protective field height: 660 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- Test rate: 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC ... VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Supply voltage: 24 V DC (19.2 V DC ... 28.8 V DC)
- Power consumption: ≤ 3 A
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Cable length: 700 mm
- Permitted cable length: ≤ 20 m
- Wave length: 850 nm
- Dimensions (H x L x W): 660mm x 32mm x 15mm
- Weight: 0.235 kg
Key Features
- Twin-Stick system part for miniTwin2 standalone device
- O-fix bracket mounting system
- 24 mm resolution with protective field height of 660 mm
- Scanning range typical 0 m to 8 m
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety applications requiring presence detection
- Machine safeguarding and access control
- Automation systems requiring optical safety devices
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum alloy housing extends product life reducing waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C2MT-06624BBC03FB0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
