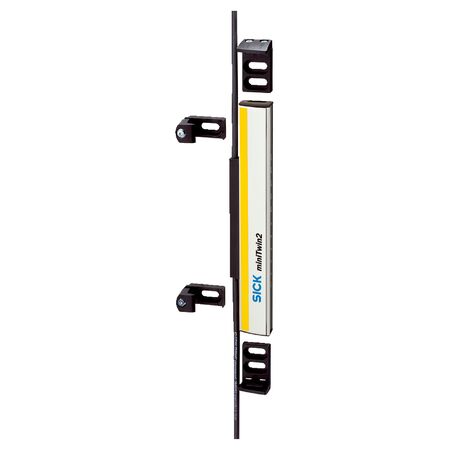

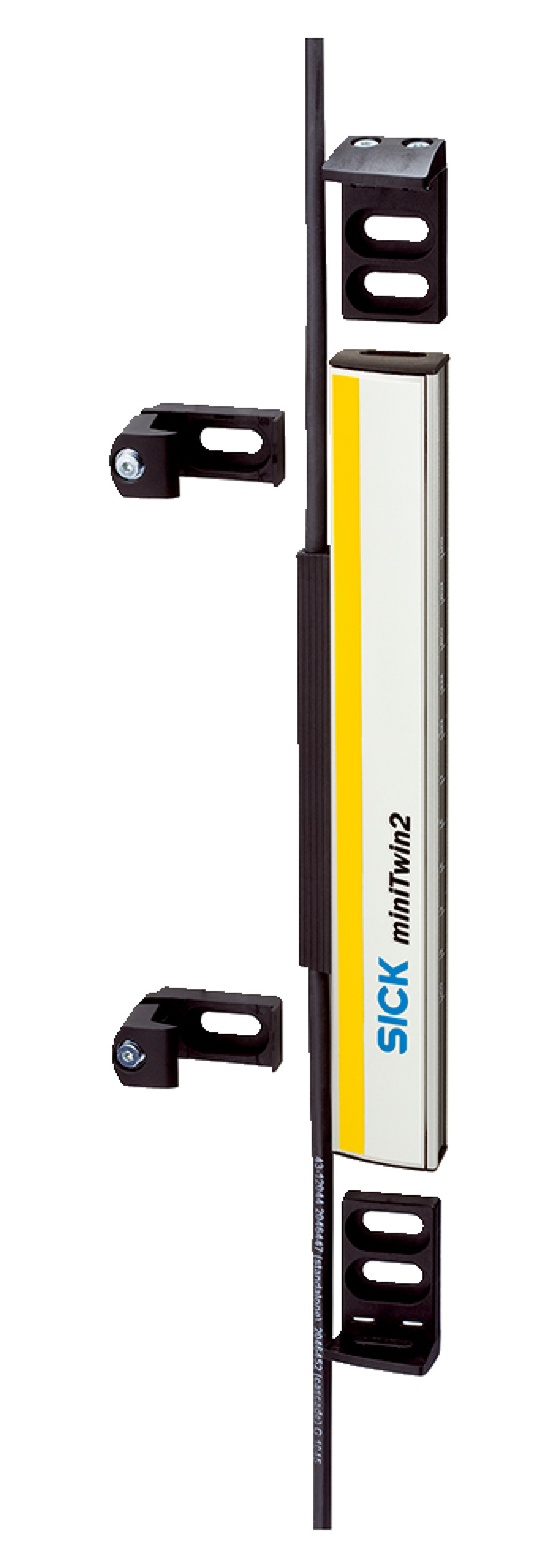

Safety Light Curtain C2MT-06634BBC04FE0 | Twin-Stick System | 34 mm Resolution | IP65 Rated | by SICK
The Safety Light Curtain C2MT-06634BBC04FE0 features a Twin-Stick system for flexible cascade configurations, ensuring precise detection with a 34 mm resolution. Ideal for industrial automation safety and machine safeguarding, this curtain operates within a scanning range of 0 m to 8 m and boasts a rapid response time of ≤ 13 ms, making it perfect for safety monitoring in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 660 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Extension connection: Female connector M12, 5-pin, 700 mm cable length
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices (OSSDs): PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state switching voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state switching voltage: ≤ 2 V DC
- Current-carrying capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Enclosure rating: IP65 (EN 60529)
- Ambient operating temperature: –20 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Wave length: 850 nm
- Dimensions (H x L x W): 660mm x 32mm x 15mm
- Weight: 0.235 kg
Key Features
- Twin-Stick system part for flexible cascade configurations
- Mounting options with C-fix or L-fix brackets
- Resolution of 34 mm for precise detection
- Scanning range from 0 m to 8 m typical
- Protective field height of 660 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Industrial automation safety
- Machine safeguarding
- Cascade systems with miniTwin2 hosts and guests
- Safety monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum housing reduces waste through long product life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK C2MT-06634BBC04FE0 Twin-Stick safety light curtain is available for immediate purchase, ideal for industrial safety and machine safeguarding applications.
