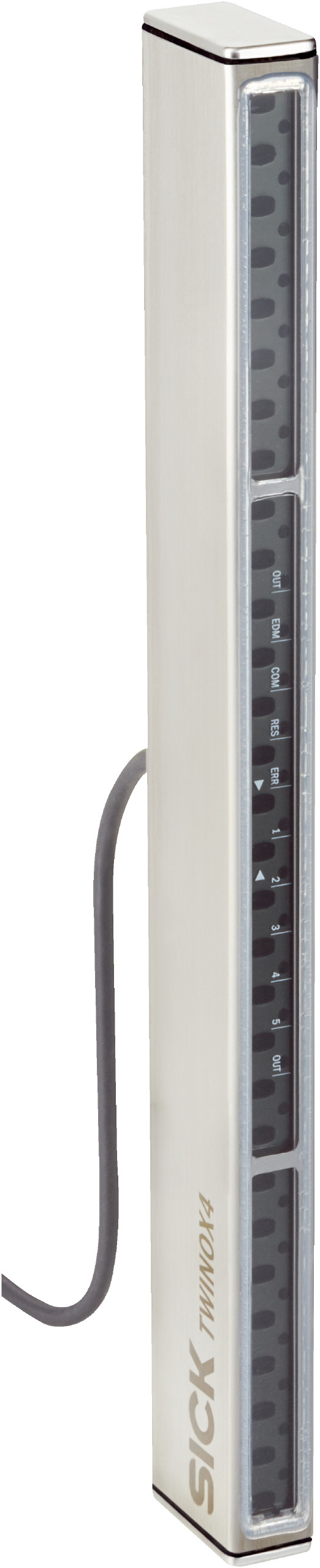

Safety Light Curtain | Type 4 | 14 mm Resolution | 600 mm Height | by SICK
The Safety Light Curtain is designed for industrial safety, featuring a Type 4 safety rating and a 14 mm resolution. With a protective field height of 600 mm and a scanning range of 4.5 m, it ensures fast detection with a response time of just 14 ms. Ideal for protecting personnel in hazardous areas, this robust curtain is built with stainless steel housing and offers IP65/IP67 ratings for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 14 mm
- Protective field height: 600 mm
- Scanning range: 4.5 m
- Response time: 14 ms
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 4.3 x 10⁻⁹
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- Connection: 10 m flying leads, 5-wire cable
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption: Approx. 4.3 W
- Output type: PNP semiconductors, short-circuit protected
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -20 °C to +55 °C
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Dimensions (H x L x W): 600mm x 20mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain with 14 mm resolution
- Protective field height of 600 mm and scanning range of 4.5 m
- Response time of 14 ms for fast detection
- Includes restart interlock, external device monitoring, and beam coding
- Robust stainless steel V4A housing with chemically prestressed float glass front screen
- IP65 and IP67 rated for dust and water protection
- Operating temperature range from -20 °C to +55 °C
- LED display elements for status indication
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtains and relevant safety standards to ensure proper integration and compliance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable materials and long service life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

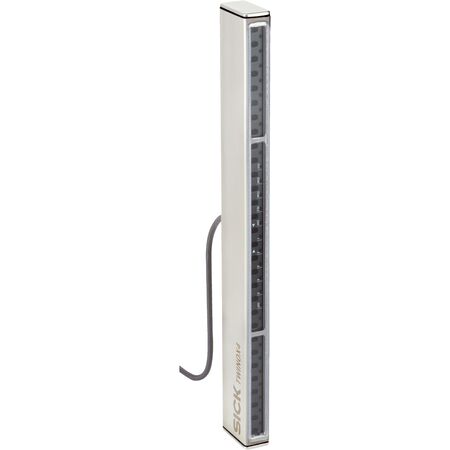

The SICK C4IT-06014ABA01KA0 Twin-Stick Safety Light Curtain is available for immediate purchase, ideal for industrial safety and personnel protection applications.
