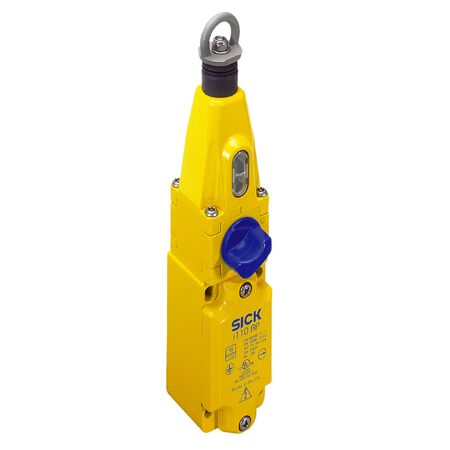

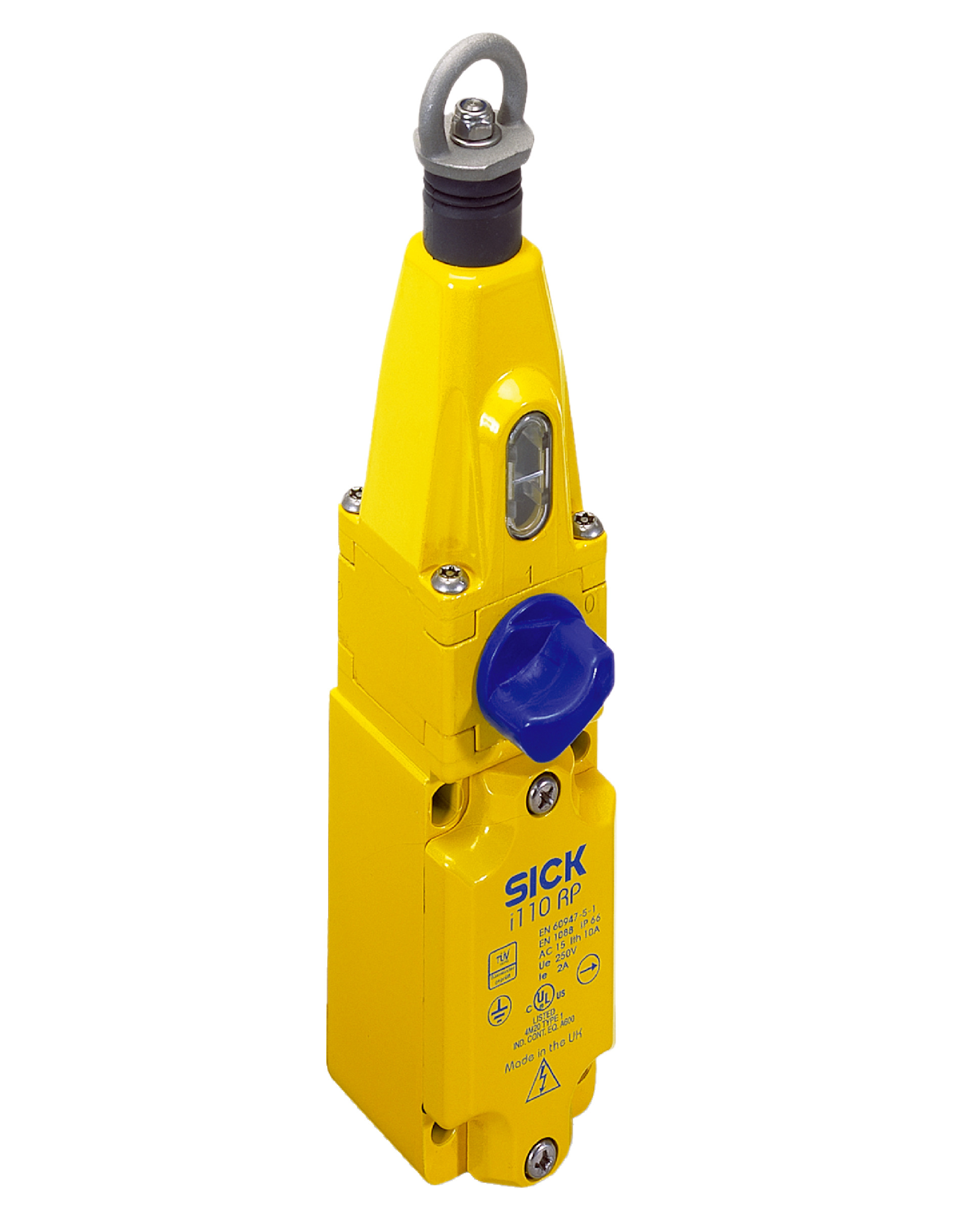

Safety Limit Switch i110-RP313 | 3 N/C & 1 N/O Contacts | IP66 Rated | by SICK
The i110-RP313 safety limit switch features 3 positive action normally closed contacts and 1 normally open contact, making it ideal for industrial safety systems and machinery interlocks. With a robust IP66 rated enclosure and a mechanical life of 1 million cycles, this switch ensures reliable operation in harsh environments, operating between -25°C to +80°C. Perfect for automation equipment safety monitoring, it meets stringent safety standards for peace of mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 3
- N/O contacts: 1
- Actuation force: 125 N at 300 mm deflection
- Actuation frequency: up to 3600 per hour
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2500 V
- Short-circuit protection: T6
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA at 5 V DC
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP66 (IEC 60529)
- Ambient operating temperature: -25°C to +80°C
- Storage temperature: -25°C to +80°C
- Housing material: Zinc diecast with varnished surface
- Connection type: Cable gland, 1 x M20
- Conductor cross section: ≤ 1.5 mm²
- Dimensions (H x L x W): 56mm x 204mm x 40mm
- Weight: 0.84 kg
Key Features
- 3 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Slow action switching element for reliable operation
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- High mechanical life of 1 million switching cycles
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +80°C
- Cable gland connection with conductor cross section up to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical wiring standards.
Applications
- Industrial safety systems requiring reliable switch actuation
- Machinery safety interlocks
- Automation equipment safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc diecast housing reduces need for frequent replacements
- High mechanical life minimizes waste and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK i110-RP313 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
