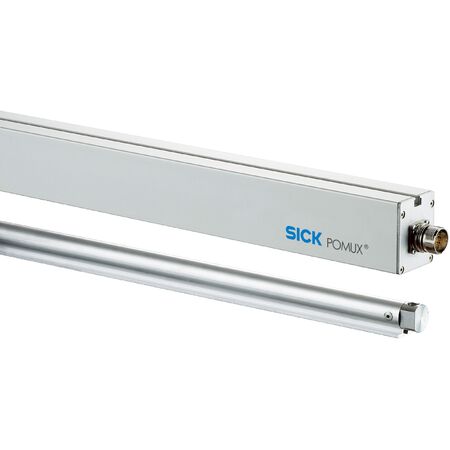

Safety Measuring System KHK53-AXT00054 | 54 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The KHK53-AXT00054 safety measuring system is designed for precision in industrial automation, featuring a measuring range of up to 54 m and a high resolution of 0.1 mm. With its robust IP66 enclosure, it withstands harsh environments, making it ideal for position measurement and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Measuring System KHK53-AXT00054 | 54 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1035442
Alternatively Known As: Safety measuring system, Position sensor, Industrial safety sensor, KHK53 linear encoder
Technical Specifications
- Measuring range: 0 m to 54 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 1 mm
- Measurement accuracy: ± 2000 + ME (Tu-25°C) Tk µm
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 5 m length
- Position tolerance: ± 20 mm
- Read head material: AlMgSiPbF28
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +85°C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 150mm x 400mm x 150mm
- Weight: 4.4 kg
Key Features
- Measuring range up to 54 m
- High resolution of 0.1 mm
- Repeatability of 1 mm
- Robust IP66 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +70°C
- Resistance to shocks up to 30 g and vibration up to 10 g
- Communication via SSI and RS-422 interfaces
- Mean time to dangerous failure (MTTFD) of 34 years according to EN ISO 13849
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation and safety systems
- Position measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT00054 safety-related measuring system is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
