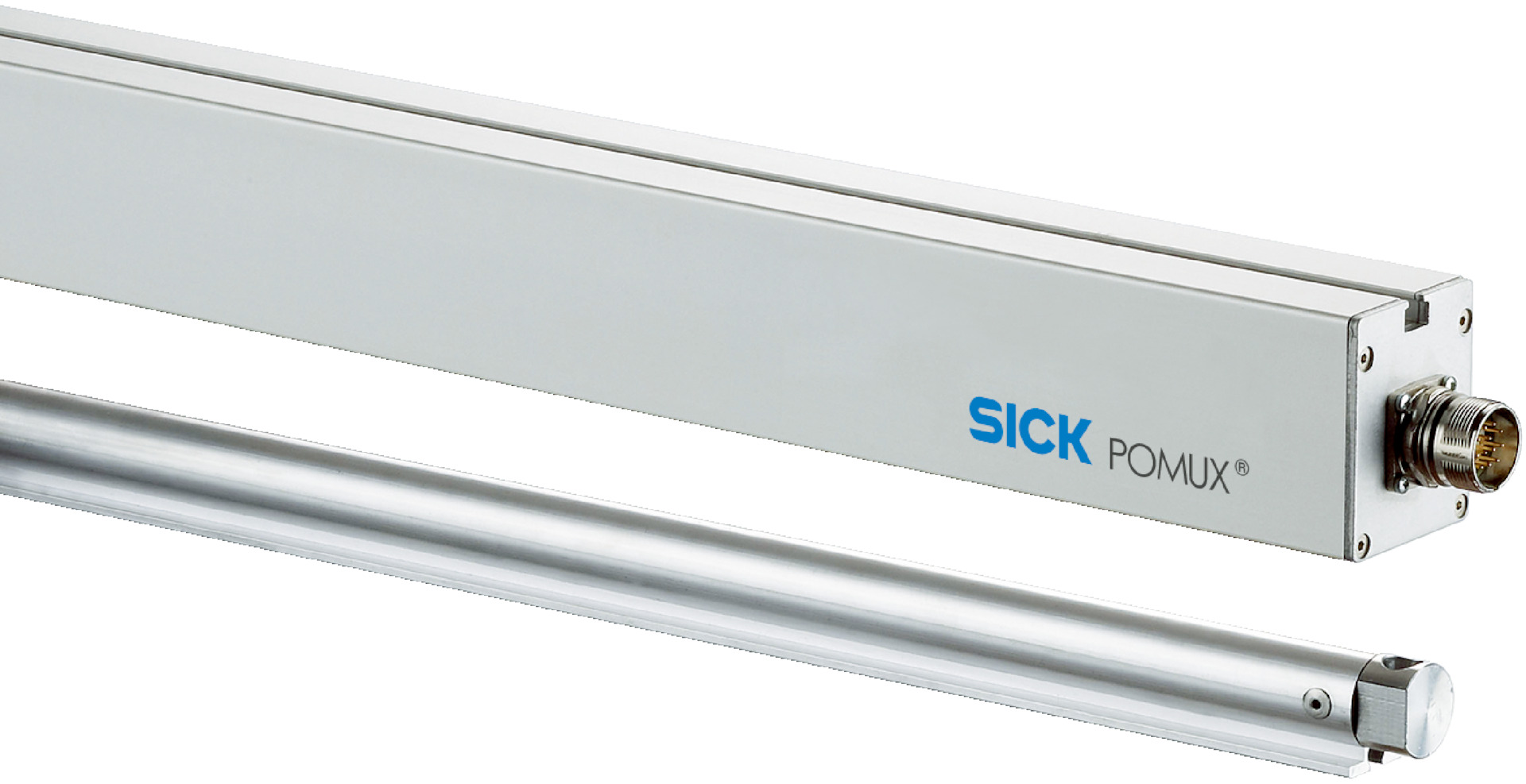

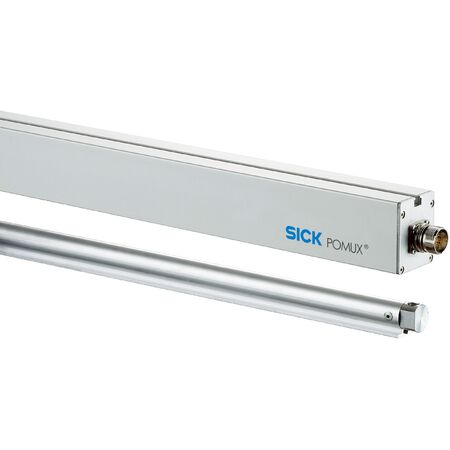

Safety Measuring System KHK53-AXR00107 | 107 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The KHK53-AXR00107 safety measuring system offers an impressive measuring range of up to 107 m with a precise 0.1 mm resolution, making it ideal for industrial automation and safety monitoring. With a robust IP66 rated enclosure, it withstands harsh environments while ensuring high repeatability of 0.3 mm. Perfect for applications requiring accurate position measurement, this system is designed for optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Measuring System KHK53-AXR00107 | 107 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030058
Alternatively Known As: Safety measuring system, Position measuring system, Industrial distance sensor, Safety encoder
Technical Specifications
- Measuring range: 0 m to 107 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: SSI, 24 Bit, gray
- Parameterization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 1.5 m length
- Position tolerance: ±10 mm
- Read head material: AlMgSiPbF28
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Enclosure rating: IP66
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 2.7 kg
Key Features
- Measuring range up to 107 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via SSI digital serial interface and RS-422 for parameterization
- Mean time to dangerous failure (MTTFD) of 40 years according to EN ISO 13849
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related measuring systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation and safety monitoring
- Position measurement in machinery
- Safety-related control systems requiring precise distance measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KHK53-AXR00107 safety-related measuring system is available for immediate purchase, ideal for industrial safety and automation applications.
