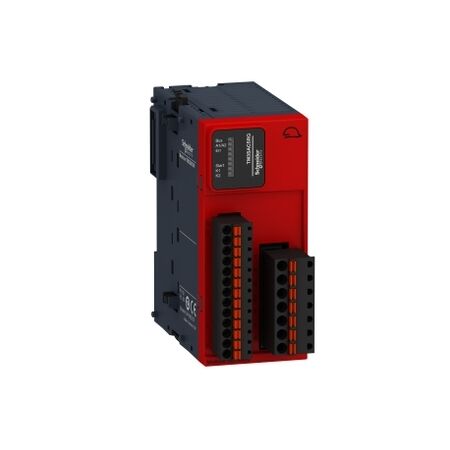

Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

Safety Module 1 Function | Cat 3 PL d/SIL CL2 | 24 VDC by Clipsal

BRAND: Clipsal

SKU: TM3SAC5RG

$695.40 List price: $1,043.10

+ −

30 Days Return Delivery Options

Safety module with 1 function and Cat 3 PL d/SIL CL2 rating—ideal for industrial emergency stop and switch monitoring. Built for safety compliance, with easy connections and local signaling.

Description
Attachments

Product Name/Title: Modicon TM3, Safety module, 1 Function, Cat 3 PL d/SIL CL2 (spring) 24 VDC

Brand: Clipsal

SKU: TM3SAC5RG

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Emergency Stop Module

Technical Specifications

Power consumption: 3.6 W at 24 V DC
Input protection type: internal, electronic
Output type: relay instantaneous opening, 3 NO circuits
Rated supply voltage: 24 V DC
Maximum switching voltage: 230 V AC, 24 V DC
IP Rating: IP20
Ambient temperature for operation: -10...55 °C
Dimensions (H x L x W): 94mm x 73mm x 43.7mm
Weight: 0.19 kg

Key Features

1-channel and 2-channel emergency stop monitoring
Monitoring of movable guards with automatic start
Captive spring terminals for easy connections
Local signaling with 6 LEDs (green/red)

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal safety.

Applications

Industrial: Emergency stop and switch monitoring

Standards & Compliance

Complies with ISO 13849-1:2008 and IEC 62061:2005 for safety standards.

Environmental Benefits

Complies with environmental regulations and standards.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring safety monitoring.

TM3SAC5RG (TM3SAC5RG, 413 Kb) [Download]
