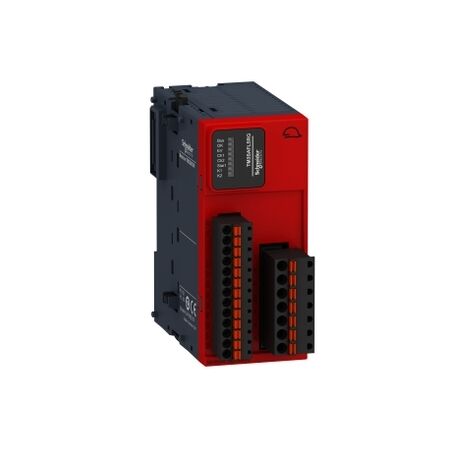

Safety Module 2 Function | Cat 3 PL d/SIL CL2 | 24 VDC by Clipsal
Safety module with 2-channel wiring and Cat 3 PL d/SIL CL2 rating—ideal for industrial emergency stop monitoring. Built for compliance, with easy connections and compatibility with safety light curtains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: 3.6 W at 24 V DC.
- IP Rating: IP20.
- Operating temperature: -10...55 °C.
- Relative humidity: 10...95 % without condensation.
- Safety level: PL d/category 3 conforming to ISO 13849-1:2008.
- SILCL 2 conforming to IEC 62061:2005.
- Dimensions (H x L x W): 94mm x 73mm x 43.7mm
- Weight: 0.19 kg
Key Features
- 2-channel wiring for emergency stop monitoring.
- Monitoring of movable guards with automatic start.
- Compatible with safety light curtains conforming to EN/IEC 61496-1 (type 4).
- Captive spring terminals for easy connections.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Emergency stop monitoring, switch and safety light curtain monitoring.
Standards & Compliance
- Complies with ISO 13849-1:2008 and IEC 62061:2005.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial applications requiring safety monitoring.
