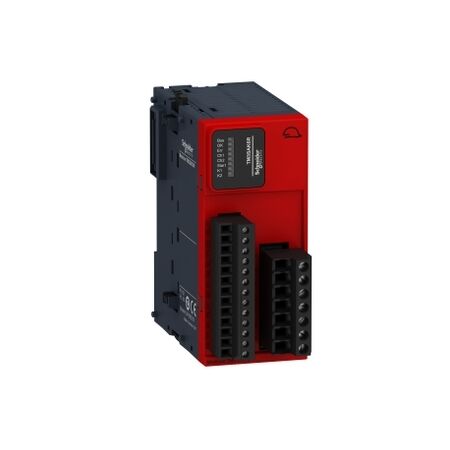

Modicon TM3, Safety module, 3 Function, Cat 4 PL e/SIL CL3 (screw) 24 VDC

Safety Module 3 Function | Cat 4 PL e/SIL CL3 | 24 VDC by Clipsal

BRAND: Clipsal

SKU: TM3SAK6R

$878.60 List price: $1,317.90

+ −

30 Days Return Delivery Options

Safety module with 3 functions and Cat 4 PL e/SIL CL3 rating—ideal for industrial safety applications. Built for emergency stop and guard monitoring, with compatibility for safety light curtains.

Description
Attachments

Product Name/Title: Modicon TM3, Safety module, 3 Function, Cat 4 PL e/SIL CL3 (screw) 24 VDC

Brand: Clipsal

SKU: TM3SAK6R

Alternatively Known As: TM3 Safety Module, Modicon Safety Module, Emergency Stop Module

Technical Specifications

Power consumption: 3.6 W at 24 V DC
Input protection type: internal, electronic
Output type: relay instantaneous opening, 3 NO circuits
Maximum switching voltage: 230 V AC, 24 V DC
Rated supply voltage: 24 V DC
IP degree of protection: IP20
Ambient air temperature for operation: -10...55 °C
Dimensions (H x L x W): 94mm x 73mm x 43.7mm
Weight: 0.19 kg

Key Features

Emergency stop monitoring with 1-channel and 2-channel wiring options.
Monitoring of movable guards and multiple emergency stops.
Compatible with safety light curtains and sensing mats.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal safety.

Applications

Industrial: Emergency stop monitoring, safety light curtain monitoring, movable guard monitoring

Standards & Compliance

Complies with ISO 13849-1:2008 and IEC 62061:2005 for safety standards.

Environmental Benefits

Complies with environmental regulations and standards.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Safety Module is available now for immediate purchase. Ideal for industrial safety applications.

TM3SAK6R (TM3SAK6R, 526 Kb) [Download]
