Safety Module Cat.3 230VAC | Emergency Stop Relay | 2 NO Outputs | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Safety Module Cat.3 230VAC is designed for emergency stop applications, featuring 2 normally open safety outputs and reliable circuit monitoring. Ideal for industrial automation and safety circuits, this module ensures compliance with stringent safety standards while providing easy DIN rail installation and LED status indicators for diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

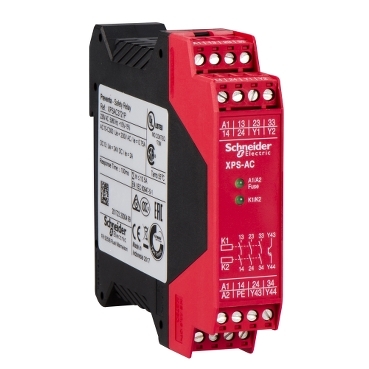

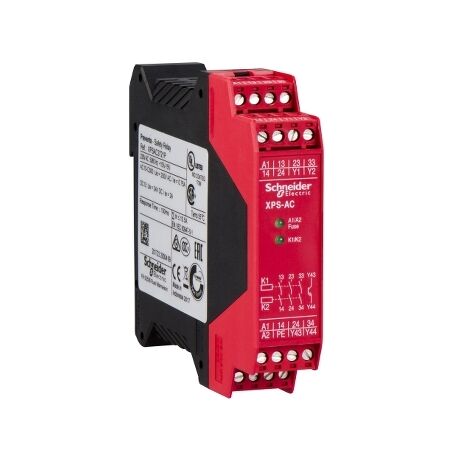

Product Name/Title: Safety Module Cat.3 230VAC | Emergency Stop Relay | 2 NO Outputs | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXPSAC3721P
Alternatively Known As: Emergency Stop Safety Relay, XPSAC3721P, Schneider Safety Relay, Cat 3 Safety Module, Emergency Stop Module 230V
Technical Specifications
- Supply voltage: 230V AC
- Safety category: Cat.3 (EN 954-1/ISO 13849-1)
- Number of safety outputs: 2 NO (normally open)
- Auxiliary outputs: 1 NC (normally closed)
- Mounting: DIN rail
- Operating temperature: -5°C to +55°C
- LED status indicators
- Response time: < 30 ms
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.25 kg
Key Features
- Category 3 safety relay module for emergency stop applications
- Operates at 230V AC supply voltage
- Ensures reliable safety circuit monitoring
- DIN rail mountable for easy installation
- LED indicators for status and diagnostics
- Meets stringent industrial safety requirements
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician in accordance with local electrical safety regulations.
Applications
- Industrial automation safety circuits
- Emergency stop systems in manufacturing plants
- Machinery safety interlocks
- Conveyor and process line safety
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards
- Long operational life reduces electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Safety Module Cat.3 230VAC SCHXPSAC3721P is available for immediate purchase. Ideal for industrial emergency stop and safety circuit applications.
