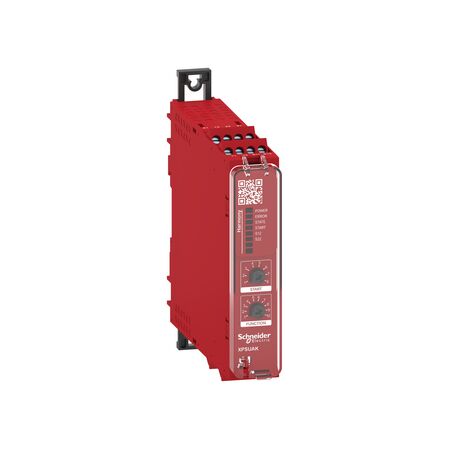

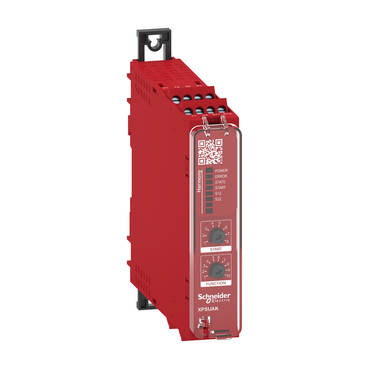

Safety Module UAK Cat.4 24V Screw | High-Level Safety | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Safety Module UAK Cat.4 24V Screw is designed for high-level safety applications, featuring a 24V DC supply voltage and secure screw terminal connections. Ideal for industrial automation safety circuits and emergency stop systems, this compact module ensures compliance with safety standards while enhancing workplace safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Module UAK Cat.4 24V Screw | High-Level Safety | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXPSUAK12AP
Alternatively Known As: Safety Relay, Category 4 Safety Module, Emergency Stop Relay, Machine Safety Relay, SCHXPSUAK12AP
Technical Specifications
- Supply Voltage: 24V DC
- Safety Category: Cat.4 (EN ISO 13849-1)
- Terminal Type: Screw terminals
- Mounting: DIN rail
- Response Time: < 20 ms
- Operating Temperature: -25°C to +55°C
- Contact Configuration: 3 NO + 1 NC
- Max Switching Voltage: 250V AC/24V DC
- Max Switching Current: 6A
- Dimensions (H x L x W): 100mm x 120mm x 22mm
- Weight: 0.25 kg
Key Features
- Category 4 safety module for high-level safety applications
- 24V DC supply voltage
- Screw terminal connections for secure wiring
- Designed for use in safety-related control systems
- Supports emergency stop and safety gate monitoring
- Compact DIN rail mountable design
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician familiar with safety relay circuits and relevant standards.
Applications
- Industrial automation safety circuits
- Machine safety interlocks
- Emergency stop circuits
- Safety monitoring in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 4024.1501 for safety of machinery and AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards
- Supports compliance with safety regulations, promoting responsible industrial operations
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Safety Module UAK Cat.4 24V Screw (SCHXPSUAK12AP) is available for immediate purchase. Ideal for industrial safety applications requiring high-integrity emergency stop and safety monitoring.
