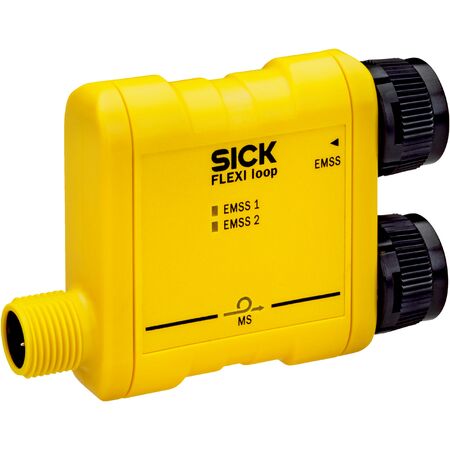

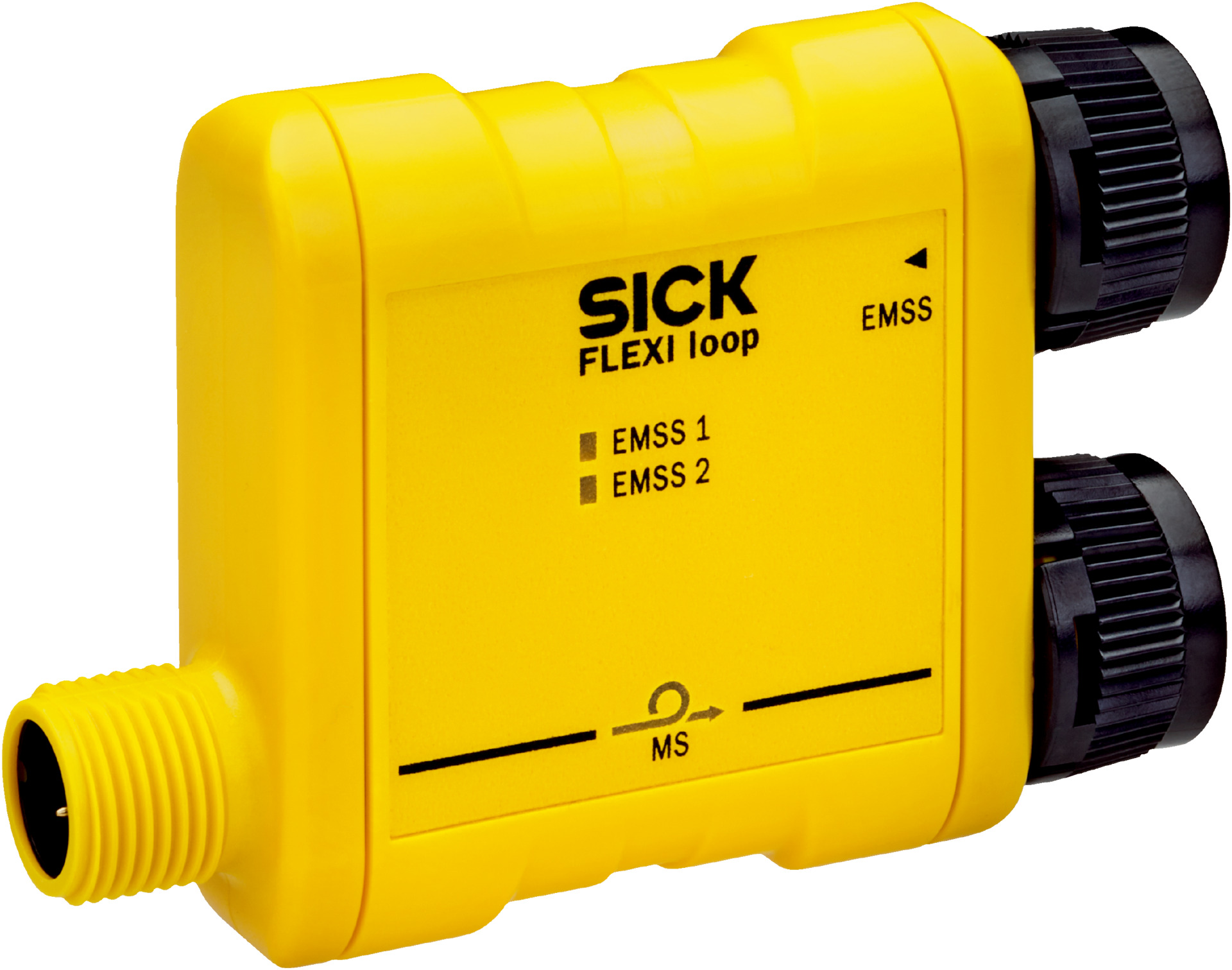

Safety Monitoring Device FLN-EMSS0000105 | SIL 3 & Category 4 | IP65/IP67 Rated | by SICK
The FLN-EMSS0000105 safety monitoring device is designed for industrial safety monitoring and machine control. With a safety integrity level of SIL 3 and category 4 compliance, it ensures optimal safety performance. Featuring diagnostic functions and robust IP65/IP67 enclosure, this device is perfect for automated systems, providing reliable operation in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.76 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Connection type: Female connector M12, 5-pin for safety device; Male connector M12, 5-pin for Flexi Loop input; Female connector M12, 5-pin for Flexi Loop output
- Number of non-safe inputs/outputs: 0
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 55 mA
- Test pulse interval: 40 ms
- Test pulse width: 12 ms
- Test pulse current via switch contacts: 3 mA to 6.2 mA
- Protection class: III (EN 61140)
- Enclosure rating: IP65 and IP67 (EN 60529)
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 48mm x 18mm x 68mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849)
- Performance level PL e (EN ISO 13849)
- Diagnostic and monitoring functions including cross-circuit, short-circuit, discrepancy, and sequence error monitoring via Flexi Loop node
- Connection with female and male M12, 5-pin connectors for safety device and Flexi Loop input/output
- Protection class III (EN 61140) with PELV or SELV supply voltage
- Power consumption of 55 mA
- Test pulse interval of 40 ms and test pulse width of 12 ms
- Enclosure rating IP65 and IP67 (EN 60529)
- Operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety systems and electrical standards to ensure compliance and optimal safety performance.
Applications
- Industrial safety monitoring
- Machine safety control
- Safety device connection in automated systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhanced machine safety reduces risk of accidents and associated environmental hazards
- Durable IP65/IP67 rated enclosure ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FLN-EMSS0000105 safety monitoring device is available for immediate purchase, ideal for industrial safety and machine control applications.
