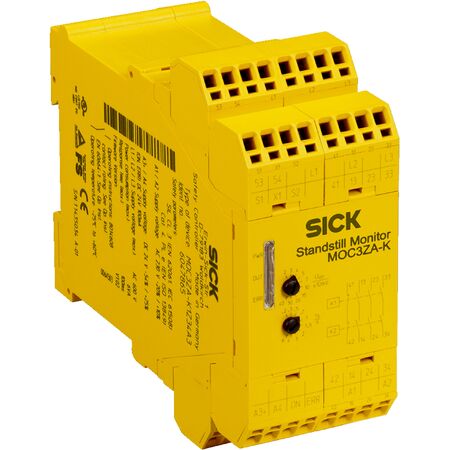

Safety Motor Standstill Monitor | SIL 3 & PL e Certified | 20 Years Mission Time | by SICK
The Safety Motor Standstill Monitor is designed for industrial machinery safety, featuring SIL 3 and PL e certification for high safety integrity. With a 20-year mission time and adjustable voltage threshold, it ensures reliable motor standstill detection, making it ideal for automation systems and safety functions in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 41 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Stop category: 1 (EN 60204-1)
- Drive safety function: Standstill
- Connection type: Screw-type terminals, plug-in screw-type terminals
- Conductor cross section: 0.5 mm² to 2.5 mm², single or fine wire with ferrule
- Encoder interface: Motor voltage measuring
- Supply voltage (A1/A2): 24 V DC (21.6 V to 28.8 V)
- Residual ripple: 10%
- Maximum power consumption: ≤ 4 W
- Supply voltage of semiconductor diagnostic outputs (A3/A4): 24 V DC (11 V to 30 V DC)
- Measured/motor voltage: ≤ 690 V AC (≤ 600 V AC for UL 508 applications)
- Voltage threshold Uan: 20 mV to 400 mV, adjustable
- Standstill time ts: 0.2 s to 6 s, adjustable
- Hysteresis for running motor detection: 100%
- Response time: ≤ 100 ms
- Safety outputs: 3 normally open contacts, 1 normally closed contact, relay positively guided
- Nominal switching voltage: 250 V AC
- Switching capacity AC 15: N/O 3 A/230 V AC, N/C 1 A/230 V AC
- Switching capacity DC 13: 1 A/24 V DC
- Maximum switching frequency: ≤ 1200 per hour
- Contact service life: ≥ 200,000 switching operations at 230 V / 5 A AC
- Mechanical life: ≥ 50 million switching operations
- Semiconductor diagnostic outputs: Electrically isolated, short-circuit protected, max 100 mA
- Signal contacts 53/54: 3 A/250 V AC
- Enclosure rating: Terminals IP20, Housing IP40 (EN 60529)
- Climate conditions: 25/060/04 (EN 60068-1)
- Vibration resistance: 10 Hz to 55 Hz (EN 60068-2-6)
- Shock resistance: Single shock 30 g, 11 ms (EN 60068-2-27)
- Mounting: 35 mm mounting rail according to EN 60715
- Dimensions (H x L x W): 112mm x 121mm x 45mm
- Weight: 0.4 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Mean probability of dangerous failure per hour (PFHD) 41 x 10^-9
- 20 years mission time
- Stop category 1 (EN 60204-1)
- Drive safety function: Standstill detection
- Connection via screw-type terminals
- Motor voltage measuring encoder interface
- Supply voltage 24 V DC with max power consumption ≤ 4 W
- Adjustable voltage threshold and standstill time
- Relay safety outputs with positively guided contacts
- High mechanical and electrical contact life
- IP20 terminals and IP40 housing protection
- Mounting on 35 mm rail according to EN 60715
Professional Installation Requirements
- Installation must be performed by a qualified electrician or safety systems professional to ensure compliance with safety standards and proper integration into machinery control systems.
Applications
- Industrial machinery safety monitoring
- Motor standstill detection for safety functions
- Automation systems requiring SIL 3 and PL e safety levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption (≤ 4 W) reduces energy usage
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MOC3ZA-KAZ33D3 Safety-Related Motor Standstill Monitor is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
