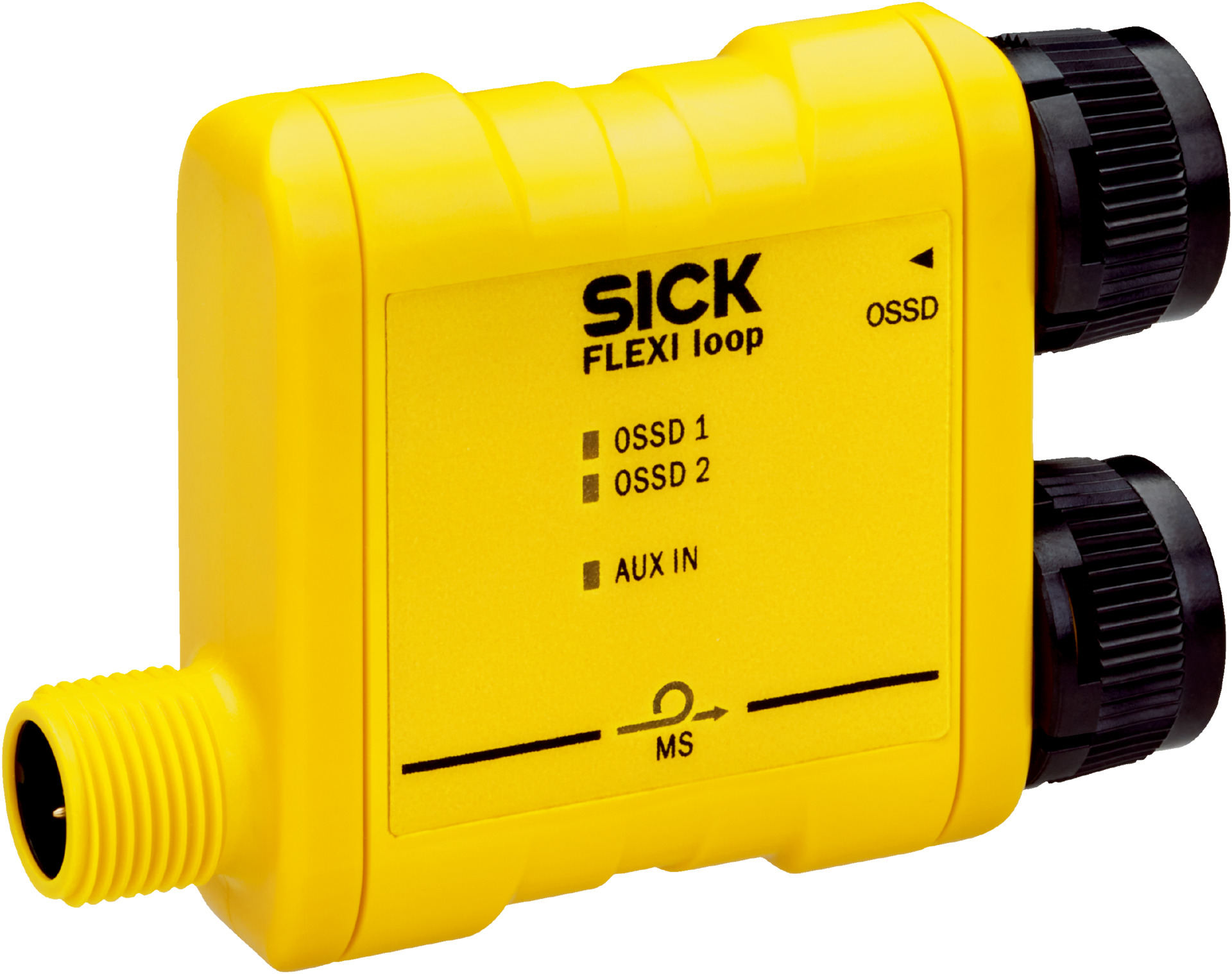

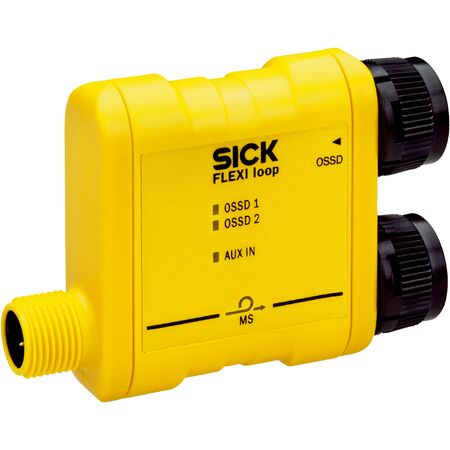

Safety OSSD Module | SIL 3 & Category 4 | Dual-Channel Outputs | IP65/IP67 Enclosure | by SICK
The Safety OSSD Module FLN-OSSD1000105 is designed for high-integrity safety monitoring in industrial applications. With a SIL 3 safety integrity level and dual-channel OSSD outputs, it ensures reliable machine safety. Its robust IP65/IP67 enclosure and diagnostic functions make it ideal for integration with Flexi Soft safety controllers, providing peace of mind in automated environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD): 0.76 x 10^-9
- Mission time: 20 years
- Connection type: Female M12 5-pin for safety device, Male M12 5-pin for Flexi Loop input, Female M12 5-pin for Flexi Loop output
- Number of non-safe inputs: 1
- Power supply output: 24 V DC (16.8 V DC to 30 V DC), max 3.9 A
- Power consumption: 45 mA
- Input voltage for OSSD inputs: HIGH 13 V DC to 30 V DC, LOW -5 V DC to 5 V DC
- Input current for OSSD inputs: HIGH 3.5 mA to 6.2 mA, LOW -2.5 mA to 2.5 mA
- Switching voltage for non-safe inputs: HIGH 13 V DC to 30 V DC, LOW 0 V DC to 5 V DC
- Input current for non-safe inputs: ≤ 6.2 mA
- Protection class: III (EN 61140)
- Enclosure rating: IP65 and IP67 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 48mm x 18mm x 68mm
- Weight: 0.1 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- Diagnostic and monitoring functions including cross-circuit, short-circuit, discrepancy and sequence error monitoring
- Dual-channel OSSD outputs for safety sensor connection
- Flexi Loop input and output connectors for flexible safety network integration
- Power supply output for external devices up to 3.9 A
- Protection class III with PELV or SELV supply voltage
- Enclosure rated IP65 and IP67 for robust environmental protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring high integrity safety monitoring
- Machine safety with dual-channel OSSD outputs
- Integration with Flexi Soft safety controllers in automated environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Durable IP65/IP67 rated enclosure reduces waste from frequent replacements
- Low power consumption design supports energy efficiency in industrial applications
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FLN-OSSD1000105 safety device is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and diagnostic capabilities.
