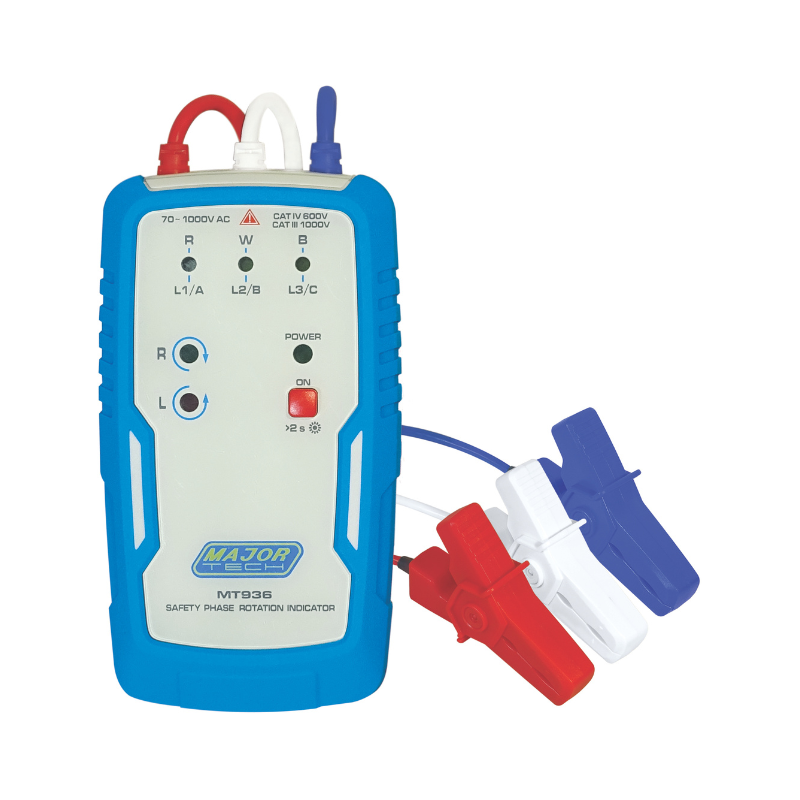

Safety Phase Rotation Indicator | Non-Contact Detection | AC Voltage Range 70V-1000V | Super Bright LEDs | by Majortech
The Safety Phase Rotation Indicator is designed for non-contact phase rotation detection in 3-phase electrical systems, featuring an AC voltage range of 70V to 1000V and super bright LEDs for clear visual indication. Ideal for electricians and engineers, this compact device ensures safe and accurate measurements, making it perfect for maintenance and troubleshooting in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Phase Rotation Meter, Phase Sequence Tester, Non-Contact Phase Indicator, 3-Phase Rotation Tester
Technical Specifications
- AC Voltage Range: 70V – 1000V
- Clamp Diameter Range: Ø2.4 – 30mm
- Detection Method: Electrostatic Induction
- Insulation Resistance: 10MΩ or more at 1000V between measurement tip and enclosure
- Measuring Frequency: 45 – 66Hz
- Phase Rotation Indication: Clockwise (correct) and Anti-clockwise (reversed)
- Visual Indication: Super Bright LEDs with brightness adjustment
- Phase Colours: Red, White, Blue
- Cable Length: Approximately 80cm
- Size: 135 x 75 x 31mm
- Weight: 340g
- Safety Standard: IEC 61010-1 (CAT IV 600V / CAT III 1000V)
- Dimensions (H x L x W): 31mm x 135mm x 75mm
- Weight: 0.34 kg
Key Features
- Non-contact phase rotation detection using electrostatic induction
- Clamp over insulated conductors for safe and easy measurement
- Measures AC voltage from 70V to 1000V within 45Hz to 66Hz frequency
- 3 Green LEDs indicate clamp connection and correct phase sequence
- Red LED and audible buzzer indicate reversed phase sequence
- Brightness button for enhanced LED visibility in bright environments
- Built-in magnet for secure attachment to metallic surfaces
- Compact, lightweight design with IP40 dust-proof rating
Professional Installation Requirements
- No professional installation required; designed for safe use by electricians and engineers with appropriate training.
Applications
- Electrical: Phase rotation detection in 3-phase electrical systems
- Industrial: Maintenance and troubleshooting of electrical installations
- Engineering: Verification of phase sequence in power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces risk of damage and waste from faulty testing
- Durable design extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Majortech for specific warranty details.
Available Now
The Majortech MT936 Safety Phase Rotation Indicator is available now for immediate purchase. Ideal for electricians and engineers requiring safe, accurate phase detection in 3-phase electrical systems.
