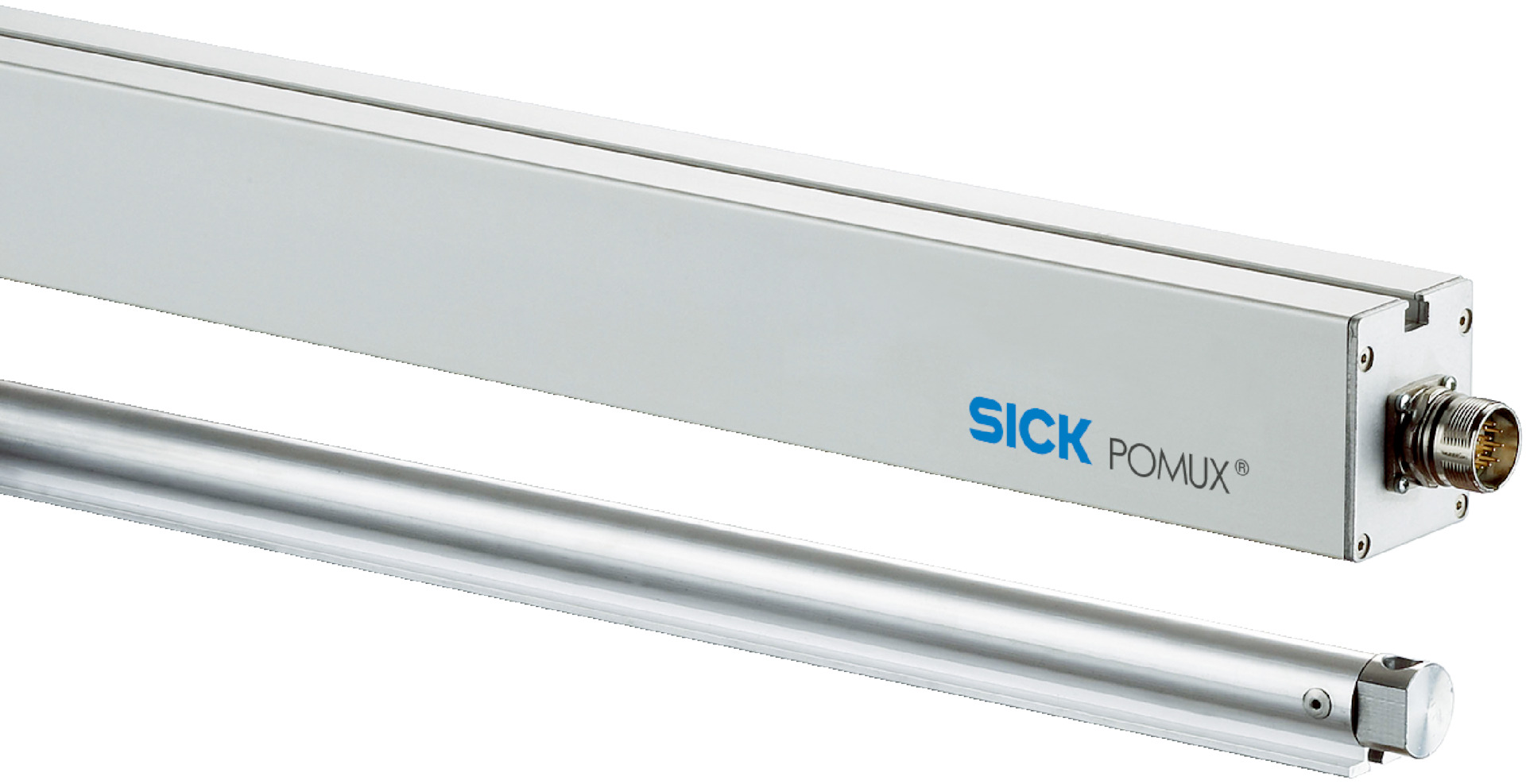

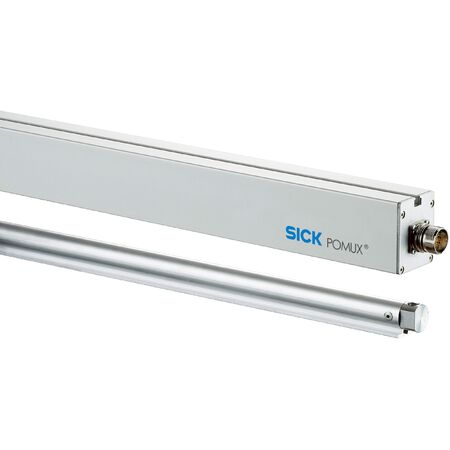

Safety Position Sensor KHK53-AXB00548 | 548 m Measuring Range | 0.1 mm Resolution | IP65 Enclosure | by SICK
The Safety Position Sensor KHK53-AXB00548 offers an impressive measuring range of up to 548 m with a high resolution of 0.1 mm, making it ideal for industrial automation and safety-critical applications. With a robust IP65 rated enclosure, it withstands harsh environments while providing reliable position feedback. Perfect for machine tool positioning, robotics, and material handling systems, this sensor ensures precision and durability in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXB00548 | 548 m Measuring Range | 0.1 mm Resolution | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1035449
Alternatively Known As: Safety Position Sensor, High Precision Position Encoder, Industrial Position Sensor, SICK KHK53 Sensor
Technical Specifications
- Measuring range: 0 m to 548 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 1 mm
- Measurement accuracy: ± 2000 + ME (Tu-25° C) Tk µm
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: Male connector, M23, 12-pin
- Position tolerance: ± 20 mm
- Read head material: AlMgSiPbF28
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 (with mating plug inserted)
- Operating temperature range: -30 °C to +70 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 6.7 kg
Key Features
- High measuring range up to 548 m
- High resolution of 0.1 mm and repeatability of 1 mm
- Robust IP65 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable safety parameters with MTTFD of 22 years
- Communication via SSI 24 Bit gray code and RS-422 interface
- Wide operating temperature range from -30 °C to +70 °C
- Shock resistance up to 30 g and vibration resistance up to 10 g
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and electrical safety is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable position feedback
- Machine tool positioning and control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXB00548 Safety Position Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
