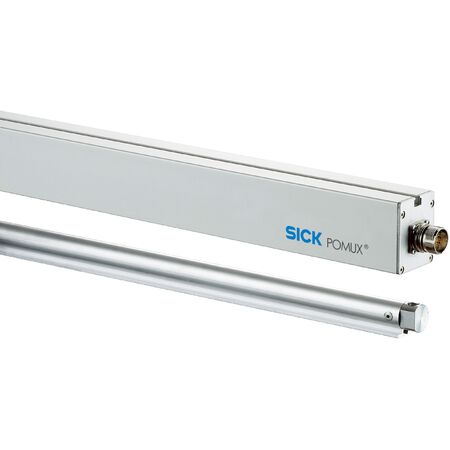

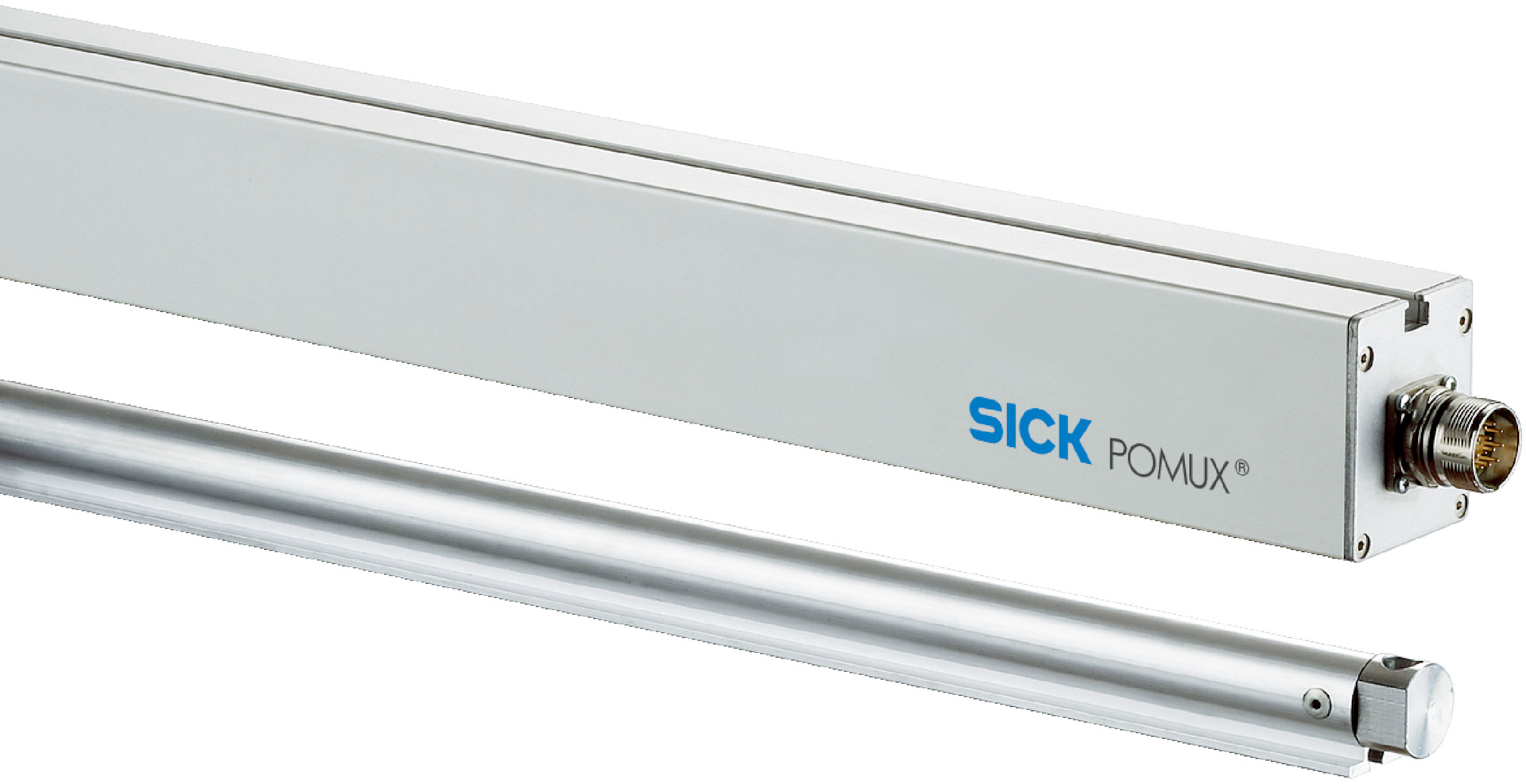

Safety Position Sensor KHK53-AXB00354 | 354 m Measuring Range | 0.1 mm Resolution | IP65 Rated | by SICK
The KHK53-AXB00354 safety position sensor is designed for industrial automation, offering a high measuring range of up to 354 m and an excellent resolution of 0.1 mm. With a robust IP65 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety-critical applications such as machine tool positioning and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXB00354 | 354 m Measuring Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1030072
Alternatively Known As: Safety position sensor, high precision linear encoder, industrial position sensor, SSI position sensor
Technical Specifications
- Measuring range: 0 m to 354 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ± 1000 + ME (Tu-25 °C) Tk µm
- Communication interface: SSI, 24 Bit gray code
- Digital serial interface: SSI, RS-422, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: Male connector, M23, 12-pin
- Position tolerance: ± 10 mm
- Read head material: AlMgSiPbF28
- Enclosure rating: IP65 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 3.6 kg
Key Features
- High measuring range up to 354 m
- Excellent resolution of 0.1 mm
- High repeatability of 0.3 mm
- Robust IP65 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable communication via SSI and RS-422 interfaces
- Mean time to dangerous failure (MTTFD) of 31 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensors and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine tool positioning and control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 250 mA supports energy efficiency
- Robust construction reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXB00354 safety position sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
