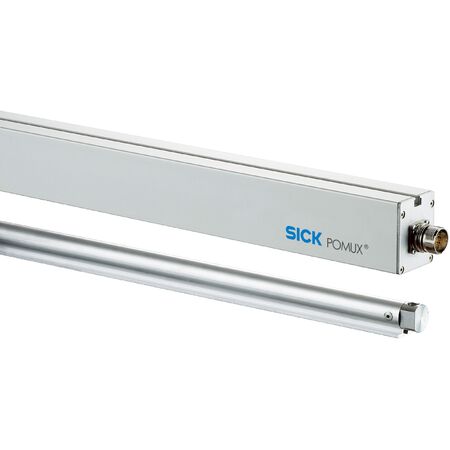

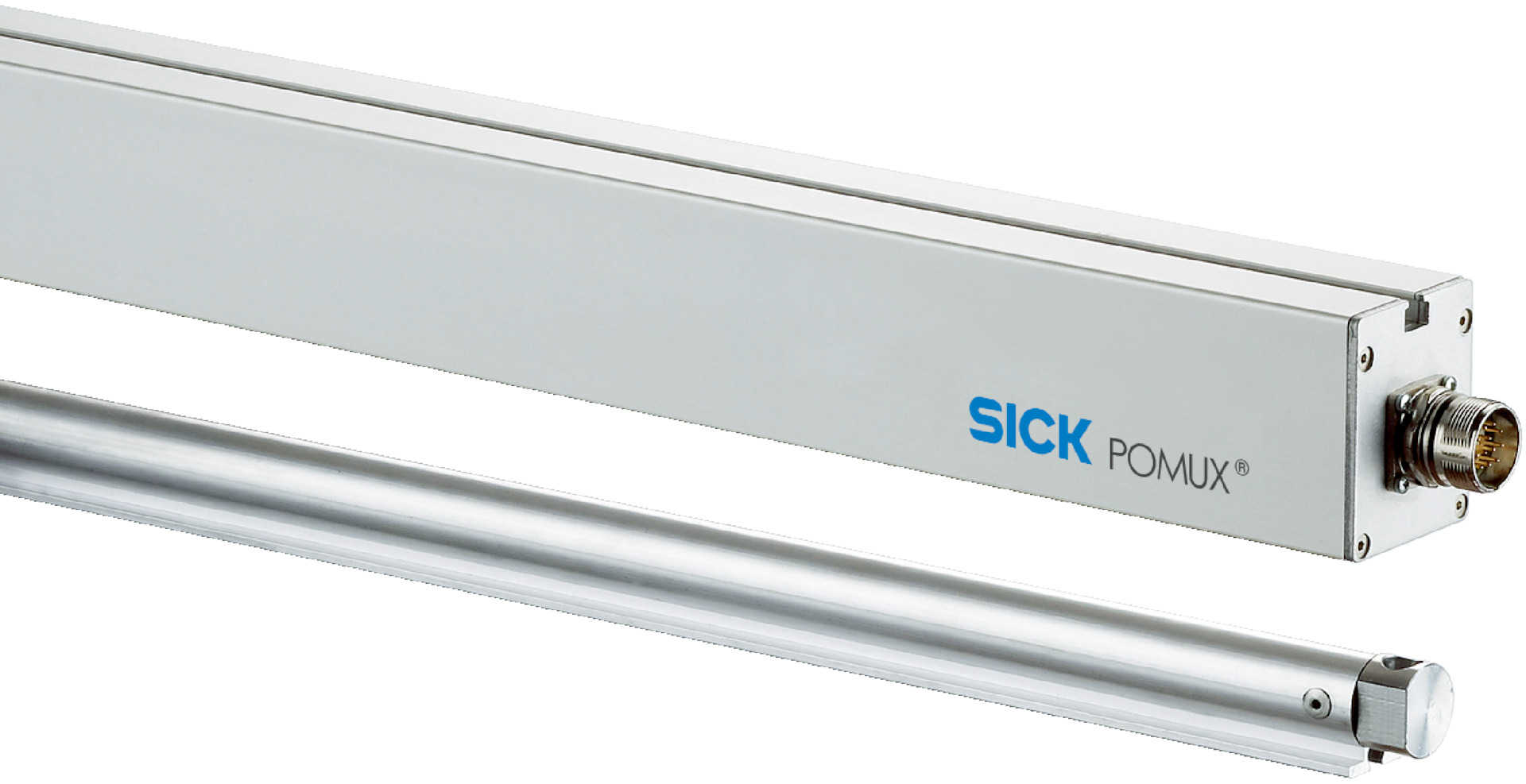

Safety Position Sensor KHK53-AXR00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Enclosure | by SICK
The Safety Position Sensor KHK53-AXR00038 offers a measuring range of up to 38 meters with an impressive 0.1mm resolution, making it ideal for industrial automation and safety-critical applications. With a robust IP66 enclosure, it withstands harsh environments while providing high repeatability and fast traversing speeds. Perfect for machine monitoring and control systems, this sensor ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXR00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030048
Alternatively Known As: Safety Position Sensor, Industrial Safety Sensor, High Precision Position Sensor
Technical Specifications
- Measuring range: 0 m to 38 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit, gray
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 1.5 m length
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Material: AlMgSiPbF28
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 2.4 kg
Key Features
- Measuring range up to 38 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via SSI digital serial interface
- Low initialization time of 2 seconds
- Wide operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation lowers power consumption in industrial settings
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXR00038 safety sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
