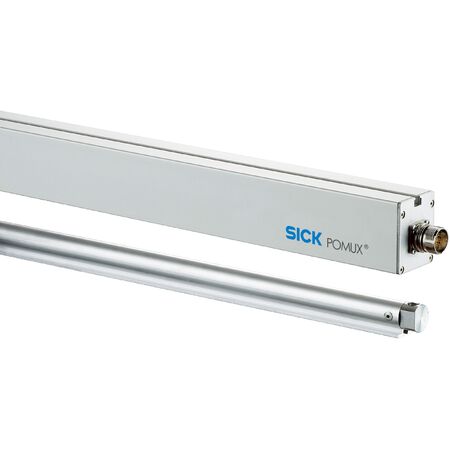

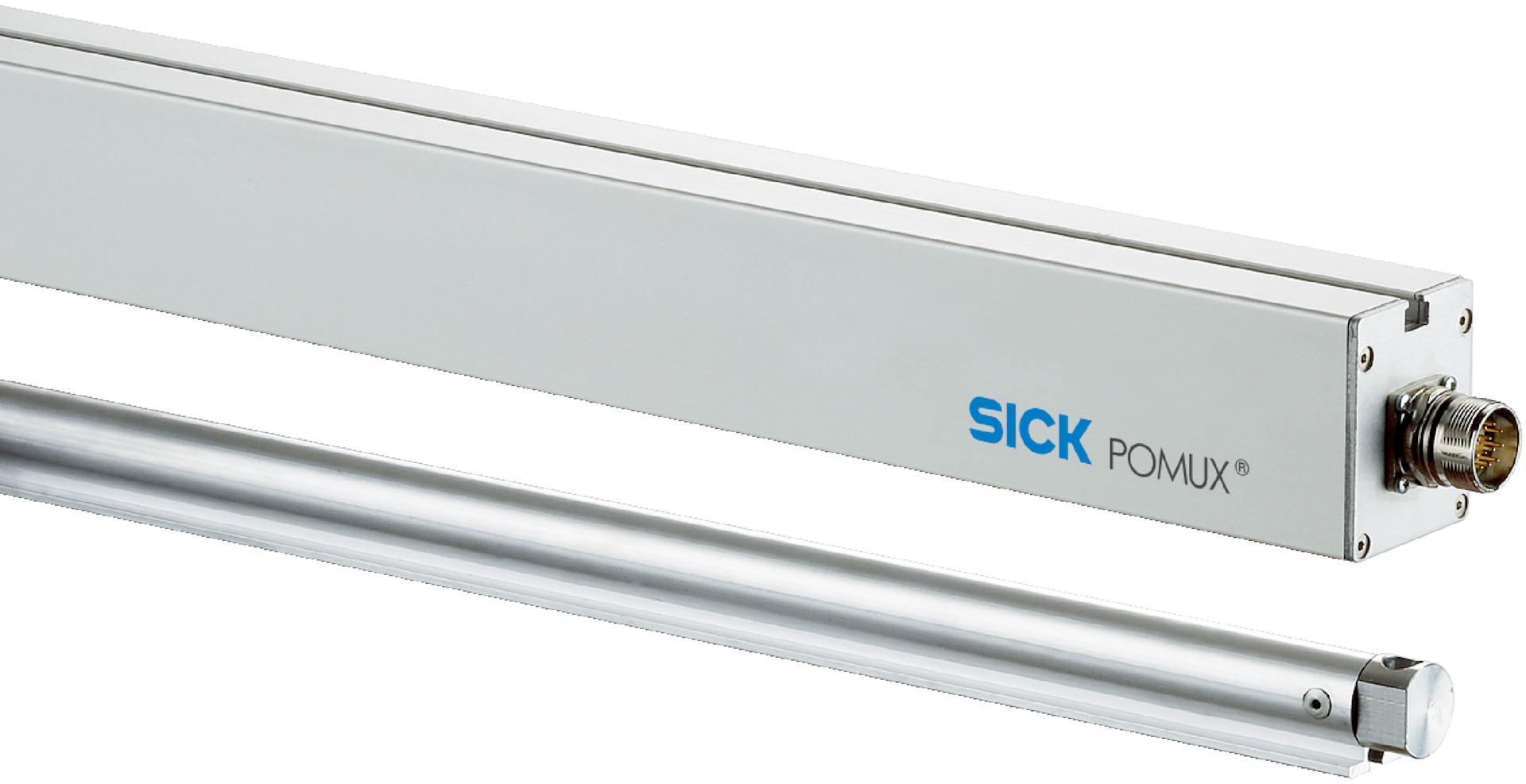

Safety Position Sensor KHK53-AXT00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Rated | by SICK
The KHK53-AXT00038 safety position sensor is designed for industrial automation, offering a measuring range of up to 38 meters with a precision of 0.1mm. With high repeatability and an IP66 rated enclosure, it excels in harsh environments, making it ideal for safety-critical applications in machine tool positioning and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXT00038 | 38m Measuring Range | 0.1mm Resolution | IP66 Rated | by SICK
Brand: SICK
SKU: 1030050
Alternatively Known As: Safety position sensor, high precision linear encoder, industrial position sensor, SSI position sensor
Technical Specifications
- Measuring range: 0 m to 38 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 5 m length
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- MTTFD: 45 years (EN ISO 13849)
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 2.4 kg
Key Features
- Measuring range up to 38 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast position forming time of +0.8 ms
- Communication via SSI 24 Bit gray code interface
- Wide operating temperature range from -20 °C to +60 °C
- High resistance to shocks (30 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensors and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine tool positioning and control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation with low current consumption of 250 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT00038 safety position sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
