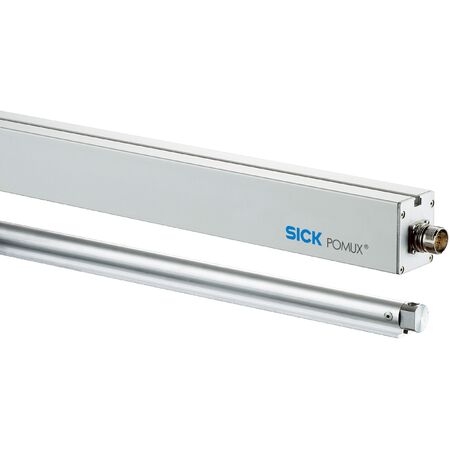

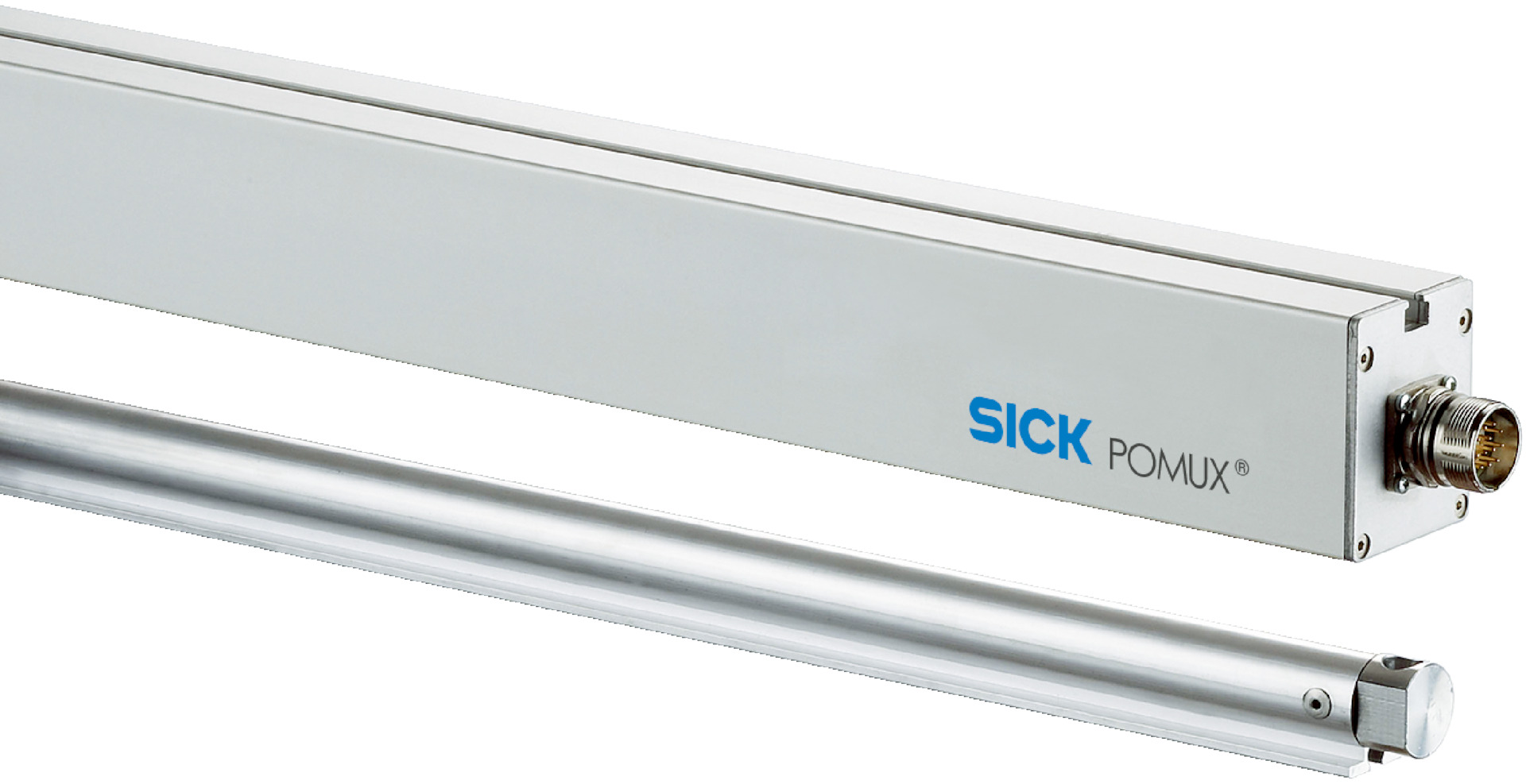

Safety Position Sensor KHK53-AXT00107 | 107 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The Safety Position Sensor KHK53-AXT00107 offers a high measuring range of up to 107 m with a precision resolution of 0.1 mm, making it ideal for industrial automation and safety-critical applications. With a robust IP66 rated enclosure, it ensures reliable performance in harsh environments, while its fast traversing speed of 6.6 m/s and dependable communication interfaces make it a top choice for machine tool positioning and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXT00107 | 107 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030060
Alternatively Known As: Safety Position Sensor, High Precision Position Sensor, Industrial Position Encoder, SSI Position Sensor
Technical Specifications
- Measuring range: 0 m to 107 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 5 m length
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 2.7 kg
Key Features
- High measuring range up to 107 m
- High resolution of 0.1 mm and repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable communication via SSI and RS-422 interfaces
- Mean time to dangerous failure (MTTFD) of 40 years according to EN ISO 13849
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety sensors and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Machine tool positioning and control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT00107 safety position sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
