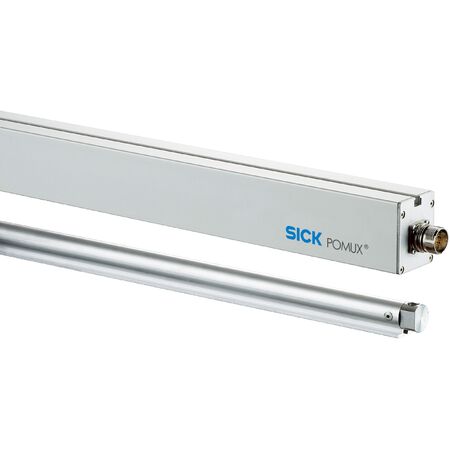

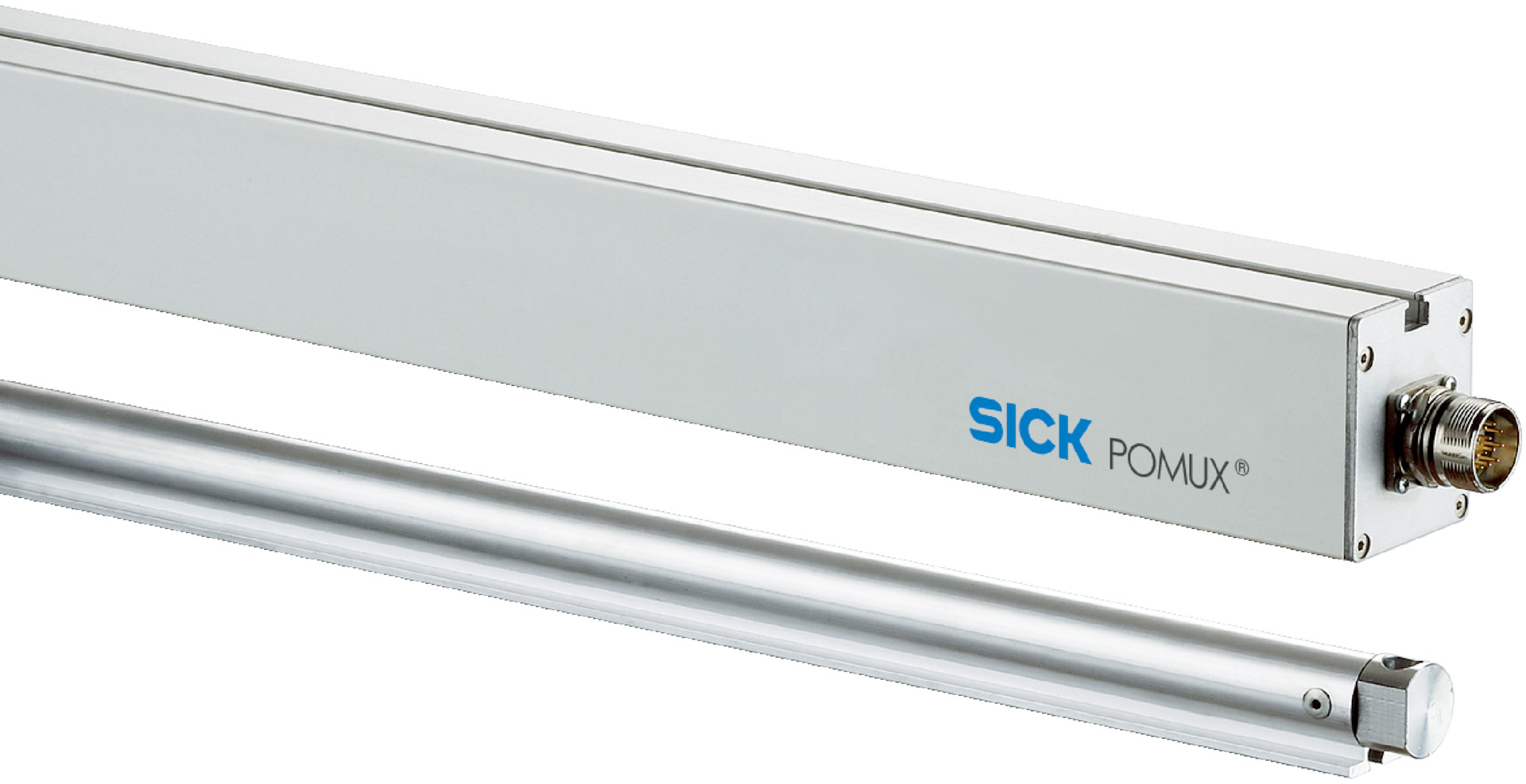

Safety Position Sensor KHK53-AXT00548 | 548 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
The Safety Position Sensor KHK53-AXT00548 offers a measuring range of up to 548 m with a high resolution of 0.1 mm, making it ideal for industrial automation and safety-critical applications. With an IP66 rated enclosure, it withstands harsh environments while providing reliable performance. This sensor is perfect for precise position measurement in demanding conditions, ensuring safety and accuracy in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Position Sensor KHK53-AXT00548 | 548 m Measuring Range | 0.1 mm Resolution | IP66 Rated | by SICK
Brand: SICK
SKU: 1035448
Alternatively Known As: Safety Position Sensor, Linear Position Sensor, Industrial Position Transducer, SSI Position Sensor
Technical Specifications
- Measuring range: 0 m to 548 m
- Resolution: 0.1 mm
- Repeatability: 1 mm
- Measurement accuracy: ± 2000 + ME (Tu-25°C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: Cable, 12-wire, 5 m
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -30°C to +70°C
- Storage temperature range: -40°C to +85°C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.7 kg
Key Features
- Measuring range up to 548 m
- High resolution of 0.1 mm
- Repeatability of 1 mm
- Robust IP66 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +70°C
- Resistance to shocks up to 30 g and vibration up to 10 g
- Communication via SSI interface with 24 Bit gray code
- Fast position forming time of +0.8 ms
- Low current consumption of 250 mA
- Cable connection with 12-wire, 5 m length
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety sensors and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring high reliability
- Environments requiring robust and accurate linear position sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT00548 Safety Position Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
