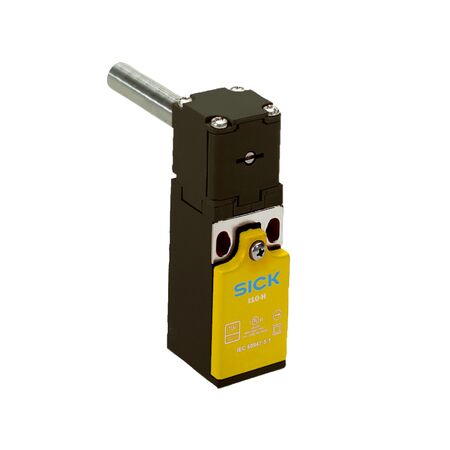

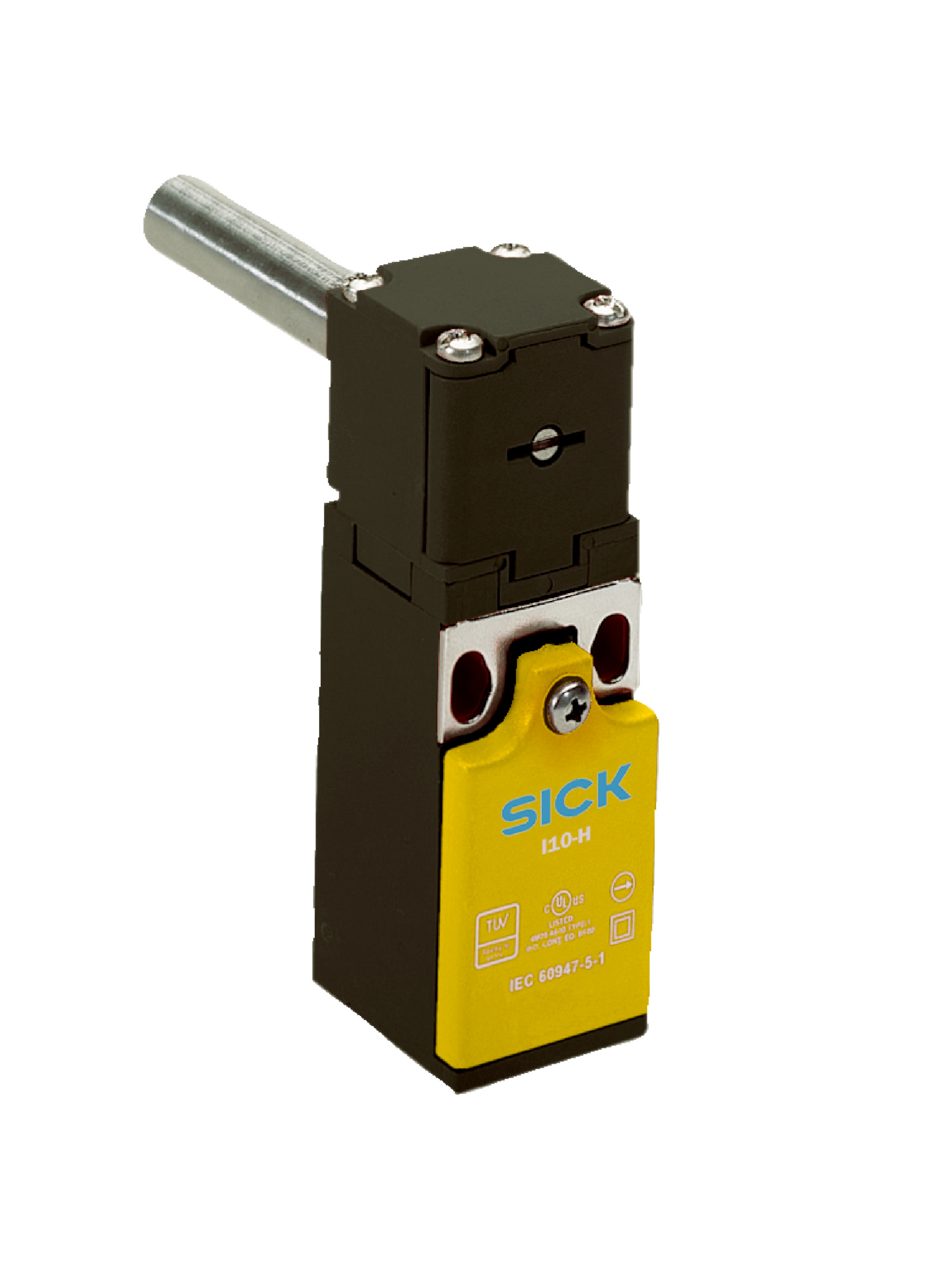

Safety Position Switch i10-HA113 | Positive Action N/C & N/O Contacts | IP67 Rated | by SICK
The i10-HA113 safety position switch features positive action N/C and N/O contacts, ensuring reliable switching for industrial safety systems. With an adjustable switching angle from 3° to 11° and a robust IP67 rated enclosure, it's perfect for machinery safety interlocks and automation equipment. Designed for high actuation frequency, this switch operates efficiently in a wide temperature range from -20°C to +80°C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 1
- N/O contacts: 1
- Actuation frequency: ≤ 3,600 per hour
- Actuation torque: ≥ 0.08 Nm
- Directions of rotation: 2
- Switching angle: Adjustable 3° to 11°
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 1 x M16
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 1 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced polyester
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: -20°C to +80°C
- Storage temperature: -20°C to +80°C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.12 kg
Key Features
- Positive action N/C and N/O contacts for reliable switching
- Adjustable switching angle from 3° to 11°
- Slow action switching element for precise operation
- High actuation frequency up to 3,600 operations per hour
- Robust glass-fiber reinforced polyester housing
- IP67 rated enclosure for protection against dust and water
- Wide ambient operating temperature range from -20°C to +80°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment with safety-related control functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- High reliability minimizes downtime and resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK i10-HA113 safety switch is available for immediate purchase, ideal for industrial safety and automation applications.
