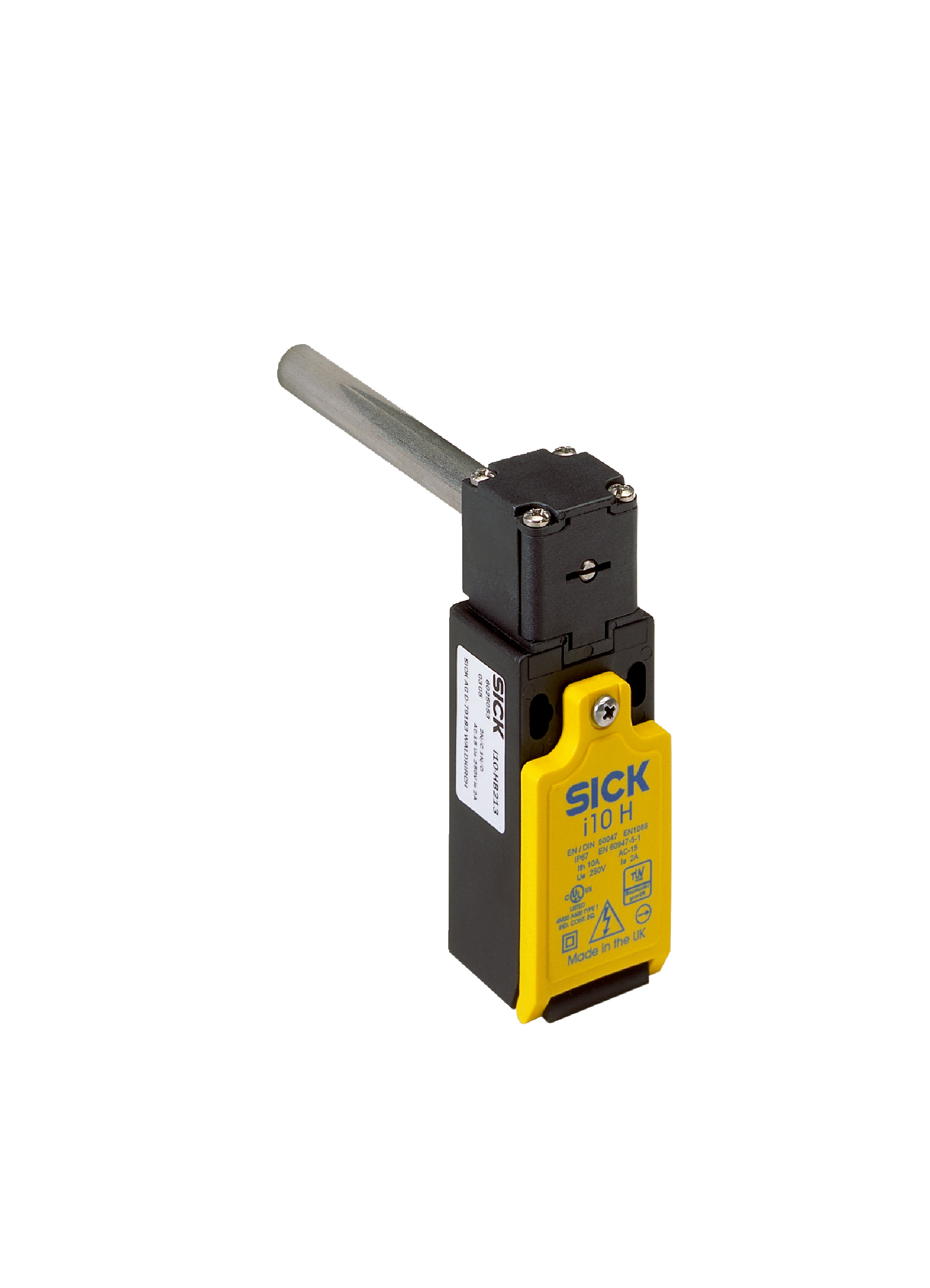

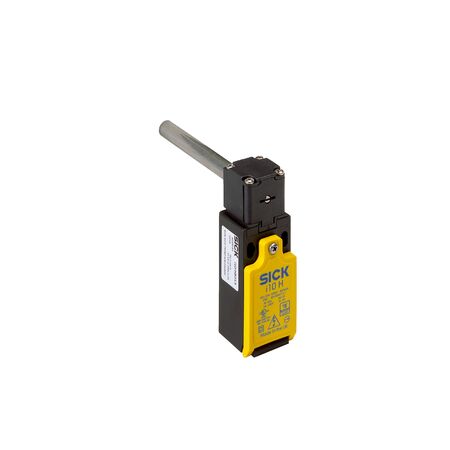

Safety Position Switch i10-HB213 | 2 N/C & 1 N/O Contacts | IP67 Rated | Adjustable Angle 5° to 14° | by SICK
The i10-HB213 Safety Position Switch is designed for industrial safety systems, featuring 2 positive action normally closed contacts and 1 normally open contact. With an adjustable switching angle from 5° to 14° and an IP67 rated enclosure, it ensures reliable operation in harsh environments, making it ideal for machinery safety interlocks and automation equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 1
- Actuation frequency: ≤ 3,600 per hour
- Actuation torque: ≥ 0.08 Nm
- Directions of rotation: 2
- Switching angle: Adjustable 5° to 14°
- B10d parameter: 2 x 10^6 switching cycles (small load)
- Type: Type 1 (EN ISO 14119)
- Actuator coding level: Uncoded (EN ISO 14119)
- Safe state in event of fault: No internal fault detection; fault detection by connected safety logic unit
- Safe series connection: None, only individual wiring with diagnostics
- Connection type: Cable gland, 1 x M16
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V AC
- Short-circuit protection: 3 A gG
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA (5 V DC)
- Mechanical life: 1 x 10^6 switching cycles
- Housing material: Glass-fiber reinforced polyester
- Enclosure rating: IP67 (IEC 60529)
- Ambient operating temperature: –20 °C to +80 °C
- Storage temperature: –20 °C to +80 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.17 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 1 normally open (N/O) contact
- Adjustable switching angle from 5° to 14°
- Slow action switching element for reliable operation
- IP67 rated enclosure for protection against dust and water
- Glass-fiber reinforced polyester housing for durability
- Actuation frequency up to 3,600 operations per hour
- Suitable for use in AC-15/DC-13 categories with rated currents of 3 A (240 V AC) and 2 A (24 V DC)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with relevant safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment with safety-related control functions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- IP67 rating ensures long service life in harsh environments, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK i10-HB213 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications requiring reliable position monitoring.
