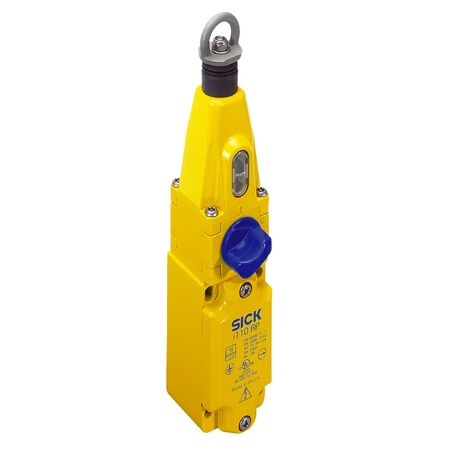

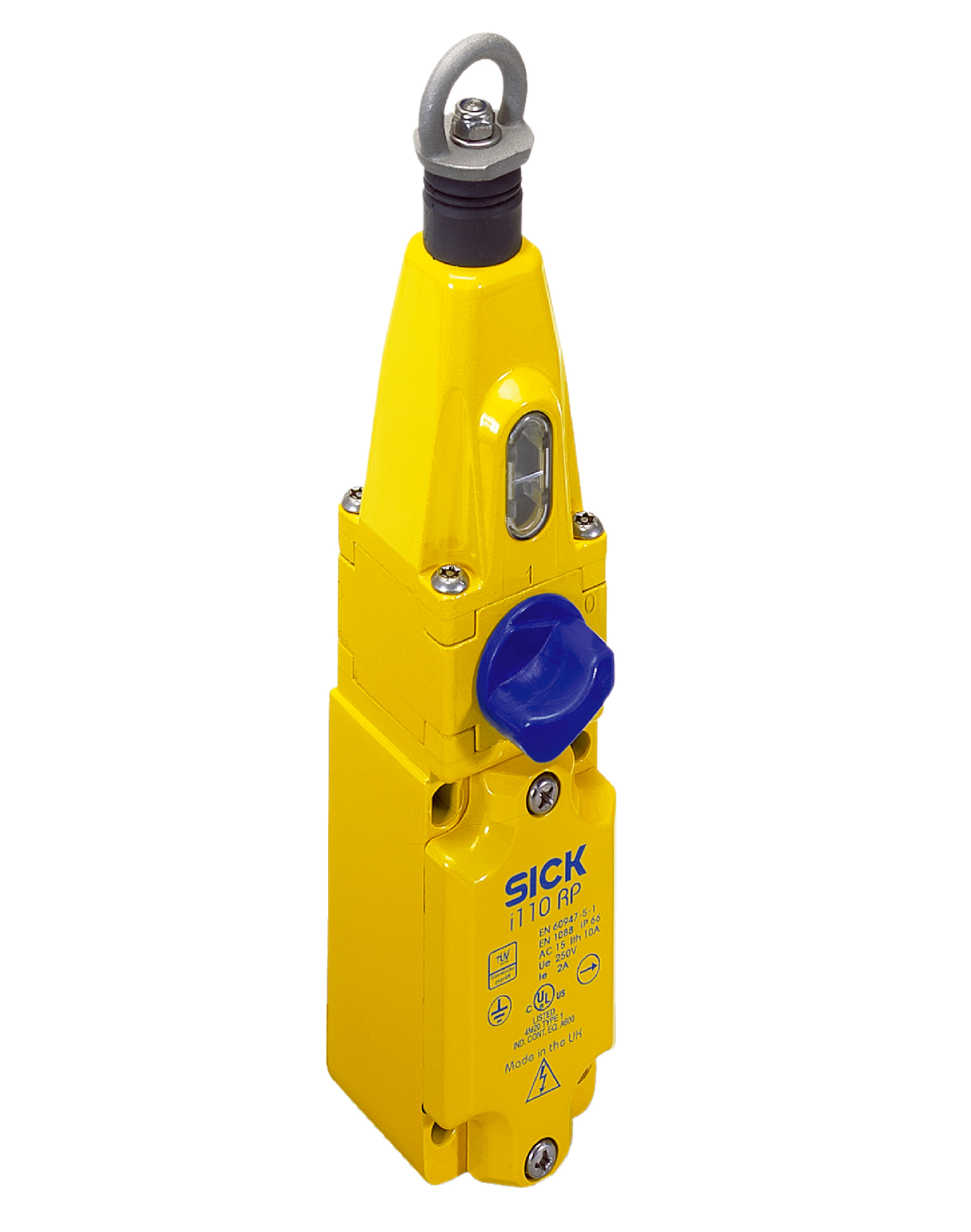

Safety Position Switch i110-RP223 | 2 N/C & 2 N/O Contacts | IP66 Rated | by SICK
The Safety Position Switch i110-RP223 features 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts, making it ideal for industrial safety systems and machinery interlocks. With a robust IP66 rated enclosure and a mechanical life of 1 million switching cycles, this switch ensures reliable operation in demanding environments, providing peace of mind for automation equipment safety circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Positive action N/C contacts: 2
- N/O contacts: 2
- Actuation force: 125 N at 300 mm deflection
- Actuation frequency: up to 3,600 operations per hour
- Safe state in fault: No internal fault detection; relies on external safety logic
- Connection type: Cable gland, 1 x M20
- Conductor cross section: up to 1.5 mm²
- Switching principle: Slow action switching element
- Usage category: AC-15/DC-13 (IEC 60947-5-1)
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2,500 V
- Short-circuit protection: T6
- Switching voltage: ≥ 5 V DC
- Switching current: 5 mA at 5 V DC
- Housing material: Zinc diecast with varnished surface
- Mechanical life: 1 million switching cycles
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -25 °C to +80 °C
- Storage temperature range: -25 °C to +80 °C
- Dimensions (H x L x W): 56mm x 204mm x 40mm
- Weight: 0.84 kg
Key Features
- 2 positive action normally closed (N/C) contacts and 2 normally open (N/O) contacts
- Slow action switching element for reliable operation
- Rated operating current: 3 A (240 V AC), 2 A (24 V DC)
- High mechanical life of 1 million switching cycles
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +80 °C
- Cable gland connection with conductor cross section up to 1.5 mm²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety switch wiring and compliance with occupational health and safety standards.
Applications
- Industrial safety systems requiring reliable position monitoring
- Machinery safety interlocks
- Automation equipment safety circuits
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc diecast housing reduces need for frequent replacements
- High mechanical life minimizes waste and resource consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK i110-RP223 Safety Switch is available for immediate purchase, ideal for industrial safety and automation applications.
