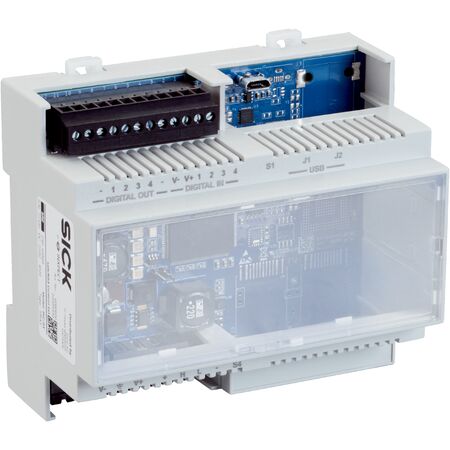

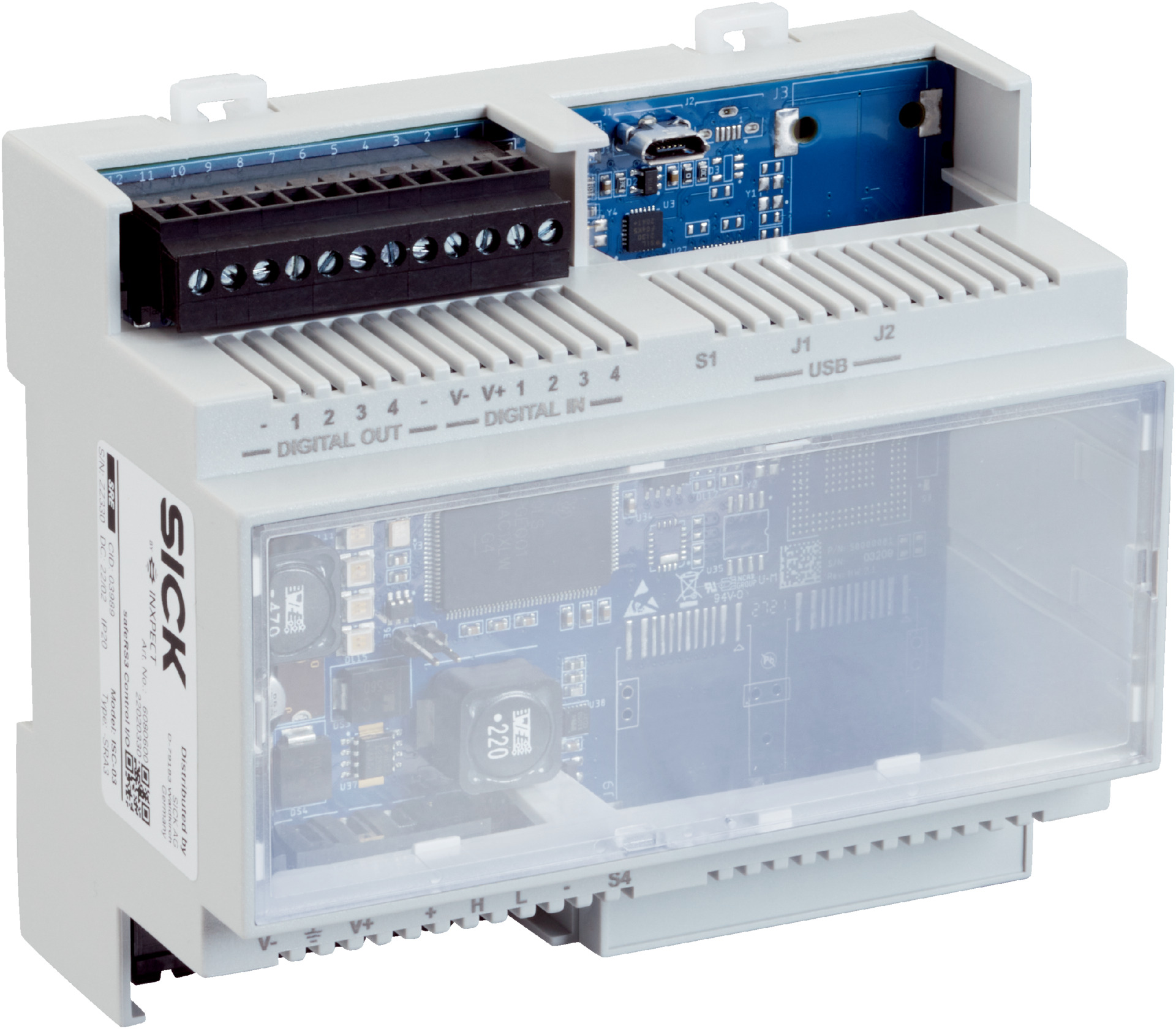

Safety Radar Control Unit SRA3-AAC100ZANI | SIL 2 Safety Integrity | 4 Monitoring Cases | by SICK
The Safety Radar Control Unit SRA3-AAC100ZANI is designed for industrial safety monitoring, featuring a safety integrity level of SIL 2 and support for up to 4 monitoring cases. With a fast response time of ≤ 100 ms and advanced functions like safe person detection and manipulation protection, it ensures reliable operation in access protection systems and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 103mm x 58mm x 105mm
- Weight: 0.8 kg
Key Features
- Supports up to 4 monitoring cases
- Response time ≤ 100 ms
- Safety integrity level SIL 2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Safe state ensured with at least one OSSD pair OFF in fault condition
- Functions include restart interlock, muting, manipulation protection, and safe person detection
- Outputs: up to 2 OSSD pairs and 4 universal outputs
- Inputs: 2 dual-channel universal inputs and 1 test input
- Configuration via PC with safeRS3 Designer software and Micro USB interface
- LED display elements for status indication
- Supply voltage 24 V DC (20 V DC to 28 V DC)
- Power consumption ≤ 33 W (control unit and six sensors)
- Enclosure rating IP20
- Operating temperature range -30 °C to +60 °C
- Detection method: FMCW radar for motion detection
- Bandwidth 60.6 GHz to 62.8 GHz
- Radio class 2 compliant with 2014/53/EU RED
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety systems and electrical standards.
Applications
- Industrial safety monitoring
- Access protection systems
- Machine safety and automation
- Personnel detection and safety interlock
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifecycle
- Supports safe automation reducing risk of accidents and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SRA3-AAC100ZANI Safety Radar Control Unit is available for immediate purchase, ideal for industrial safety and automation applications.
