Safety Relay 115VAC | 6A Current | IP40 Protection | Compact Design by NHP
Safety relay with 115VAC control supply and 6A rated current—ideal for industrial and commercial safety systems. Built for high performance with IP40 protection and compact design for easy rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

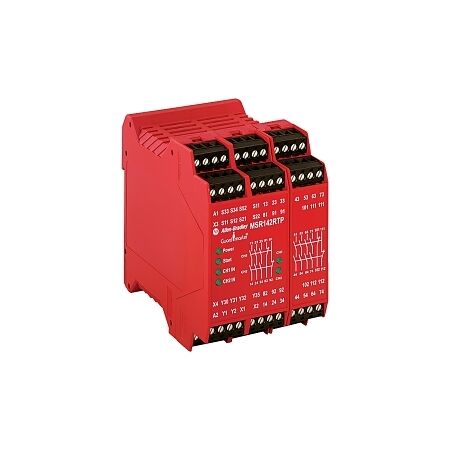

Product Name/Title: AB 440R MSR Safety Relay Single Function 115VAC 1NC/2NC/LC/SM 7NO-SFTY 4NC/2SS-AUX AM/MM
Brand: NHP
SKU: 440RG23215
Alternatively Known As: MSR Safety Relay, Safety Relay 115VAC, NHP Safety Relay
Technical Specifications
- Rated operation current: 6 A
- Voltage type for actuating: AC
- Control supply voltage: 115 V at AC 50 Hz
- Rail mounting possible: Yes
- Max shock acceleration: 10 g
- Max vibration displacement: 0.35 mm
- Max vibration frequency operational: 55 Hz
- Ambient temperature during operating: -5 to 55 °C
- Dimensions (H x L x W): 99mm x 114.5mm x 67.5mm
- Weight: 0.61 kg
Key Features
- Safety category according to EN ISO 13849-1: Category 4
- Performance level according to EN ISO 13849-1: Level e
- 7 safety-related outputs with undelayed contact
- Screw connection for electric connection
- IP40 degree of protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Commercial: Safety systems in buildings and facilities
Standards & Compliance
- Complies with relevant safety standards for industrial applications.
Environmental Benefits
- Designed to enhance safety in operational environments.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R MSR Safety Relay is available now for immediate purchase. Ideal for safety monitoring in industrial and commercial applications.
Non-Returnable & Non-Cancellable
