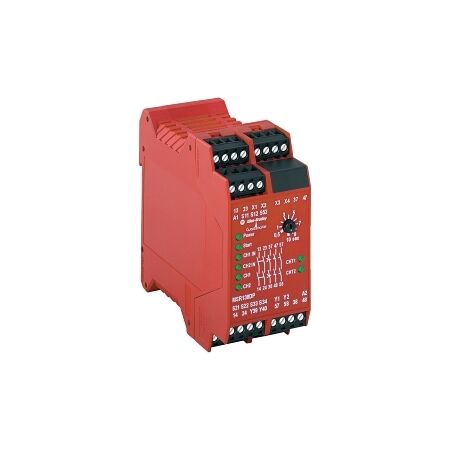

AB 440R MSR Safety Relay 24VAC/DC 1NC/2NC/LC 5NO-SFTY AM/MM 1.5-30S

Safety Relay 24VAC/DC | 7A Rated | IP40 Protection | Rail Mount by NHP

BRAND: NHP

SKU: 440RM23151

$605.50 List price: $804.10

+ −

30 Days Return Delivery Options

Safety relay with 7A rated operation and IP40 protection—ideal for industrial and commercial safety monitoring. Built for reliable performance, with rail mounting and screw connection for easy installation.

Description
Attachments

Product Name/Title: AB 440R MSR Safety Relay 24VAC/DC 1NC/2NC/LC 5NO-SFTY AM/MM 1.5-30S

Brand: NHP

SKU: 440RM23151

Alternatively Known As: Safety Relay, MSR Relay, Monitoring Relay

Technical Specifications

Rated operation current (IE): 7 A
Rated operation current at AC 15 230 V: 6 A
Rated operation current at DC 13 24 V: 3 A
Voltage type for actuating: AC/DC
Control supply voltage at DC: 24 V
Control supply voltage at AC 50 Hz: 24 V
Number of outputs safety-related undelayed with contact: 2
Degree of protection: IP40
Degree of protection for terminals: IP20
Max shock acceleration: 10 g
Max vibration displacement (pk-pk): 0.35 mm
Max vibration frequency operational: 55 Hz
Ambient temperature during operating: -5 to 55 °C
SIL according to IEC 61508: 3
Dimensions (H x L x W): 99mm x 114.5mm x 45mm
Weight: 0.35 kg

Key Features

Rated operation current: 7 A
Performance level according to EN ISO 13849-1: Level e
IP40 protection degree
Screw connection for electric connection
Rail mounting possible

Professional Installation Requirements

Professional installation by a qualified technician is recommended for safety compliance.

Applications

Industrial: Safety monitoring in machinery and equipment
Commercial: Safety systems in buildings and facilities

Standards & Compliance

Complies with relevant safety standards for industrial applications.

Environmental Benefits

Designed for reliable operation in various environmental conditions.

Warranty Information

Standard warranty applies.

Available Now

The AB 440R MSR Safety Relay 24VAC/DC is available now for immediate purchase. Ideal for safety monitoring in industrial and commercial applications.

440RM23151-AU-MSR-Safety-Relay-Datasheet.pdf (440RM23151-AU-MSR-Safety-Relay-Datasheet.pdf, 306 Kb) [Download]
