Safety Relay 6A 110V DC Coil | Forcibly Guided Contacts | IP20 Rated by NHP

BRAND: NHP
SKU: 7S1491100310
$280.80 List price: $372.90
+ −
30 Days Return Delivery Options
Safety relay with 6A rating and 110V DC coil—ideal for industrial and commercial safety systems. Built for enhanced safety with forcibly guided contacts and IP20 protection.

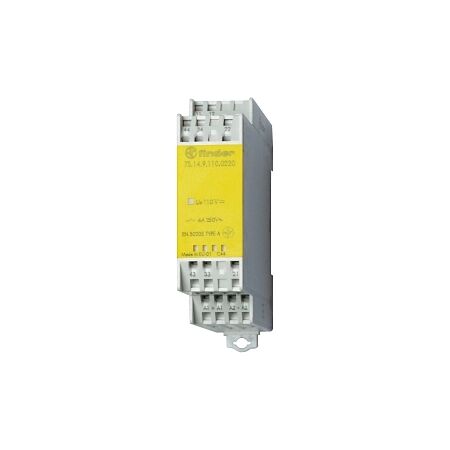

Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 110V DC Coil 3 N.O. 1 N.C. Contacts

Brand: NHP

SKU: 7S1491100310

Alternatively Known As: Safety Modular Relay, Switching Relay

Technical Specifications
  • Nominal Current: 6 A
  • Nominal Voltage AC: 250 V
  • Number of Normally Closed Contacts: 3
  • Number of Normally Open Contacts: 1
  • Rated Switching Power at AC-1: 1500 VA
  • Rated Switching Power at AC-15 (230 V): 700 VA
  • Breaking Capacity at DC-1 (30 V): 6 A
  • Breaking Capacity at DC-1 (110 V): 0.6 A
  • Voltage Type for Actuating: DC
  • Control Supply Voltage (DC): 110 V
  • Rated Control Supply Voltage (DC): 138-77 V
  • Type of Electric Connection: Spring clamp connection
  • Electrical Life at Un in Service Cycles: 100000 cycles
  • Degree of Protection: IP20
  • Mechanical Life Service Cycles: 10000000 cycles
  • Max Shock Acceleration: 20 g
  • Max Shock Duration: 8 ms
  • Max Vibration Acceleration: 10 m/s²
  • Max Vibration Frequency Operational: 200 Hz
  • With Detachable Clamps: No
  • Operating Temperature: -40-70 °C
  • Dimensions (H x L x W): 78.8mm x 96mm x 22.5mm
  • Weight: 0.5 kg
Key Features
  • Forcibly guided contacts for enhanced safety.
  • Rated for 6A with a 110V DC coil.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Safety systems in machinery and automation
  • Commercial: Control systems requiring safety relays
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Designed for long operational life, reducing waste and resource consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for industrial and commercial safety systems.

Non-Returnable & Non-Cancellable

7S1491100310-AU-Safety-Modular-Relay-Datasheet.pdf (7S1491100310-AU-Safety-Modular-Relay-Datasheet.pdf, 277 Kb) [Download]
