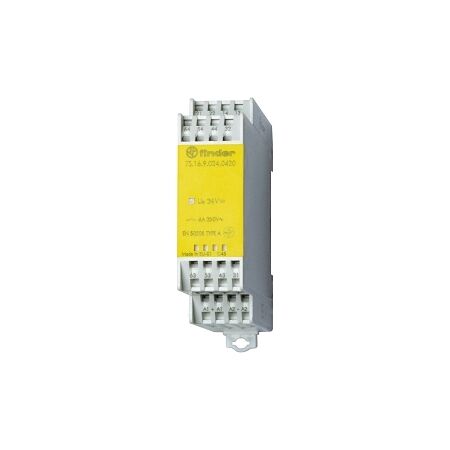

Safety Relay 6A 110V DC Coil | Forcibly Guided Contacts | Spring Clamp by NHP

BRAND: NHP
SKU: 7S1691100420
$287.50 List price: $381.70
+ −
30 Days Return Delivery Options
Safety relay with 6A nominal current and 110V DC coil—ideal for industrial and commercial safety systems. Built for enhanced safety with forcibly guided contacts and easy installation via spring clamp connection.

Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 110V DC Coil 4 N.O. 2 N.C. Contacts

Brand: NHP

SKU: 7S1691100420

Alternatively Known As: Safety Relay, Modular Relay, Switching Relay

Technical Specifications
  • Nominal Current: 6 A
  • Nominal Voltage AC: 250 V
  • Number of Normally Closed Contacts: 4
  • Number of Normally Open Contacts: 2
  • Rated Switching Power at AC-1: 1500 VA
  • Rated Switching Power at AC-15 (230 V): 700 VA
  • Breaking Capacity at DC-1 (30 V): 6 A
  • Breaking Capacity at DC-1 (110 V): 0.6 A
  • Voltage Type for Actuating: DC
  • Control Supply Voltage (DC): 110 V
  • Rated Control Supply Voltage (DC): 77-138 V
  • Type of Electric Connection: Spring clamp connection
  • Electrical Life at Un in Service Cycles: 100000 cycles
  • Degree of Protection: IP20
  • Mechanical Life Service Cycles: 10000000 cycles
  • Max Shock Acceleration: 20 g
  • Max Shock Duration: 8 ms
  • Max Vibration Acceleration: 10 m/s²
  • Max Vibration Frequency Operational: 200 Hz
  • With Detachable Clamps: No
  • Operating Temperature: -40-70 °C
  • Dimensions (H x L x W): 78.8mm x 96mm x 22.5mm
  • Weight: 0.5 kg
Key Features
  • Forcibly guided contacts for enhanced safety.
  • High electrical and mechanical life.
  • Spring clamp connection for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety.
Applications
  • Industrial: Safety systems in machinery and equipment
  • Commercial: Automation and control systems
Standards & Compliance
  • Complies with relevant safety standards for electrical devices.
Environmental Benefits
  • Designed for energy efficiency and long service life.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for industrial and commercial safety applications.

Non-Returnable & Non-Cancellable

7S1691100420-AU-Safety-Modular-Relay-Datasheet.pdf (7S1691100420-AU-Safety-Modular-Relay-Datasheet.pdf, 277 Kb) [Download]
