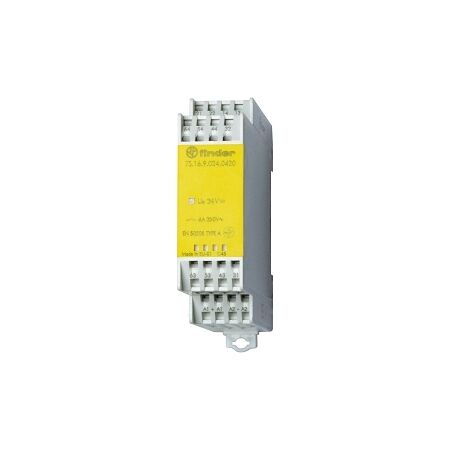

Safety Relay 6A 120V AC Coil | Forcibly Guided Contacts | High Electrical Life by NHP

BRAND: NHP
SKU: 7S1681200420
$312.80 List price: $415.40
+ −
30 Days Return Delivery Options
Safety relay with 6A 120V AC coil and forcibly guided contacts—ideal for industrial and commercial safety systems. Built for enhanced safety, with high electrical and mechanical life cycles.

Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 120V AC Coil 4 N.O. 2 N.C. Contacts

Brand: NHP

SKU: 7S1681200420

Alternatively Known As: Safety Modular Relay, Switching Relay

Technical Specifications
  • Nominal Current: 6 A
  • Nominal Voltage AC: 250 V
  • Number of Normally Closed Contacts: 4
  • Number of Normally Open Contacts: 2
  • Rated Switching Power at AC-1: 1500 VA
  • Rated Switching Power at AC-15 (230 V): 700 VA
  • Breaking Capacity at DC-1 (30 V): 6 A
  • Breaking Capacity at DC-1 (110 V): 0.6 A
  • Control Supply Voltage (AC 50 Hz): 120 V
  • Control Supply Voltage (AC 60 Hz): 120 V
  • Electrical Life at Un in Service: 100,000 cycles
  • Operating Voltage: 93-138 V
  • Degree of Protection: IP20
  • Mechanical Life: 10,000,000 cycles
  • Max Shock Acceleration: 20 g
  • Max Shock Duration: 8 ms
  • Max Vibration Acceleration: 10 m/s²
  • Max Vibration Frequency Operational: 200 Hz
  • Operating Temperature: -40 to 70 °C
  • Dimensions (H x L x W): 80mm x 60mm x 100mm
  • Weight: 1.0 kg
Key Features
  • Forcibly guided contacts for enhanced safety.
  • High electrical and mechanical life cycles.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety.
Applications
  • Industrial: Safety systems in manufacturing and automation
  • Commercial: Equipment safety and control systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for industrial and commercial safety applications.

Non-Returnable & Non-Cancellable

7S1681200420-AU-Safety-Modular-Relay-Datasheet.pdf (7S1681200420-AU-Safety-Modular-Relay-Datasheet.pdf, 277 Kb) [Download]
