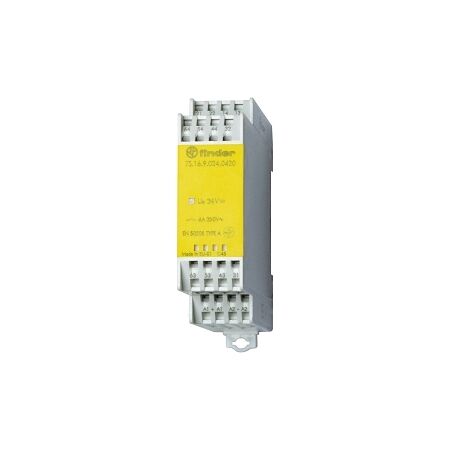

Safety Relay 6A 230V AC | Forcibly Guided Contacts | IP20 Rated by NHP
Safety relay with 6A 230V AC coil and forcibly guided contacts—ideal for industrial automation and safety circuits. Built for high electrical and mechanical life cycles, with IP20 protection for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Normally Closed Contacts: 4
- Number of Normally Open Contacts: 2
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (AC 50 Hz): 230 V
- Control Supply Voltage (AC 60 Hz): 230 V
- Electrical Life at Un in Service: 100,000 cycles
- Operating Voltage: 195-264 V
- Degree of Protection: IP20
- Mechanical Life: 10,000,000 cycles
- Max Shock Acceleration: 20 g
- Max Shock Duration: 8 ms
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 200 Hz
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 80mm x 60mm x 100mm
- Weight: 1.0 kg
Key Features
- Forcibly guided contacts for enhanced safety.
- High electrical and mechanical life cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, safety circuits
- Commercial: Machinery control, emergency stop systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for long operational life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 7S Series Safety Relay is available now for immediate purchase. Ideal for industrial and commercial safety applications.
