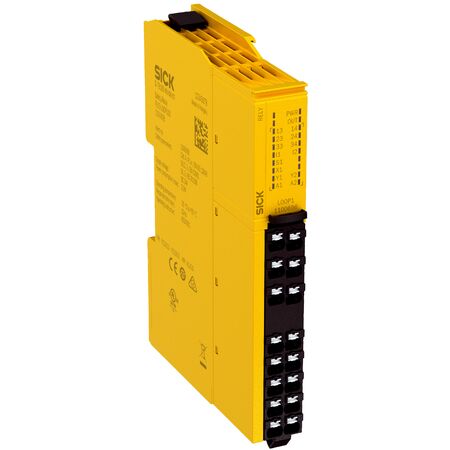

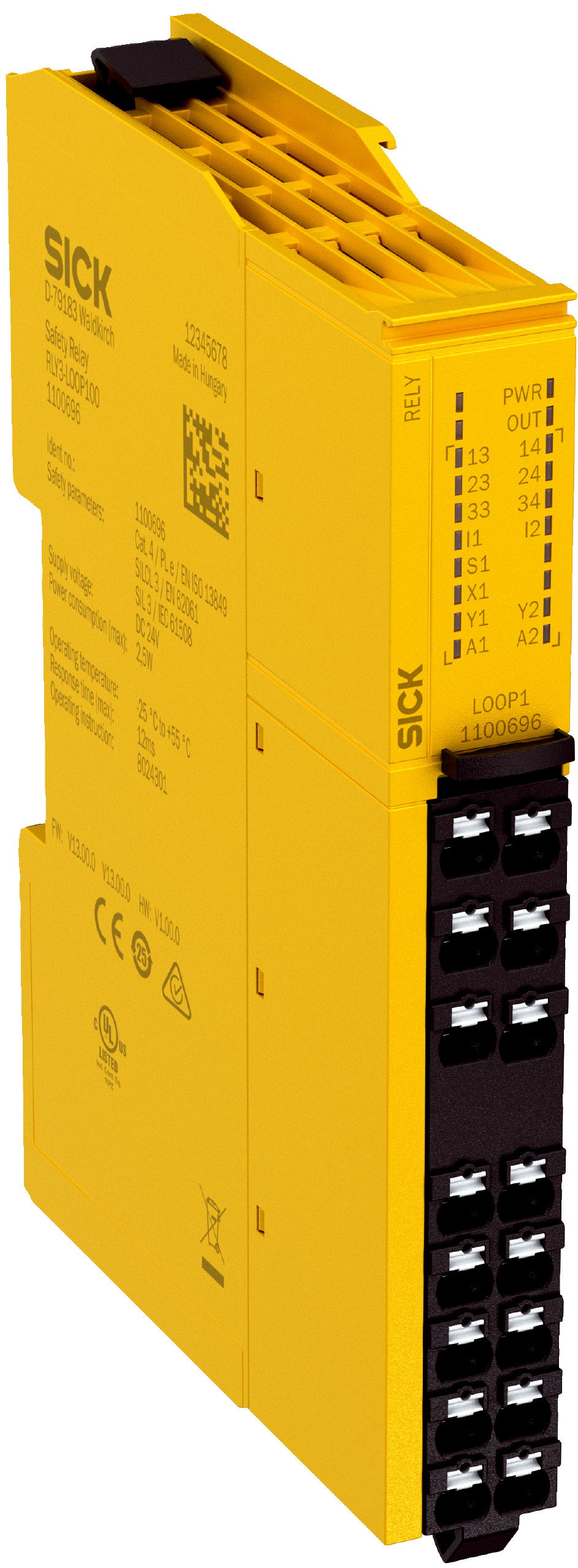

Safety Relay Evaluation Unit RLY3-LOOP100 | SIL 3 Certified | IP20 Enclosure | by SICK
The RLY3-LOOP100 Safety Relay Evaluation Unit is designed for safety-related monitoring, featuring SIL 3 certification and an IP20 enclosure. With automatic and manual reset options, it ensures reliable operation in industrial environments, making it ideal for safety control systems and applications requiring high integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC (16.8 V to 30 V)
- Power consumption: ≤ 2.5 W
- Safety inputs: 2 safety inputs plus 1 input for reset pushbutton or external device monitoring
- Outputs: 3 enabling current paths (safe), 2 application diagnostic outputs (not safe), 1 test pulse output (not safe)
- Response time for enabling current paths: 79 ms
- Contact material: Silver alloy, gold flashed
- Switching voltage range: 10 V AC/DC to 230 V AC/DC
- Switching current: 10 mA to 6 A
- Total current: 12 A
- Mechanical life: 10 million switching cycles
- Enclosure rating: IP20
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 124.6mm x 85.5mm x 18mm
- Weight: 0.16 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) and Performance level PL e (ISO 13849-1)
- Automatic and manual reset options
- Front connector with spring terminals
- LED display elements for status indication
- Hard wired DIP switch configuration
- 3 enabling current paths (safe) and 2 application diagnostic outputs (not safe)
- Test pulse output for system diagnostics
- Short-circuit protected PNP semiconductor outputs
- Mechanical life of 10 million switching cycles
- Overvoltage category III with 6 kV rated impulse withstand voltage
- Operating temperature range from -25°C to +55°C
- IP20 enclosure rating
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Evaluation unit for safety-related monitoring
- Compatible with Flexi Loop safe series connection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports safety systems that prevent accidents and reduce environmental hazards
- Low power consumption of ≤ 2.5 W reduces energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RLY3-LOOP100 Safety Evaluation Unit is available for immediate purchase, ideal for industrial safety monitoring and control applications.
