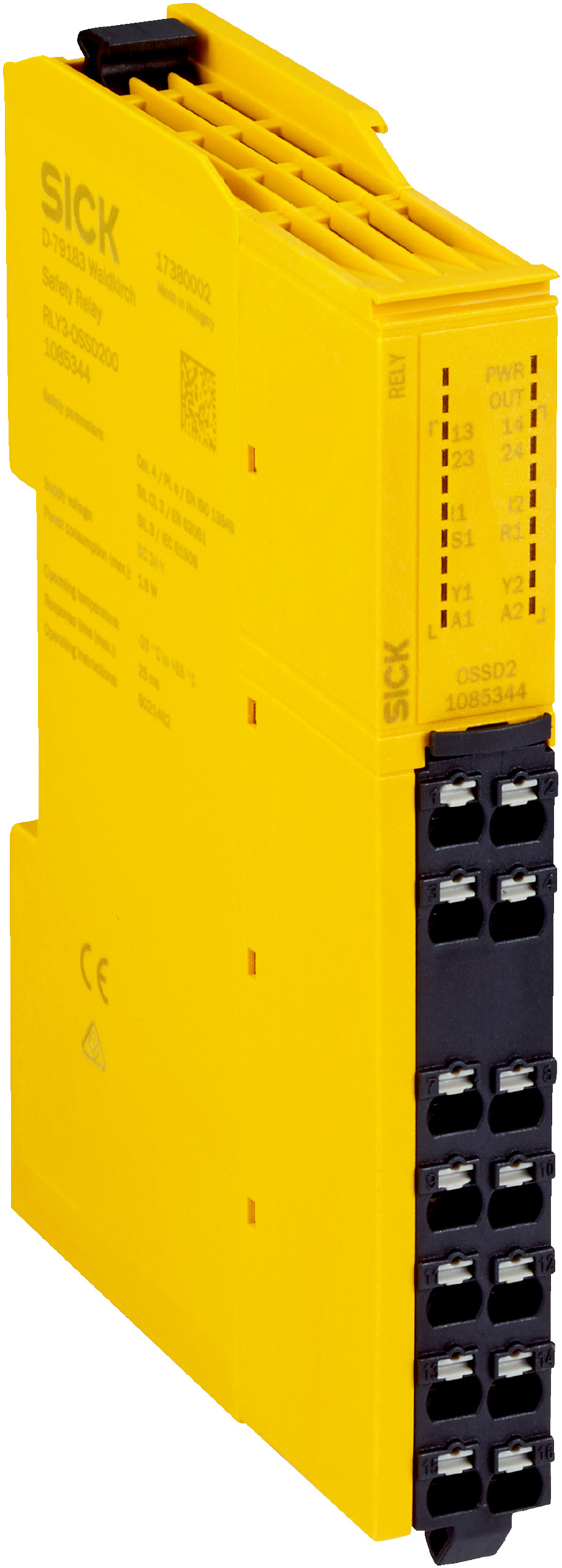

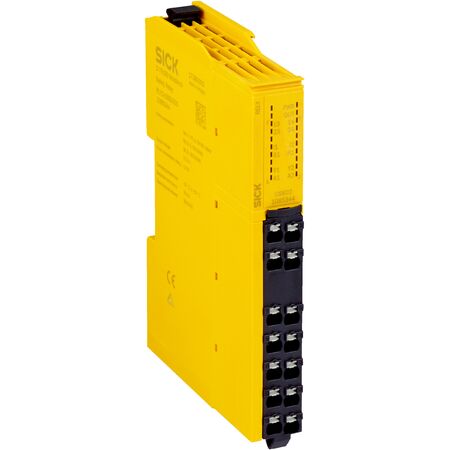

Safety Relay Evaluation Unit RLY3-OSSD200 | SIL 3 & Category 4 | 20-Year Mission Time | by SICK
The RLY3-OSSD200 safety relay evaluation unit is designed for evaluating safety sensors with OSSDs, featuring a safety integrity level of SIL 3 and a Category 4 safety category. With a remarkable 20-year mission time and low power consumption, it's perfect for industrial applications requiring reliable safety monitoring and compliance with international standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 125mm x 86mm x 18mm
- Weight: 0.13 kg
Key Features
- Compatible with safety sensors with OSSDs
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1) safety category
- Performance level PL e (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD) 1.0 x 10^-9
- Mission time 20 years (ISO 13849-1)
- Stop category 0 (IEC 60204-1)
- Sequence monitoring sensor monitoring
- Restart interlock included
- Automatic and manual reset options
- External device monitoring (EDM) supported
- Front connector with spring terminals
- 2 safety inputs and 1 input for reset pushbutton or EDM
- 2 enabling current paths (safe) and 2 application diagnostic outputs (not safe)
- 1 test pulse output (not safe)
- LED display elements
- Hard wired configuration method
- Voltage supply PELV or SELV, 24 V DC (16.8 V to 30 V)
- Power consumption ≤ 2.5 W (DC)
- Response time for enabling current paths 10 ms
- Outputs with silver alloy, gold flashed contacts
- Mechanical life 10 million switching cycles
- Enclosure rating IP20 (IEC 60529)
- Operating temperature -25 °C to +55 °C
- Storage temperature -25 °C to +70 °C
- Non-condensing air humidity ≤ 95%
- Complies with multiple international certificates including EU, UK, ACMA, CCC, cULus, EAC, cTUVus, S Mark
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and proper wiring.
Applications
- Evaluation unit for safety sensors with OSSDs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2.5 W reduces energy usage
- Long mission time of 20 years reduces waste and replacement frequency
Warranty Information
Warranty details not specified; refer to SICK standard warranty policies.
Available Now
The SICK RLY3-OSSD200 safety relay evaluation unit is available for immediate purchase, ideal for industrial safety sensor evaluation and monitoring applications.
