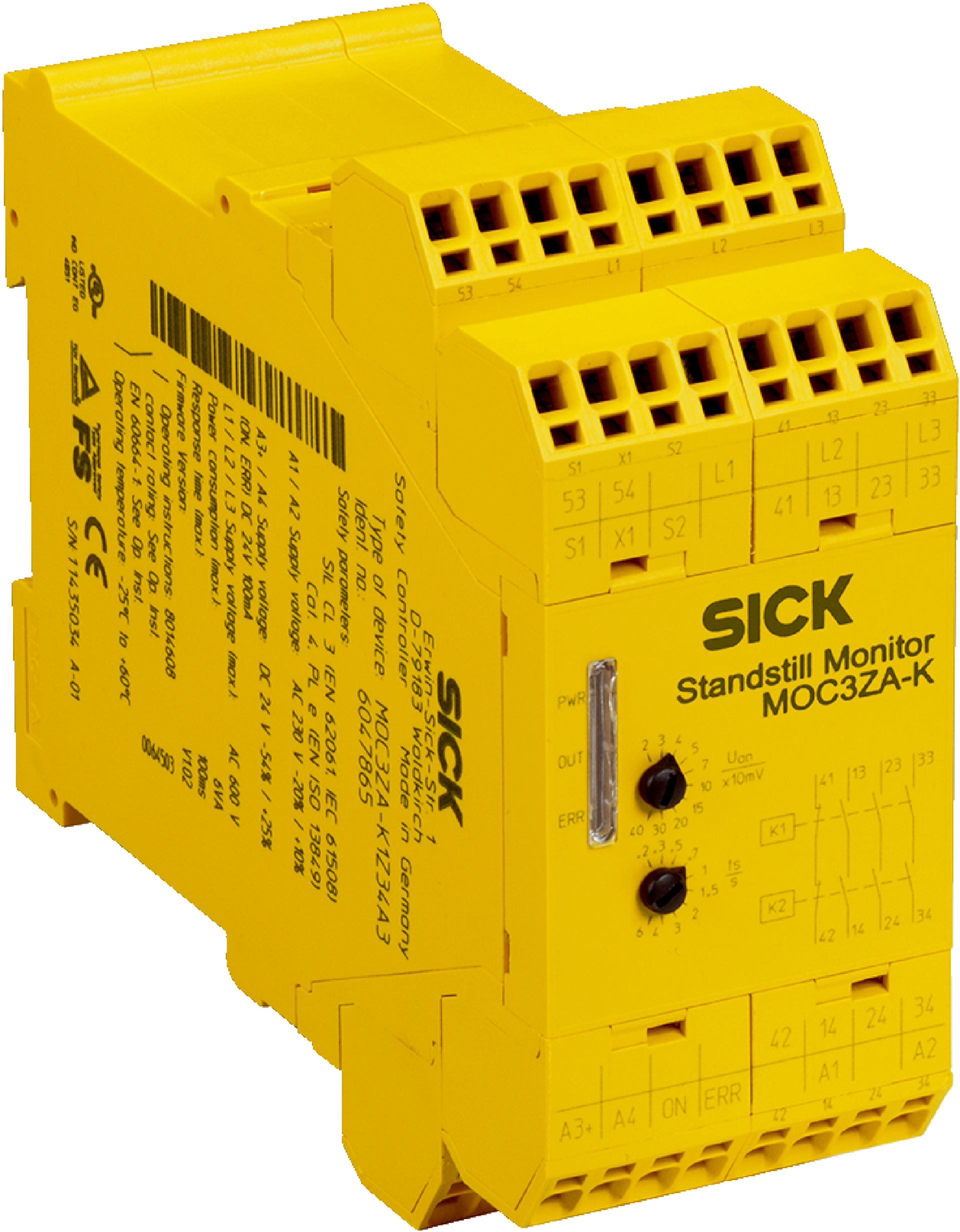

Safety Relay Module SIL 3 | Standstill Safety Function | IP40 Protection | by SICK
The Safety Relay Module SIL 3 is designed for industrial safety systems, providing a standstill safety function and high reliability with a mechanical life of over 50 million operations. Ideal for machine safety monitoring and automation systems, it features positively guided relay contacts and compact dimensions, ensuring efficient operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 400 V AC (320 V ... 440 V), 24 V DC for diagnostic outputs
- Residual ripple: 10%
- Maximum power consumption: ≤ 10 VA
- Measured/motor voltage: ≤ 690 V AC (≤ 600 V AC for UL 508 applications)
- Voltage threshold adjustable from 20 mV to 400 mV
- Standstill time adjustable from 0.2 s to 6 s
- Response time ≤ 100 ms
- Contact configuration: 3 NO and 1 NC relay contacts, positively guided
- Nominal switching voltage: 250 V AC
- Switching capacity: N/O 3 A/230 V AC, N/C 1 A/230 V AC
- Mechanical life: ≥ 50 million switching operations
- Mounting: 35 mm mounting rail according to EN 60715
- Enclosure rating: Terminals IP20, Housing IP40
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz
- Dimensions (H x L x W): 112mm x 121mm x 45mm
- Weight: 0.4 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e
- Standstill drive safety function
- Spring terminals with plug-in spring terminals for easy wiring
- Positively guided relay contacts with 3 NO and 1 NC
- High mechanical life of ≥ 50 million switching operations
- Compact dimensions: 45 mm x 112 mm x 121 mm
- IP20 rated terminals and IP40 housing protection
- Diagnostic semiconductor outputs with short-circuit protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician or technician familiar with safety relay systems and relevant electrical standards.
Applications
- Industrial safety systems requiring SIL 3 and Category 4 safety integrity
- Machine safety monitoring with standstill detection
- Automation systems requiring reliable safety relay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High reliability reduces downtime and waste from equipment failure
- Energy-efficient operation with low power consumption (≤ 10 VA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MOC3ZA-KAZ34A6 Safety Relay Module is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
