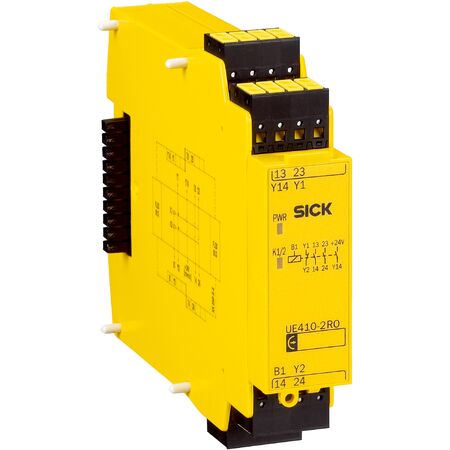

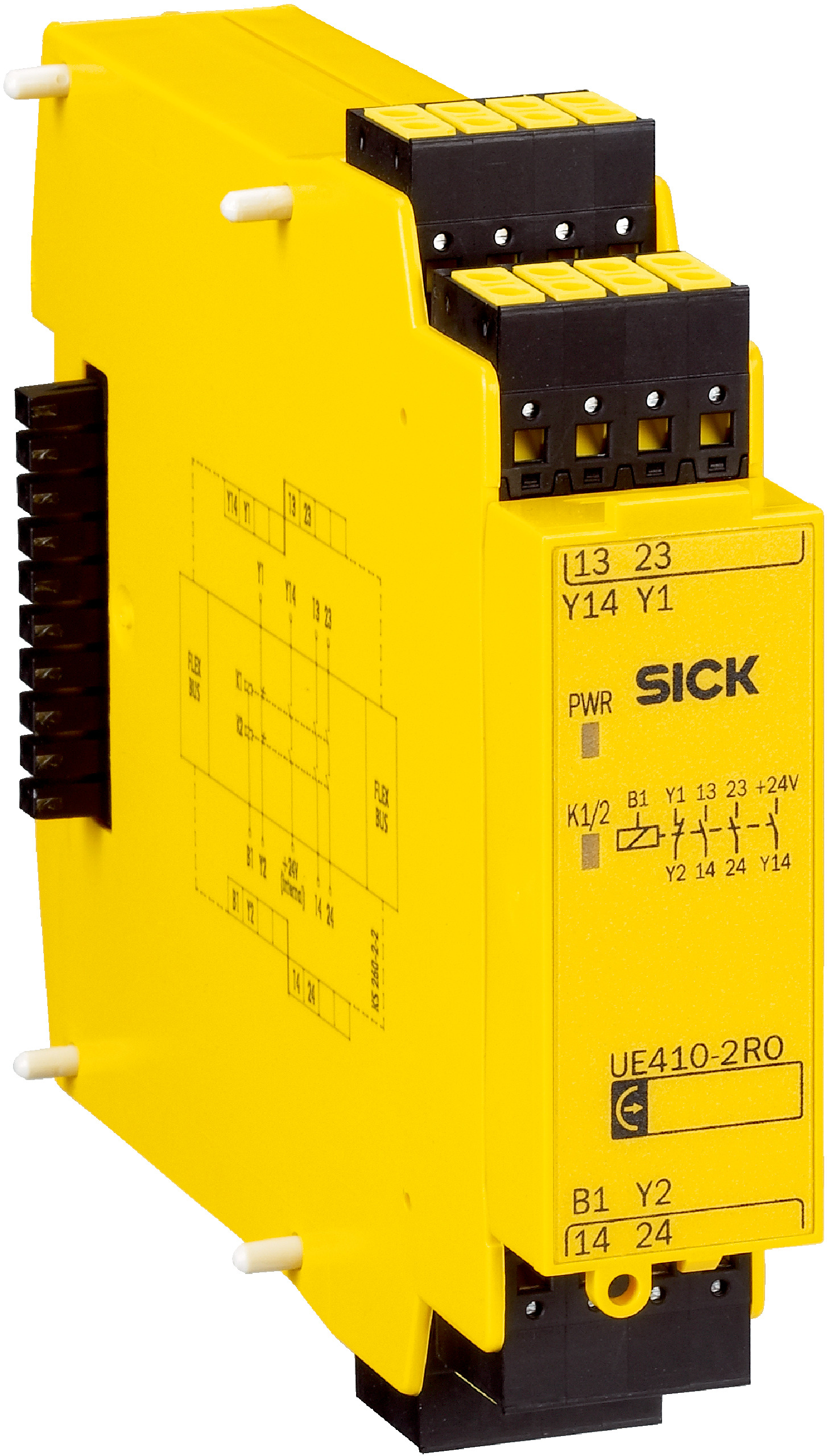

Safety Relay Module UE410-2RO401 | SIL 3 Certified | Hard Wired Configuration | IP40 Protection | by SICK
The Safety Relay Module UE410-2RO401 is designed for industrial automation safety systems, featuring a SIL 3 safety integrity level and hard wired configuration. With two enabling current paths and a robust IP40 housing, it ensures reliable performance in challenging environments, making it ideal for machine safety control circuits and protective relay applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module type: Relay module
- Configuration method: Hard wired
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Outputs: 2 enabling current paths
- Control inputs: 1 (B1)
- Enable current contacts: 2 (13/14, 23/24)
- Signaling current contacts: 1 (Y1/Y2)
- Connection type: Plug-in spring terminals
- Display elements: LEDs
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Power consumption: ≤ 1.6 W
- Overvoltage category: II (EN 61131-2)
- Switching input voltage: 18 V DC to 30 V DC
- Enabling current path switching voltage: 5 V AC/DC to 253 V AC/DC
- Current loading: 10 mA to 6 A
- Signaling current path output voltage: 16 V DC to 30 V DC
- Signaling current path output current: ≤ 75 mA
- Check-back current path switching voltage: 5 V AC/DC to 253 V AC/DC
- Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.8 mm
- Weight: 160 g (± 5%)
- Enclosure rating: Housing IP40, Terminals IP20 (EN 60529)
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: ≤ 95%, Non-condensing
- Electromagnetic compatibility: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz (EN 60068-2-64)
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.16 kg
Key Features
- Relay module with hard wired configuration
- Protective coating for resistance to sulfur and challenging ambient conditions
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- 2 enabling current paths and 1 signaling current path
- Plug-in spring terminal connections
- LED display elements for status indication
- Voltage supply via FLEXBUS+
- Low power consumption ≤ 1.6 W
- Potential-free NC and NO contacts, positively guided
- Operating temperature range from –25 °C to +55 °C
- IP40 housing and IP20 terminals protection
- Complies with multiple international certifications including EU, UK, ACMA, CCC, cULus, KC Mark, and cTUVus
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper integration into safety systems.
Applications
- Industrial automation safety systems
- Machine safety control circuits
- Protective relay applications in challenging ambient conditions
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption reduces energy usage
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UE410-2RO401 Relay Module is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
