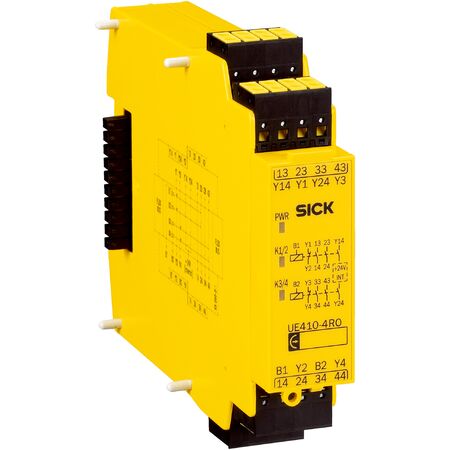

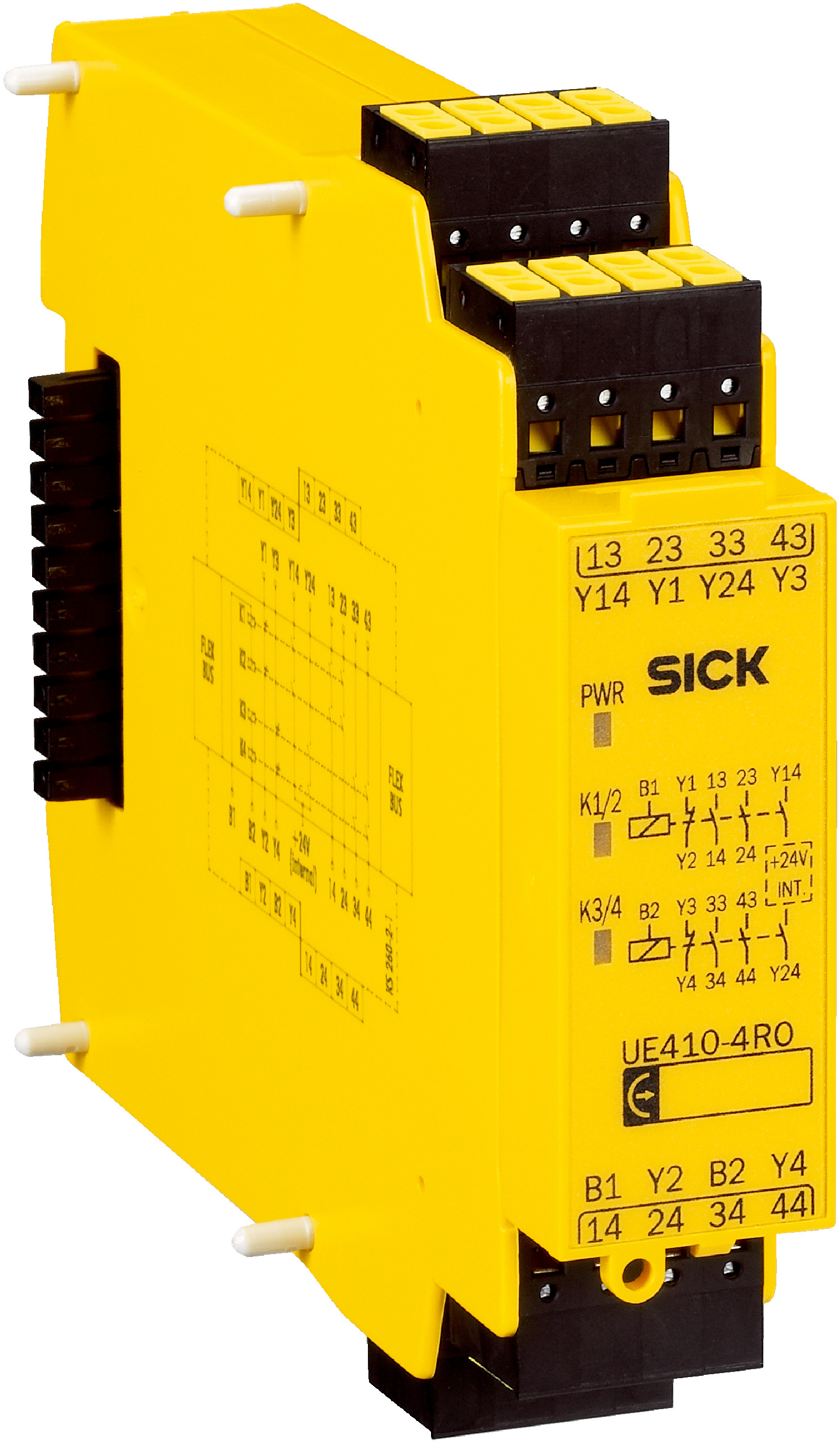

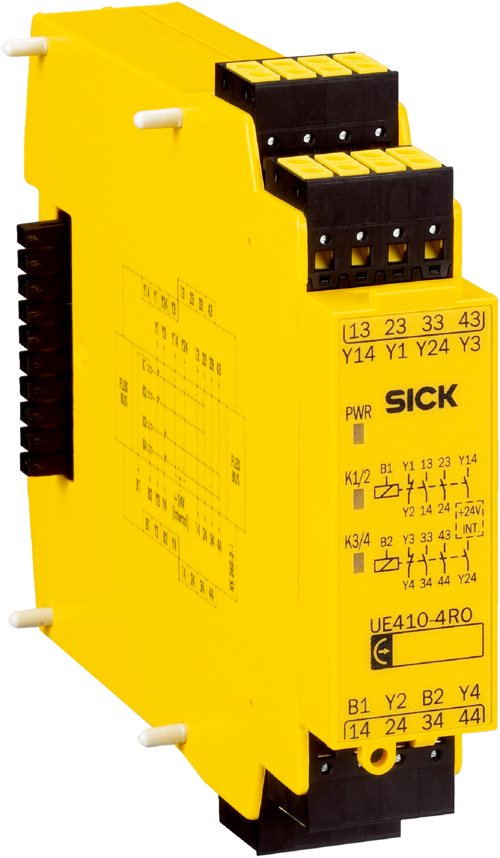

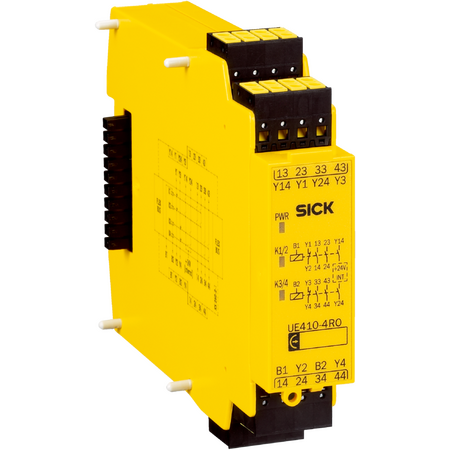

Safety Relay Module UE410-4RO4 | SIL 3 & Category 4 | 4 Enabling Current Paths | by SICK
The Safety Relay Module UE410-4RO4 is designed for industrial automation safety systems, featuring a SIL 3 safety integrity level and Category 4 compliance. With 4 enabling current paths and plug-in spring terminal connections, it ensures reliable machine safety control and process management, making it ideal for applications requiring high safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Outputs: 4 enabling current paths with potential-free NO contacts
- Control inputs: 2 (B1, B2)
- Signaling current paths: 2 with NO contacts, current-limited
- Connection type: Plug-in spring terminals
- Voltage supply: Via FLEXBUS+
- Power consumption: ≤ 3.2 W
- Switching voltage range: 5 V AC/DC to 253 V AC/DC
- Current loading: 10 mA to 6 A
- Enclosure rating: IP40 housing, IP20 terminals
- Operating temperature: –25 °C to +55 °C
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz
- Dimensions (H x L x W): 96.5mm x 120.8mm x 22.5mm
- Weight: 0.186 kg
Key Features
- Relay module with hard wired configuration
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- 4 enabling current paths with potential-free NO contacts
- 2 control inputs (B1, B2) and 2 signaling current paths
- Plug-in spring terminal connections
- LED display elements for status indication
- Protection class III (EN 61140)
- Voltage supply via FLEXBUS+
- Power consumption ≤ 3.2 W
- Overvoltage category II (EN 61131-2)
- Enclosure rating IP40 housing, IP20 terminals
- Operating temperature range –25 °C to +55 °C
- Vibration resistance 5 g RMS, 5 Hz to 500 Hz
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial safety systems and electrical standards to ensure compliance and safety.
Applications
- Industrial automation safety systems
- Machine safety control
- Process control requiring high safety standards
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 3.2 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK UE410-4RO4 Relay Module is available for immediate purchase, ideal for industrial safety and automation applications.
