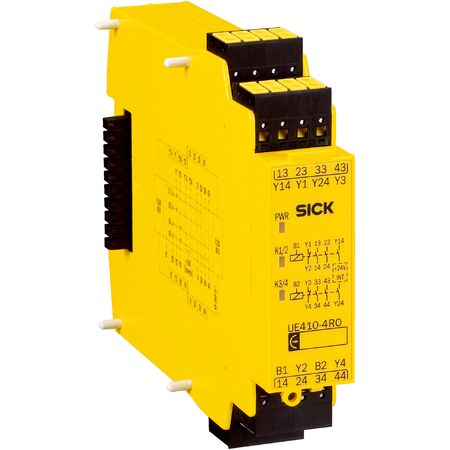

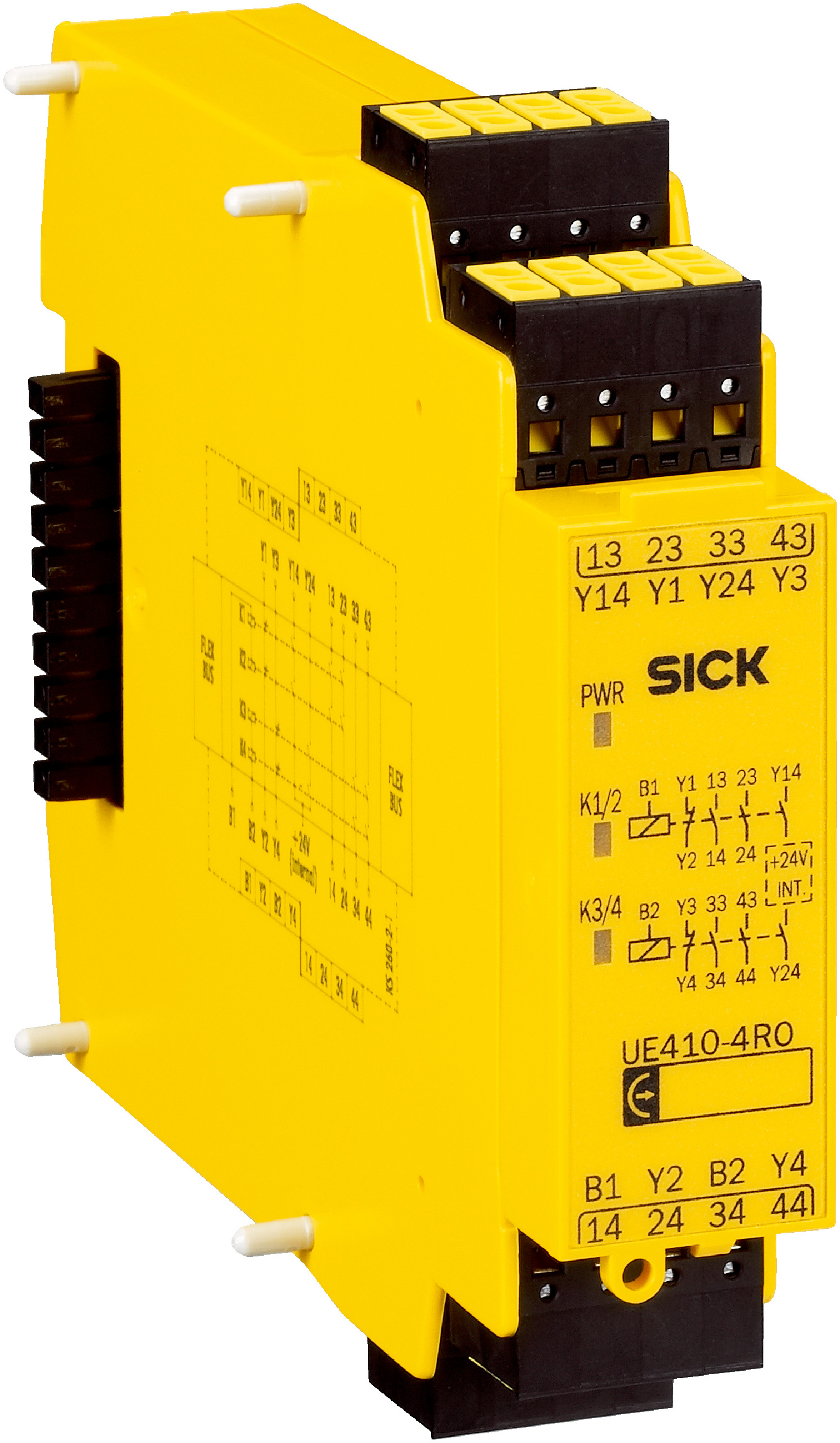

Safety Relay Module UE410-4RO401 | SIL 3 Certified | 4 Enabling Current Paths | Protective Coating | by SICK
The Safety Relay Module UE410-4RO401 is designed for industrial automation safety systems, featuring a SIL 3 safety integrity level and hard-wired configuration. With 4 enabling current paths and a protective coating for challenging environments, this relay module ensures reliable machine safety control and is ideal for professionals in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module type: Relay module
- Configuration method: Hard wired
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Outputs: 4 enabling current paths (potential-free NO contacts, positively guided)
- Control inputs: 2 (B1, B2)
- Signaling current paths: 2 (NO contacts connected to internal 24 V DC)
- Connection type: Plug-in spring terminals
- Display elements: LEDs
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Power consumption: ≤ 3.2 W
- Overvoltage category: II (EN 61131-2)
- Switching voltage range: 5 V AC/DC to 253 V AC/DC
- Current loading: 10 mA to 6 A
- Output voltage for signaling paths: 16 V DC to 30 V DC
- Output current for signaling paths: ≤ 75 mA
- Enclosure rating: IP40 housing, IP20 terminals (EN 60529)
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- EMC: Class A (EN 61000-6-2, EN 55011)
- Vibration resistance: 5 g RMS, 5 Hz to 500 Hz (EN 60068-2-64)
- Dimensions (H x L x W): 96.5mm x 120.8mm x 22.5mm
- Weight: 0.186 kg
Key Features
- Relay module with hard wired configuration
- Protective coating for resistance to sulfur and challenging ambient conditions
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
- 4 enabling current paths with potential-free NO contacts, positively guided
- 2 signaling current paths with NO contacts connected to internal 24 V DC
- Plug-in spring terminal connections
- LED display elements for status indication
- Overvoltage category II (EN 61131-2)
- Protection class III (EN 61140)
- Power consumption ≤ 3.2 W
- Enclosure rating IP40 housing and IP20 terminals (EN 60529)
- Operating temperature range –25 °C to +55 °C
- Vibration resistance 5 g RMS, 5 Hz to 500 Hz (EN 60068-2-64)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
- Industrial automation safety systems
- Machine safety control
- Protective relay applications in challenging ambient conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption of ≤ 3.2 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK UE410-4RO401 Relay Module is available for immediate purchase, ideal for industrial safety and automation applications.
