Safety Relay Single Input 24VDC | 2NC OSSD 2NO | Solid State Output by NHP
Safety relay with single input and solid state auxiliary output—ideal for industrial safety monitoring. Built for machinery and equipment safety, with IP20 protection and compliance with AS/NZS 4801 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

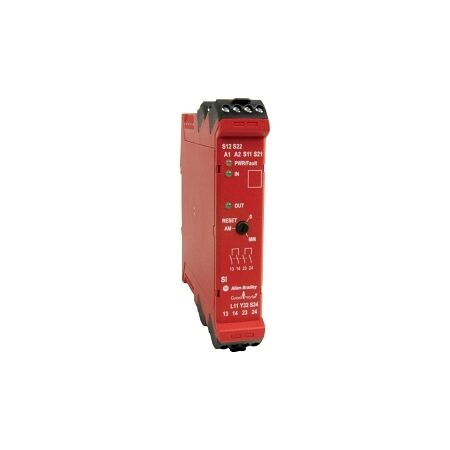

Product Name/Title: AB 440R GSR SI Safety Relay Single Input 24VDC 2NC OSSD 2NO 1 Solid State Auxiliary Output
Brand: NHP
SKU: 440RS12R2
Alternatively Known As: Safety Relay, GSR Relay, Single Input Safety Relay
Technical Specifications
- Rated operation current at AC 15 (230 V): 1.5 A
- Rated operation current at DC 13 (24 V): 2 A
- Control supply voltage: 24 V DC
- Safety category according to EN ISO 13849-1: 4
- Performance level according to EN ISO 13849-1: Level e
- Degree of protection: IP20
- Ambient temperature during operation: -5 to 55 °C
- SIL according to IEC 61508: 3
- Dimensions (H x L x W): 119.4mm x 113.6mm x 22.5mm
- Weight: 0.15 kg
Key Features
- Single input safety relay with solid state auxiliary output.
- Suitable for monitoring various safety devices including emergency stop circuits and position switches.
- IP20 rated for terminal protection.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety and compliance.
Applications
- Industrial: Safety monitoring in machinery and equipment
- Automation: Integration in safety circuits for emergency stops and position monitoring
Standards & Compliance
- Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
Environmental Benefits
- Enhances workplace safety by ensuring reliable monitoring of safety circuits.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The AB 440R GSR SI Safety Relay is available now for immediate purchase, ideal for safety monitoring in industrial applications.
