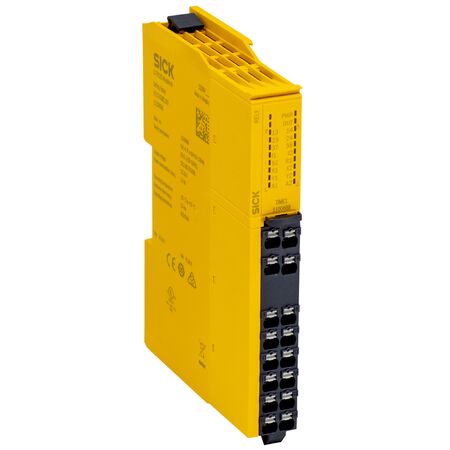

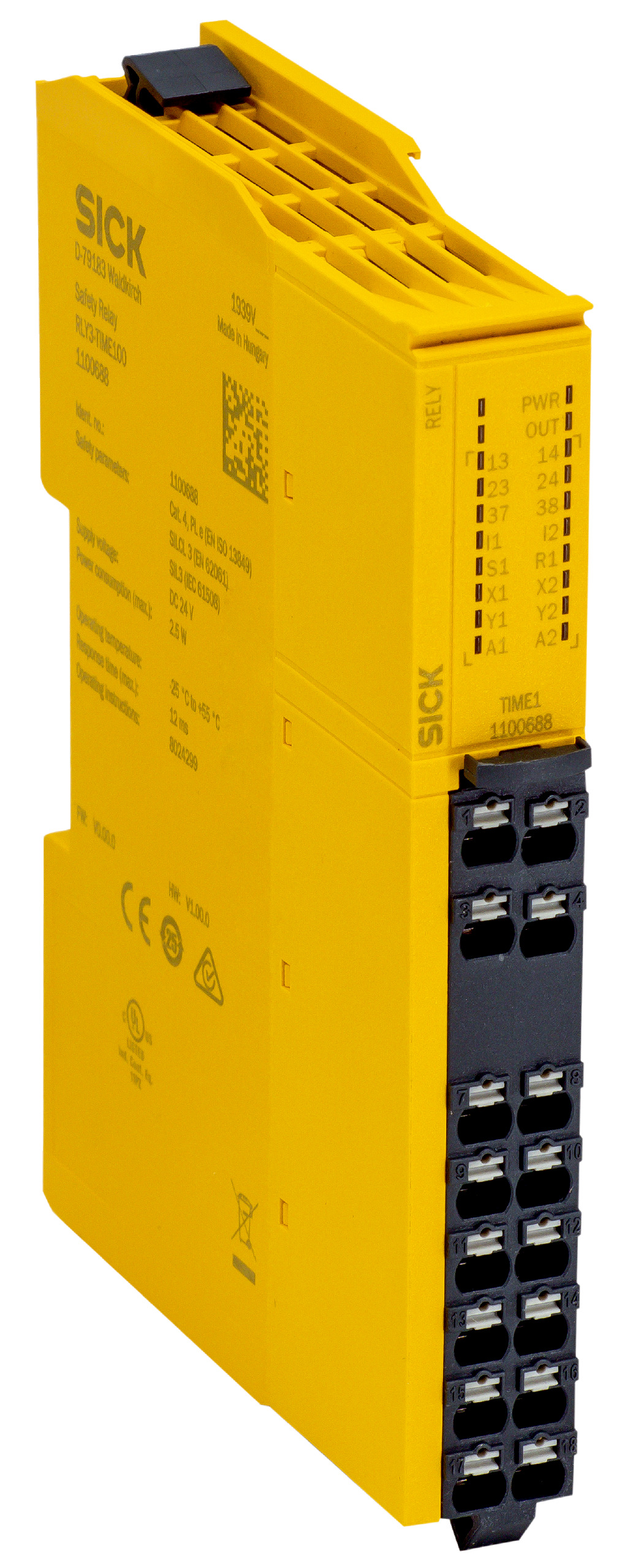

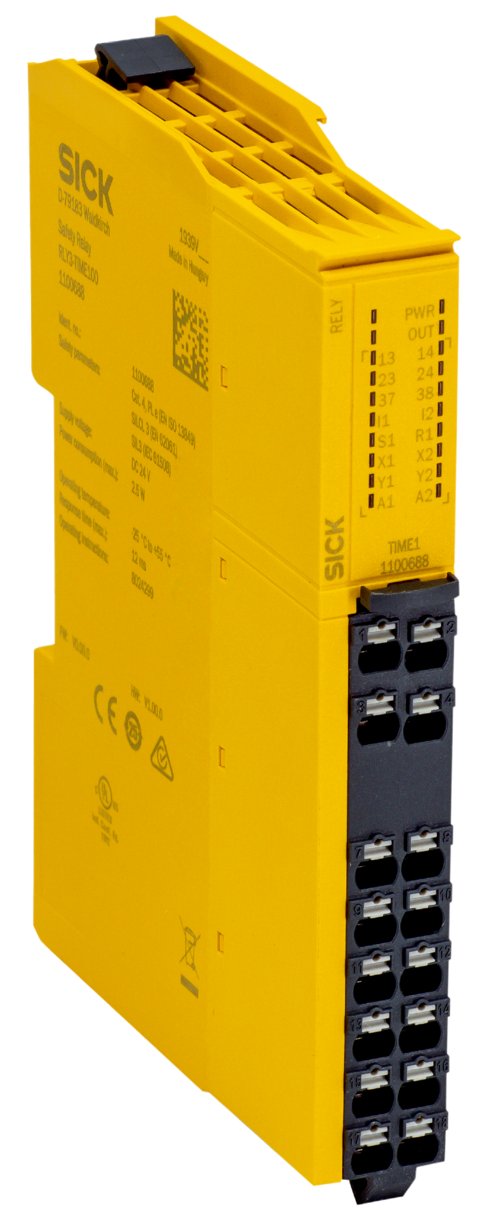

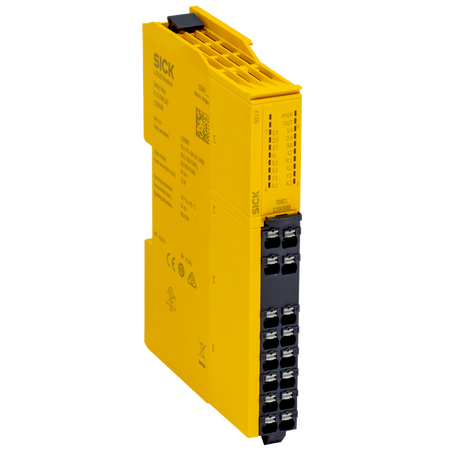

Safety Relay Timer Module | SIL 3 & Category 4 | 20-Year Mission Time | by SICK
The Safety Relay Timer Module RLY3-TIME100 is designed for high-integrity stop category 1 applications, featuring a safety integrity level of SIL 3 and compliance with Category 4 standards. Ideal for industrial environments, it offers sensor monitoring, multiple safe outputs, and a long mission time of 20 years, ensuring reliable performance and safety in critical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 124.6mm x 85.5mm x 18mm
- Weight: 0.16 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (ISO 13849-1)
- Performance level PL e (ISO 13849-1)
- PFHD (mean probability of a dangerous failure per hour): 1.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Stop category 0, 1, and 2 (IEC 60204-1)
- Sensor monitoring including discrepancy, sequence, and cross-circuit detection
- Restart interlock and automatic/manual reset
- External device monitoring (EDM)
- Front connector with spring terminals
- 2 safety inputs and 1 input for reset pushbutton or EDM
- Multiple safe and diagnostic outputs
- LED display elements
- Hard wired DIP switch configuration
- Voltage supply: PELV or SELV, 24 V DC (16.8 V ... 30 V)
- Power consumption ≤ 2.5 W
- Response time for enabling current paths: 12 ms
- Release-delayed enabling current path adjustable from 0.1 s to 30 s
- Enabling current paths with silver alloy, gold flashed contacts
- Mechanical life of 10 million switching cycles
- Enclosure rating IP20
- Operating temperature range -25 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Humidity up to 95%, non-condensing
- Interference emission and resistance compliant with IEC standards
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper configuration.
Applications
- Evaluation unit for stop category 1 applications
- Compatible with safety sensors with OSSDs
- Compatible with safety sensors with potential-free outputs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2.5 W reduces energy usage
- Long mission time of 20 years reduces waste and replacement frequency
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK RLY3-TIME100 Safety Relay Evaluation Unit is available for immediate purchase. Ideal for industrial safety applications requiring high integrity stop category 1 control.
