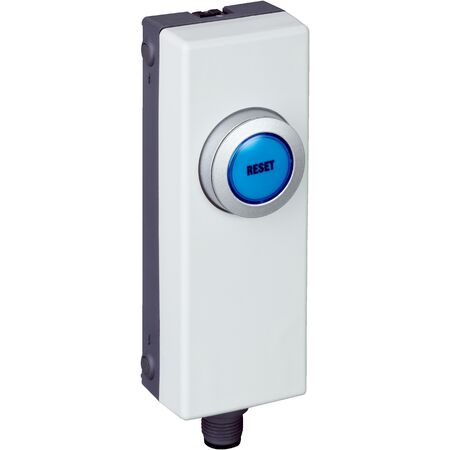

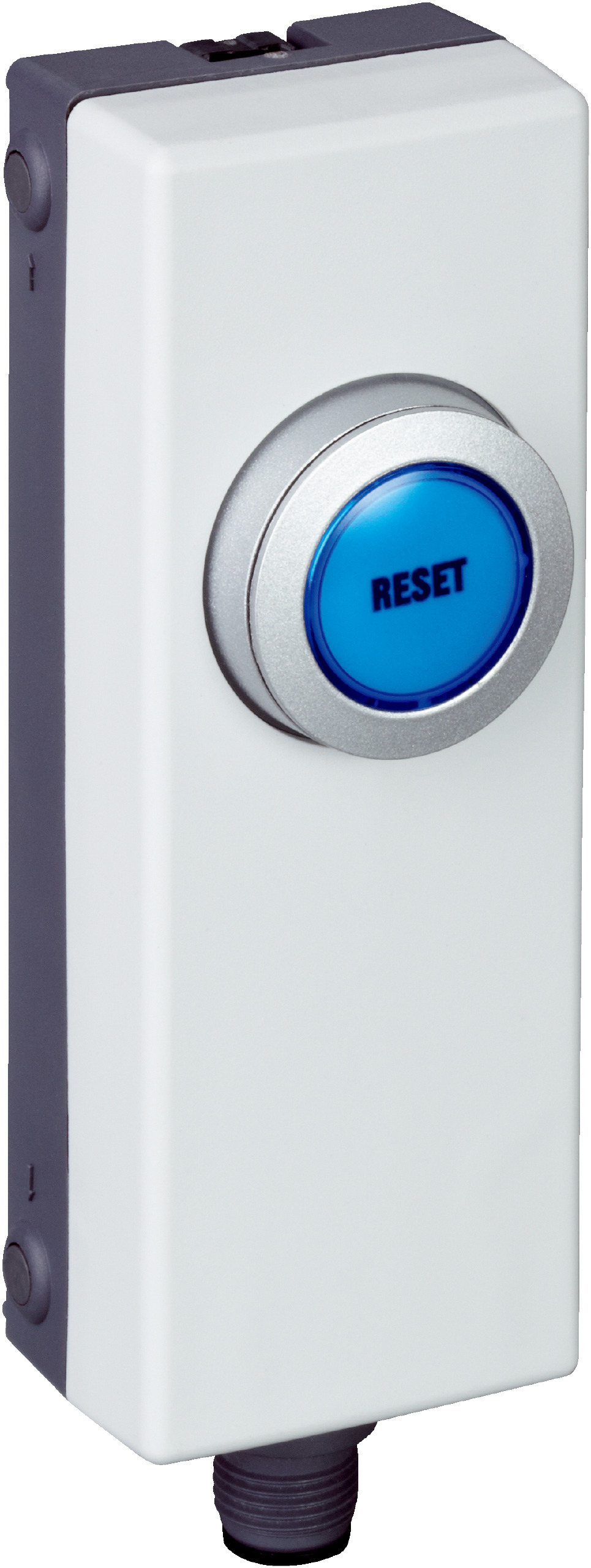

Safety Reset Pushbutton ER12-SB3C5 | Illuminable | IP65 Rated | 1 N/O Contact | by SICK
The Safety Reset Pushbutton ER12-SB3C5 is designed for industrial safety systems requiring manual reset functionality. Featuring an illuminable design and IP65 rated enclosure, it ensures reliable operation in demanding environments. With a mechanical and electrical life of 1 x 10^6 switching cycles, this pushbutton is perfect for muting and reset applications, providing safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 1 Normally Open (N/O) contact
- Reset pushbutton with 1 x 10^6 switching cycles mechanical and electrical life
- Rated operating current: 2 A at 24 V DC (DC-13 category)
- Contact material: Silver Nickel (AgNi), 5 µm gold plated
- Connection type: Plug connector, M12, 5-pin
- Coupling nut material: PBT
- Protection class: III (EN 61140)
- Switching principle: Slow action switching element
- Power consumption: 14 mA at 24 V DC
- Enclosure rating: IP65 (EN 60529)
- Operating temperature range: -25°C to +70°C
- Storage temperature range: -25°C to +80°C
- Dimensions (H x L x W): 123mm x 36mm x 40mm
- Weight: 0.106 kg
Key Features
- 1 Normally Open (N/O) contact
- Illuminable reset pushbutton
- Suitable for muting applications (with DMM4)
- Suitable for reset/override applications (with deTec4)
- Slow action switching element
- Plug connector, M12, 5-pin with PBT coupling nut
- Protection class III (EN 61140)
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial safety systems to ensure compliance with safety standards and proper integration.
Applications
- Industrial safety systems requiring manual reset
- Muting applications with DMM4
- Reset/override applications with deTec4
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable PBT housing reduces need for frequent replacements
- Low power consumption of 14 mA at 24 V DC reduces energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ER12-SB3C5 Safety Reset Pushbutton is available for immediate purchase, ideal for industrial safety and control applications requiring reliable manual reset functionality.
