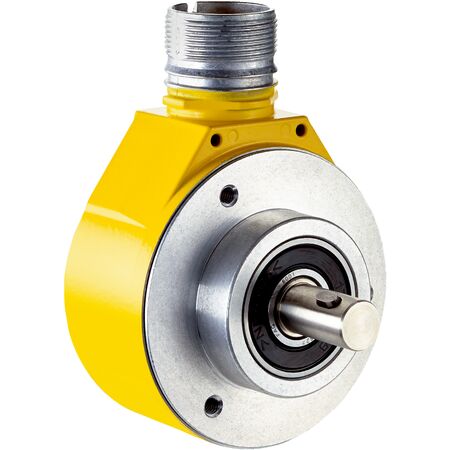

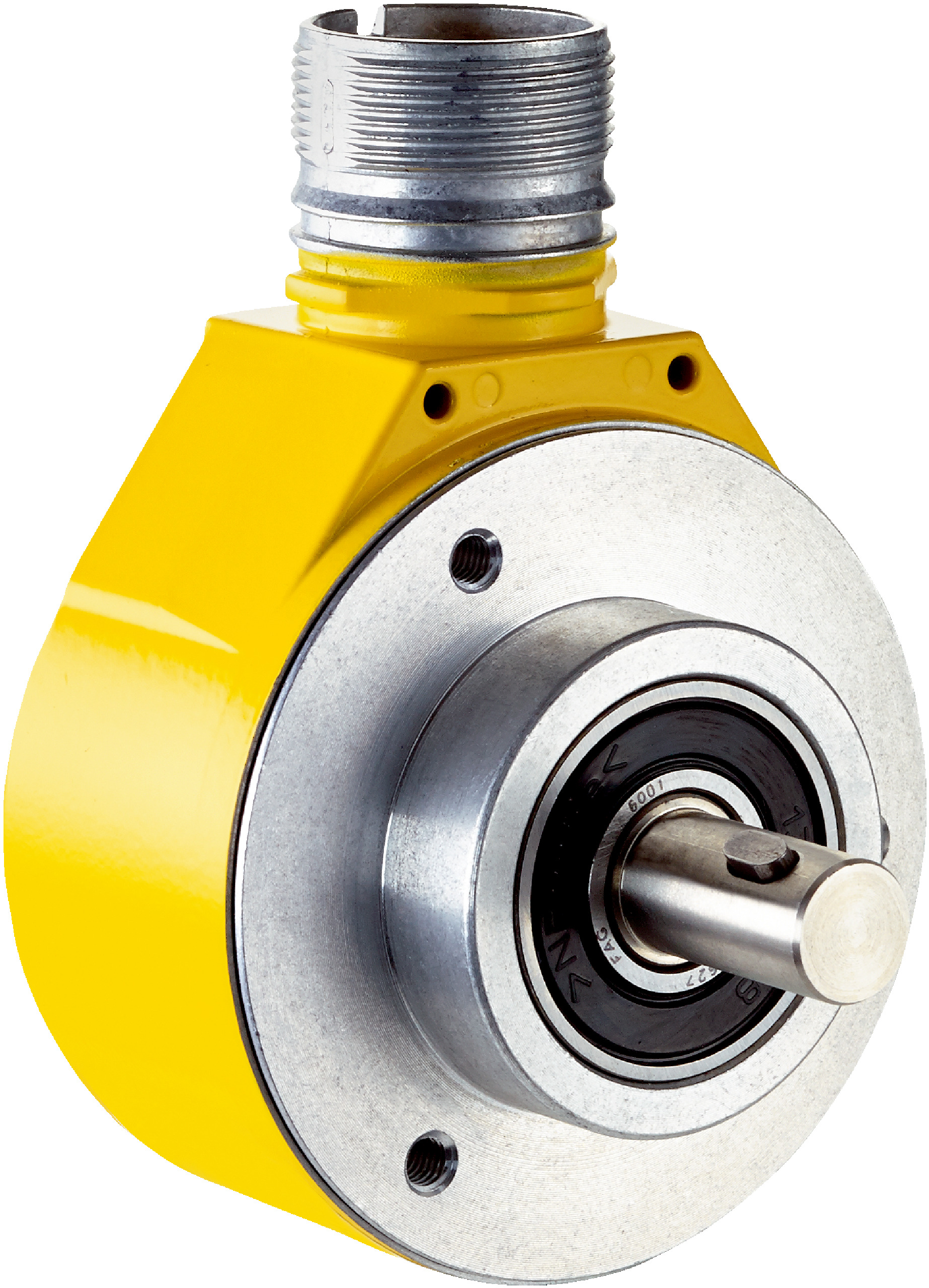

Safety Rotary Encoder AFM60S-SEKA004096 | SIL 3 & PL e Certified | High Resolution 4096 Steps | IP65 Rated | by SICK
The Safety Rotary Encoder AFM60S-SEKA004096 is designed for industrial automation, featuring SIL 3 and PL e safety integrity levels. With a high resolution of 4,096 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in hazardous environments. Ideal for motion control systems and robotics, this encoder offers robust mechanical design and low power consumption, making it a perfect choice for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 4,096 steps per revolution, 4,096 revolutions (12 bit x 12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with feather key
- Operating speed: ≤ 9,000 min⁻¹
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Protection class: III (DIN EN 61140)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -30 °C to +95 °C
- Reverse polarity and short-circuit protection
- Communication via SSI interface with Sin/Cos signals
- Low power consumption of 0.7 W
- High resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK AFM60S-SEKA004096 safety rotary encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and safety integrity.
