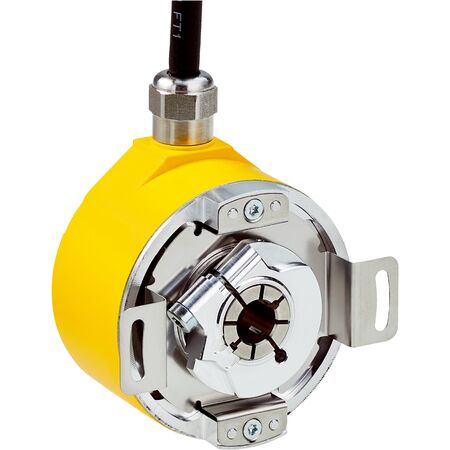

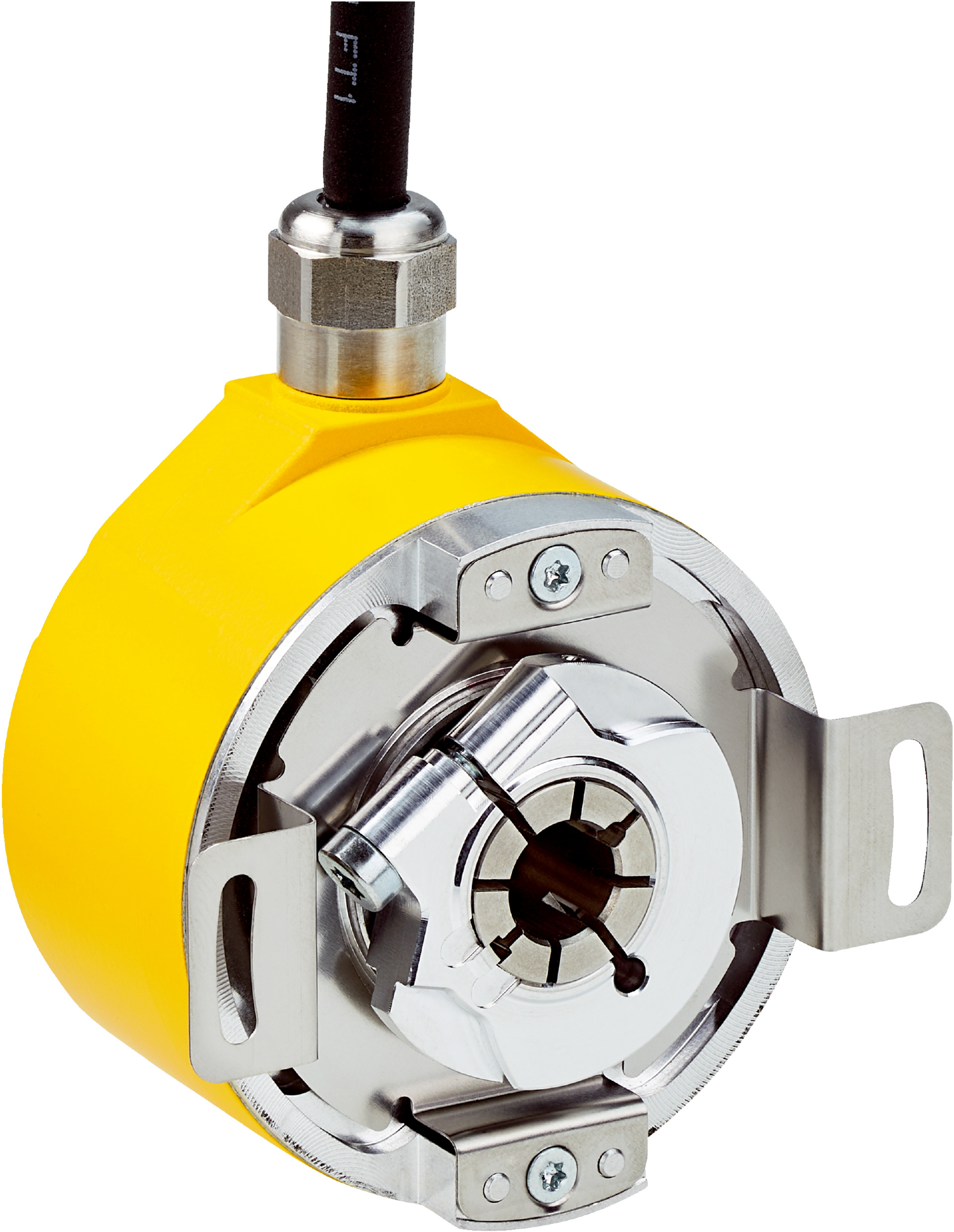

Safety Rotary Encoder AFM60S-TEKK262144 | SIL 3 & PL e Rated | 262,144 Steps | IP65 Protection | by SICK
The Safety Rotary Encoder AFM60S-TEKK262144 is designed for industrial automation, featuring SIL 3 safety integrity and PL e performance levels. With a high resolution of 262,144 steps per revolution and robust IP65-rated housing, it ensures reliable feedback in safety-critical applications. Ideal for robotics and motion control systems, this encoder operates in harsh environments, providing exceptional accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 12-wire, radial, 1.5 m
- Mechanical design: Through hollow shaft with 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Weight: 0.25 kg
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 12 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection rating
- Operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Communication interface SSI with Sin/Cos signals
- Low power consumption of 0.7 W without load
- High repeatability with standard deviation of 0.002°
