Safety Rotary Encoder AFM60S-TGSC262144 | SIL 3 & PL e Certified | 262,144 Steps | IP65 Rated | by SICK

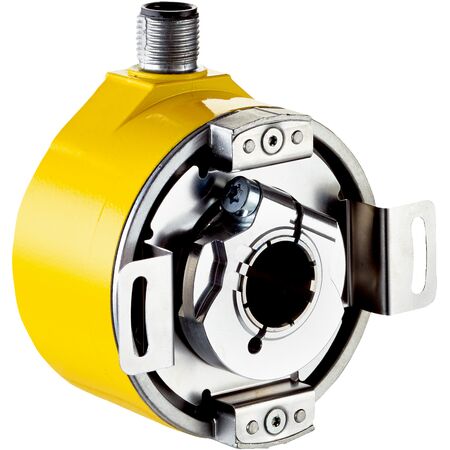

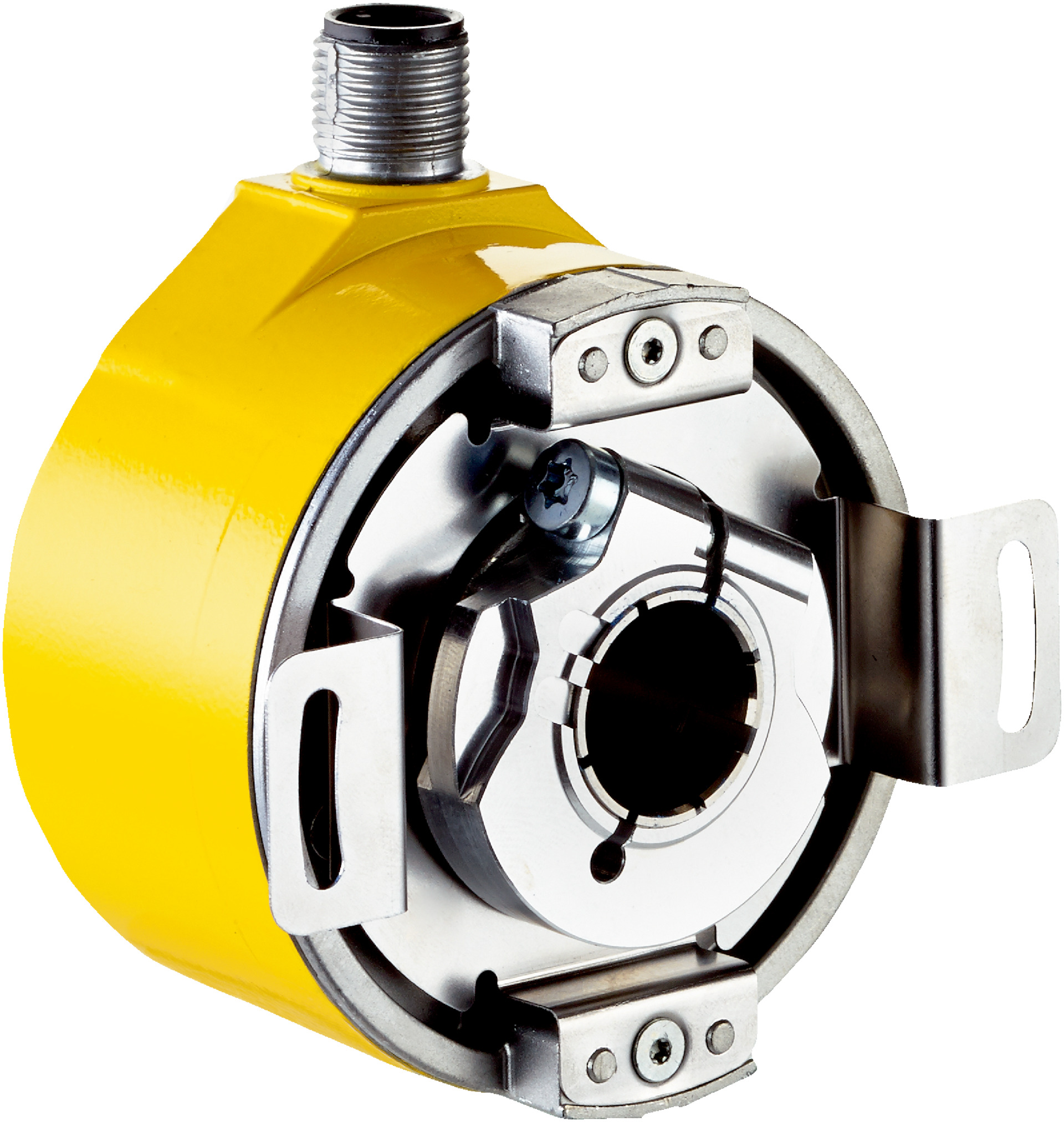

The AFM60S-TGSC262144 safety rotary encoder is designed for industrial automation, featuring SIL 3 and PL e safety certifications. With a high resolution of 262,144 steps per revolution and robust IP65 protection, it ensures reliable performance in safety-critical applications. Ideal for robotics and motion control, this encoder offers a long bearing lifetime and operates efficiently in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Max resolution: 18 bit x 12 bit
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Through hollow shaft with 14 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 14 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection rating
- Communication interfaces SSI and Sin/Cos with fast position forming time < 1 µs
- Wide operating temperature range from -30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and control systems
- Safety-related motion control applications
- Robotics and machinery requiring SIL 3 and PL e safety standards
- Position and speed measurement in harsh environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60S-TGSC262144 safety rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
