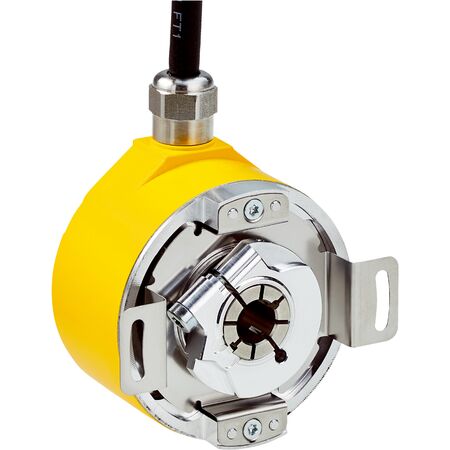

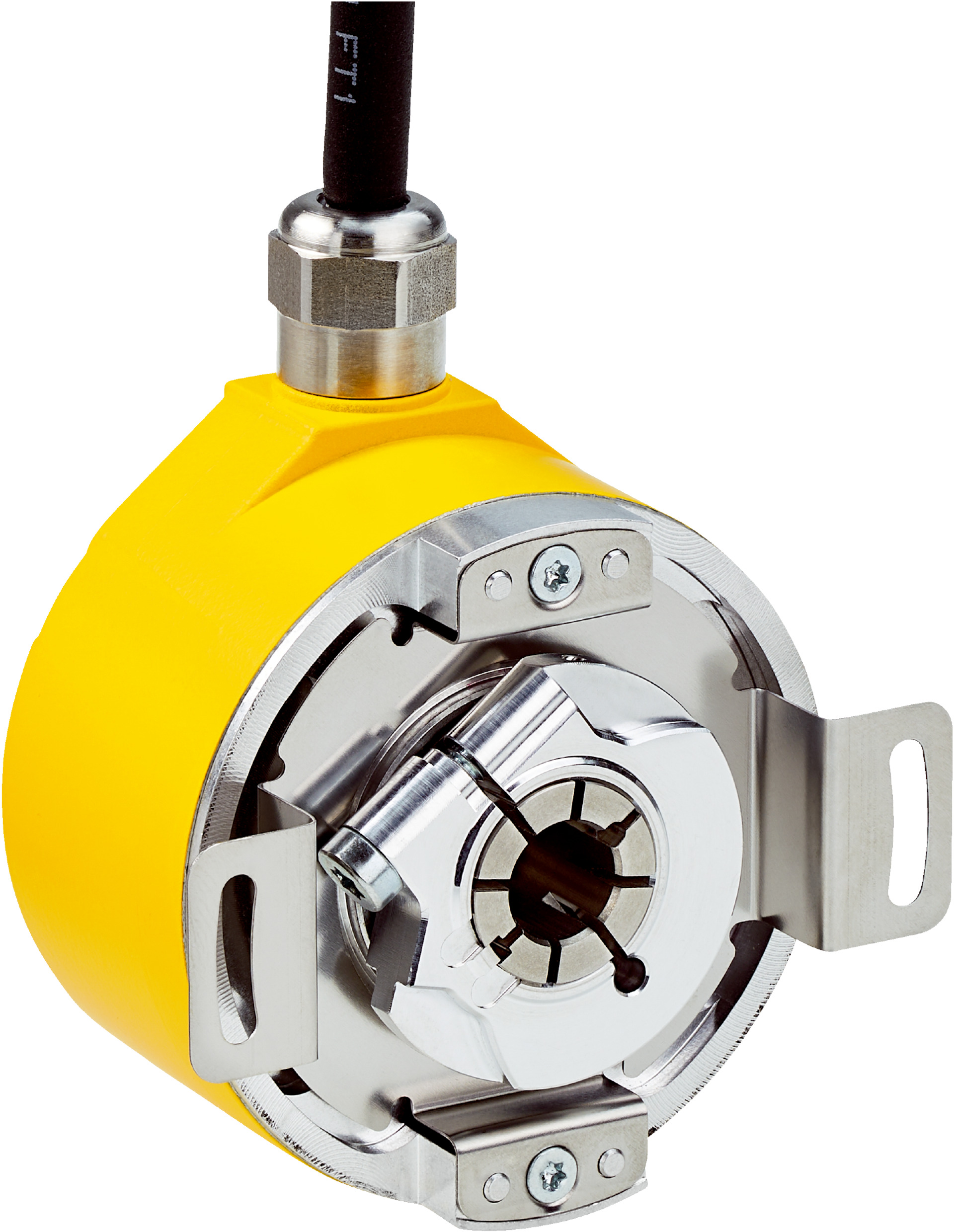

Safety Rotary Encoder AFM60S-THSN262144 | SIL 3 & PL e Certified | High Resolution 262,144 Steps | by SICK
The Safety Rotary Encoder AFM60S-THSN262144 is designed for industrial automation and safety-related motion control applications. With a SIL 3 safety integrity level and a performance level of PL e, it ensures high reliability and precision with 262,144 steps per revolution. Its robust aluminum housing and IP65 rating make it ideal for harsh environments, while the through hollow shaft design allows for easy integration into various systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- PFH: 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Number of revolutions: 4,096 (12 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 12-wire, radial, 10 m
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm with feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 15 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 enclosure rating
- Wide operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication interface SSI with Sin/Cos signals
- Low power consumption of 0.7 W
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
