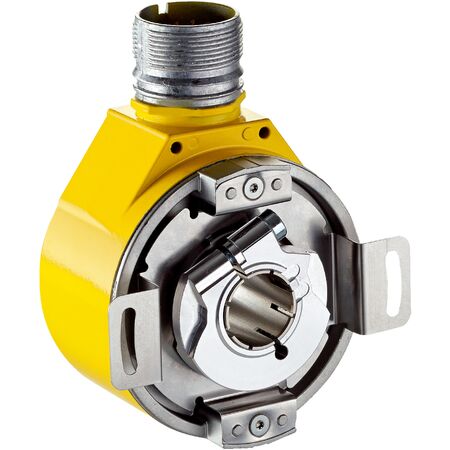

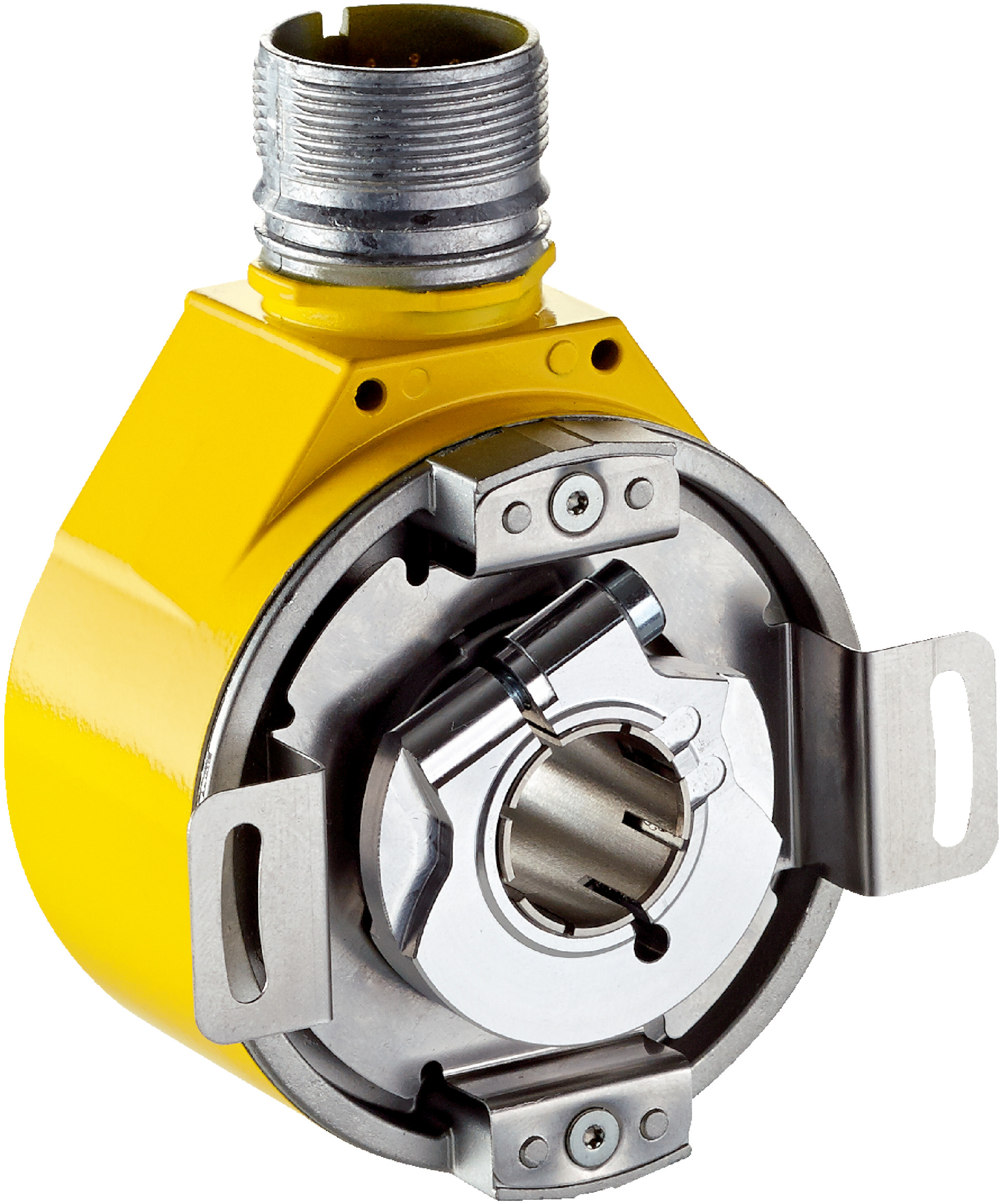

Safety Rotary Encoder AFS60S-TBSA262144 | SIL 3 & PL e Rated | 262,144 Steps | IP65 Enclosure | by SICK
The AFS60S-TBSA262144 safety rotary encoder is designed for industrial automation and safety systems, featuring a SIL 3 safety integrity level and a high resolution of 262,144 steps per revolution. With a robust aluminum die cast housing and an IP65 enclosure rating, it ensures reliable performance in hazardous environments, making it ideal for robotics, machine safety monitoring, and position feedback applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C, 1.8 x 10^-8 at 80 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Through hollow shaft with 8 mm diameter and feather key groove
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Through hollow shaft design with 8 mm shaft diameter and feather key groove
- Robust aluminum die cast housing with IP65 enclosure rating
- Wide operating temperature range from -30 °C to +95 °C
- Short-circuit and reverse polarity protection
- Communication interfaces SSI and Sin/Cos with fast position forming time < 1 µs
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation and safety systems
- Robotics and motion control
- Machine safety monitoring
- Position and speed feedback in hazardous environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W improves energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
