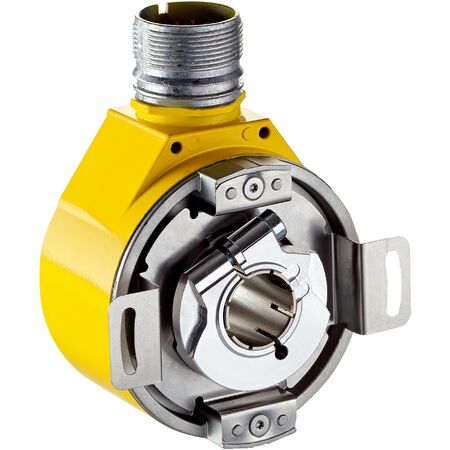

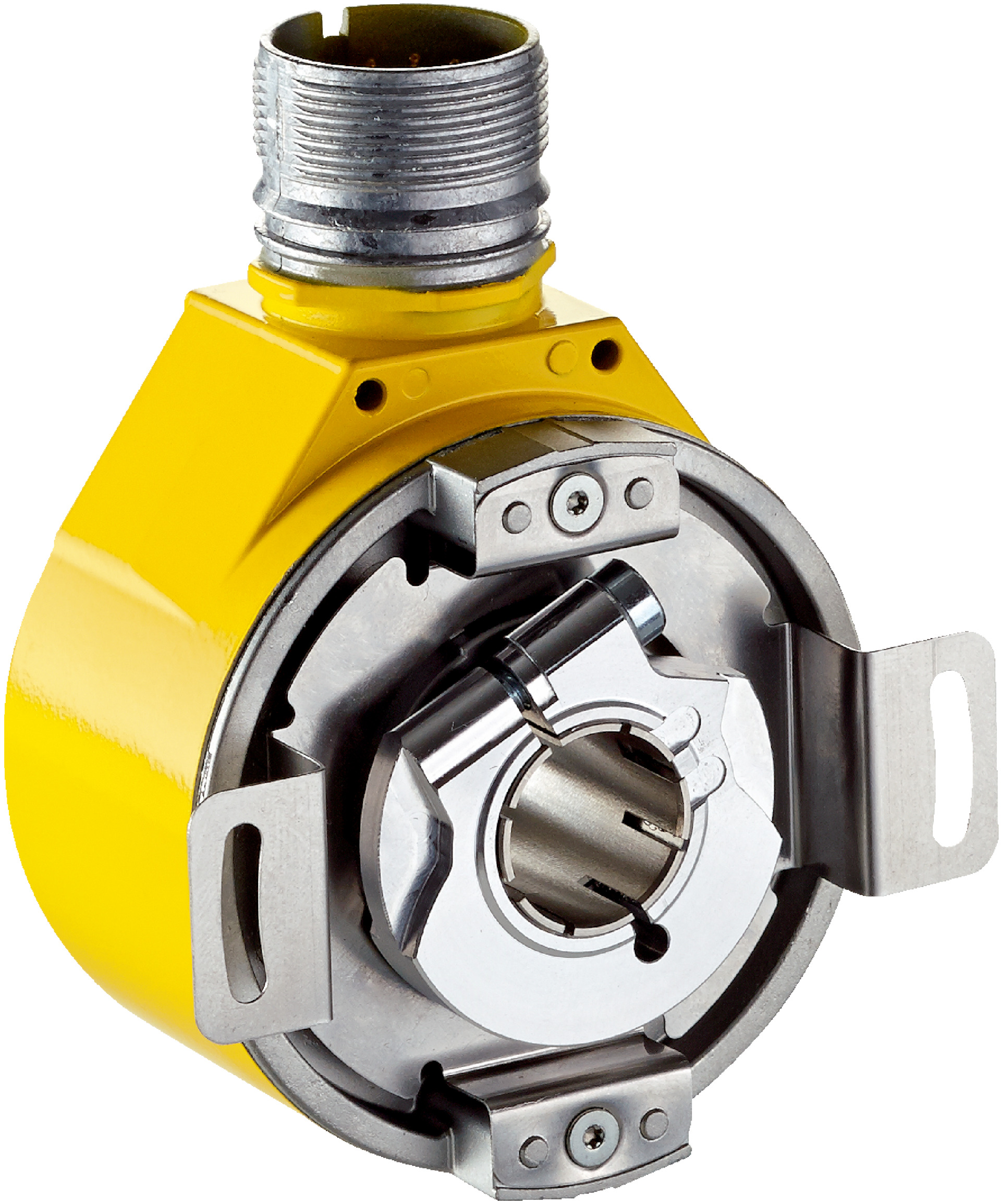

Safety Rotary Encoder AFS60S-TGKA262144 | SIL 3 & PL e Rated | 262,144 Steps | IP65 Enclosure | by SICK
The AFS60S-TGKA262144 safety rotary encoder delivers high precision with 262,144 steps per revolution and meets SIL 3 safety standards. Designed for industrial automation and safety-related motion control, it features a robust stainless steel shaft and an IP65 rated enclosure for protection against dust and water. Ideal for applications requiring reliable feedback in hazardous environments, this encoder ensures optimal performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years (EN ISO 13849-1)
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Max resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 seconds
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Through hollow shaft with 14 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +95 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 262,144 steps per revolution (18 bit)
- Robust through hollow shaft design with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast position forming time less than 1 µs
- Communication via SSI and Sin/Cos interfaces
- Operating temperature range from -30 °C to +95 °C
- Low operating torque ≤ 0.6 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level feedback
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed monitoring in hazardous environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60S-TGKA262144 safety rotary encoder is available for immediate purchase, ideal for industrial safety and automation applications requiring high reliability and precision.
