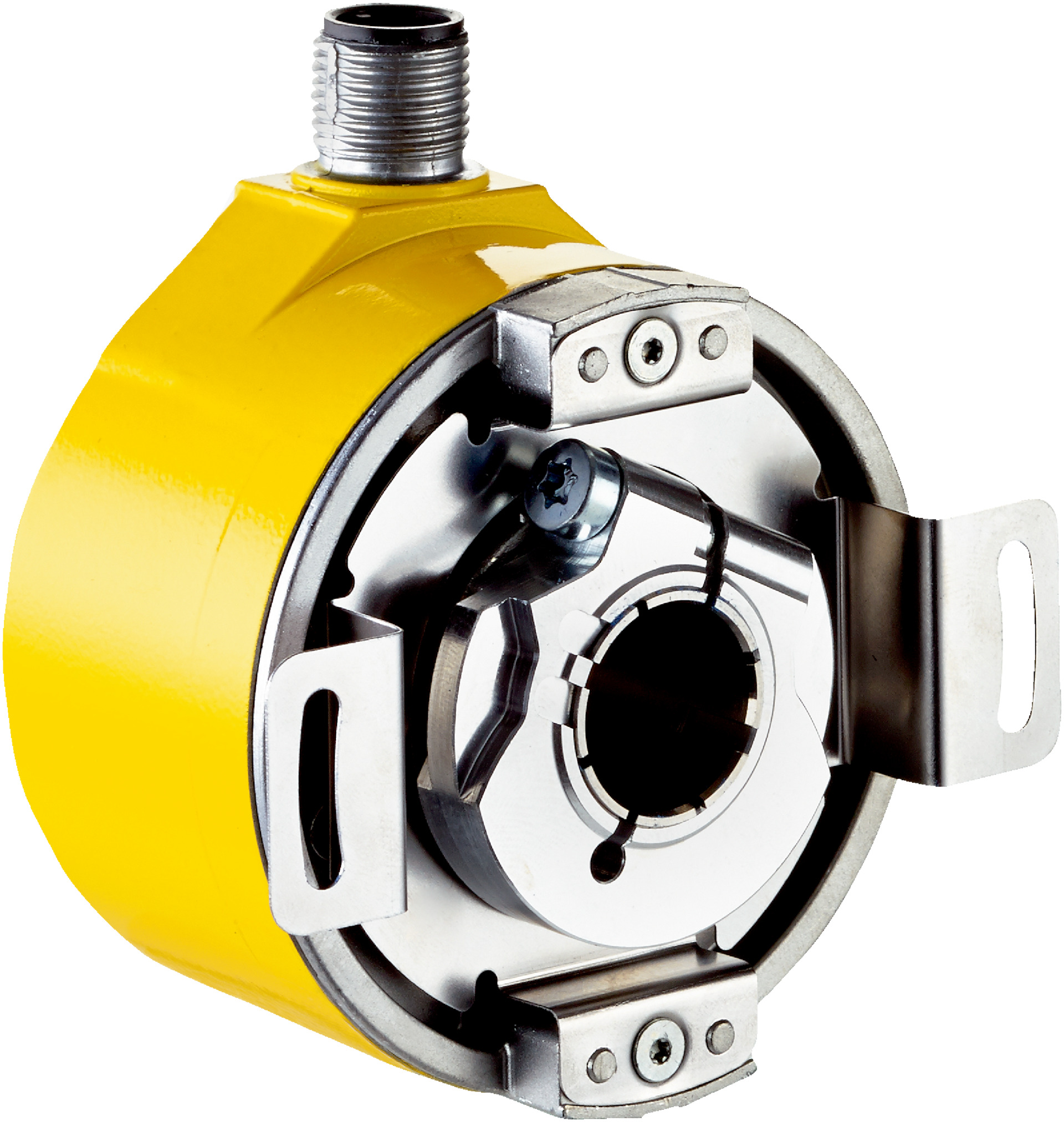

Safety Rotary Encoder SIL 3 | High Resolution 4096 Steps | IP65 Protection | by SICK
The Safety Rotary Encoder SIL 3 is designed for industrial automation, featuring a high resolution of 4,096 steps per revolution and robust IP65 protection. Ideal for safety-related motion control systems, this encoder ensures reliable performance in hazardous environments, with a wide operating temperature range from -30 °C to +85 °C and low power consumption of just 0.7 W.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level: PL e (EN ISO 13849-1)
- Category: 3 and 4 (EN ISO 13849-1)
- Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40 °C
- Mission time: 20 years
- Safety-related accuracy: 0.09° category 3, 0.35° category 4
- Number of steps per revolution: 4,096 (12 bit)
- Number of revolutions: 4,096 (12 bit)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096)
- Error limits G: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos
- Initialization time: 2 s
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 100 kHz to ≤ 1 MHz
- Supply voltage: 4.5 to 30 V
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 12-pin, radial
- Mechanical design: Through hollow shaft with 12 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum die cast
- Operating temperature range: -30 °C to +85 °C
- Enclosure rating: IP65
- Operating speed: ≤ 6,000 min⁻¹
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
- Performance level PL e (EN ISO 13849-1)
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- Through hollow shaft design with 12 mm diameter and feather key groove
- Robust aluminum die cast housing with IP65 protection
- Operating temperature range from -30 °C to +85 °C
- Short-circuit and reverse polarity protection
- Communication interface SSI with Sin/Cos signals
- Low power consumption of 0.7 W
- High repeatability with standard deviation of 0.002°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation requiring high safety integrity level
- Safety-related motion control systems
- Robotics and machinery with safety performance requirements
- Position and speed measurement in hazardous environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60S-TEKC004096 Safety Rotary Encoder is available for immediate purchase, ideal for industrial safety and automation applications.
