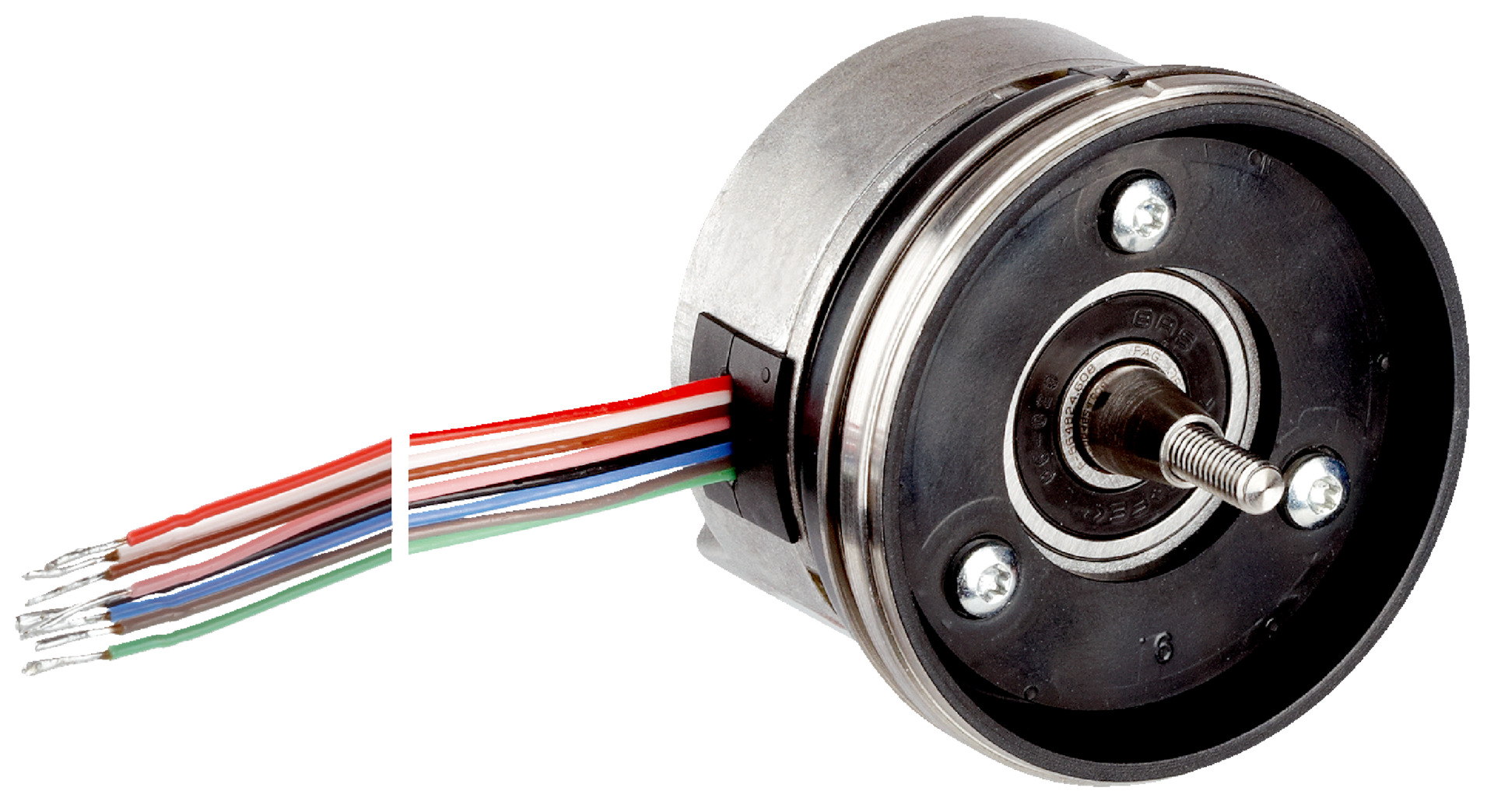

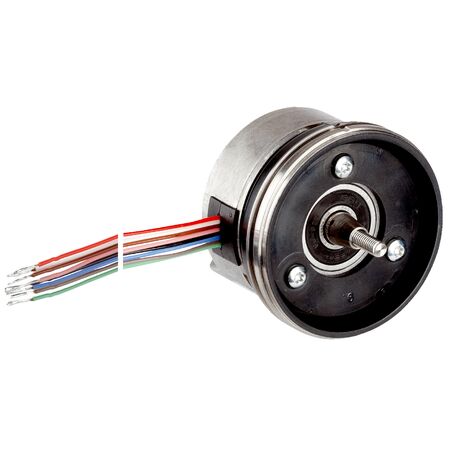

Safety Rotary Encoder SRS50S-HGV0-K22 | SIL 2 & PL d Rated | 1,024 Sine/Cosine Periods | IP40 Enclosure | by SICK
The Safety Rotary Encoder SRS50S-HGV0-K22 is designed for industrial automation, providing precise position feedback with SIL 2 and PL d compliance. With a high resolution of 1,024 sine/cosine periods per revolution and an operating speed of up to 12,000 min⁻¹, it ensures reliable performance in safety-critical applications. Its robust design and IP40 enclosure make it ideal for harsh environments, while the low operating torque enhances efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Safety Rotary Encoder SRS50S-HGV0-K22 | SIL 2 & PL d Rated | 1,024 Sine/Cosine Periods | IP40 Enclosure | by SICK
Brand: SICK
SKU: 1051800
Alternatively Known As: Safety rotary encoder, SIL 2 rotary encoder, HIPERFACE encoder, industrial position encoder
Technical Specifications
- Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Sine/cosine periods per revolution: 1,024
- Total steps: 32,768
- Measuring step: 0.3″ with 12-bit interpolation
- Integral non-linearity: ±45″ typical
- Differential non-linearity: ±7″
- Operating speed: ≤6,000 min⁻¹ for absolute position, max 12,000 min⁻¹
- Memory area: 1,792 Byte
- System accuracy: ±52″
- Code type: Binary, increasing clockwise rotation
- Communication interface: HIPERFACE®
- Connection: 8-wire radial cable, 2 m length
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 80 mA
- Output frequency for sine/cosine signals: ≤200 kHz
- Shaft: Tapered shaft
- Flange type: Resolver support
- Moment of inertia: 10 gcm²
- Operating torque: 0.2 Ncm, start-up torque +0.4 Ncm
- Permissible shaft movement: radial ±0.6 mm, axial ±0.95 mm
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature: -30 °C to +115 °C
- Storage temperature: -40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 10 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP40 with mating plug
- Operating altitude: up to 2,000 m
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Safety integrity level SIL 2 (IEC 61508) and SILCL2 (IEC 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- High resolution with 1,024 sine/cosine periods per revolution and 32,768 total steps
- Operating speed up to 6,000 min⁻¹ for absolute position and 12,000 min⁻¹ max speed
- Binary code output via HIPERFACE® communication interface
- Operating temperature range from -30 °C to +115 °C
- IP40 enclosure rating with mating plug inserted
- Low operating torque of 0.2 Ncm and start-up torque of +0.4 Ncm
- Robust mechanical design with tapered shaft and resolver support flange
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related control systems and electrical wiring standards to ensure compliance with SIL 2 and PL d requirements.
Applications
- Industrial automation for precise position feedback
- Safety-related machinery control requiring SIL 2 and PL d compliance
- High-speed rotary motion measurement up to 12,000 min⁻¹
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Low power consumption with 80 mA current draw
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SRS50S-HGV0-K22 safety rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
